Adams Driveshaft Extreme Duty Series Front 1310 CV Driveshaft with Solid U-Joints and Pinion Yoke (07-18 Jeep Wrangler JK)

Item J125427
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$629.95 (each)

FREE Shipping Market Price $699.99 You Save 10% ($70.04) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Video Review & Installation

      Merideth: Hey, guys. So, today, we're checking out the Adams Extreme Duty Series Front 1310 CV Driveshaft with the Solid U-joints and the Pinion Yoke, fitting all 2007 to 2018 JK Wranglers. Now, wear and tear on your Jeep is very normal, but can definitely be accelerated by certain things, including a lift, larger tires, larger wheels, and just heavier components in general.Now, one of the main components that usually is the first one to wear out is going to be your driveshafts. Now, this option by Adams Driveshaft is a high-quality driveshaft option that will replace your factory one with one that will last.Now, this kit, in particular, will be a perfect replacement if your current driveshaft is showing a lot of wear, whether you didn't put exhaust spacers on when you added a lift, and you burnt the driveshaft boot on your factory one, or the factory Rzeppa joint is showing some wear and tear, and maybe that boot is ripped and you can see grease coming out, or see the bearing. At that point, it would definitely need to be replaced, and this option by Adams is, again, going to be a high-quality solution for that.The 1310 extreme duty front driveshaft will accommodate up to 4.5 inches of lift, and up to 37-inch tires, allowing a lot more movement for the axle, a flattened pinion angle, and a whole ton of strength over the factory components. Now, not to mention, this will have the ability to maintenance it, unlike the factory driveshaft.Since it does include spring clips on the U-joint, as you can see over on the side here, you will be able to pop them out if you need to, if they do get worn down, if you do a lot of off-roading, if you're kind of really beating your Jeep up. If you need to replace them, you can definitely do so. The factory one, you weren't able to replace any of the components, but because these do have the spring clip, you will be able to pop those out if need be.Diving a little bit deeper into the construction, this is going to be made out of a 2-inch 0.12-wall DOM tubing that is double the strength of the factory tubing, and is going to clear the exhaust and the crossmember, eliminating any damage to the driveshaft at full droop, according to Adams.Now, this will also include a 1310 U-joint and yoke that will offer a lot of strength, considering that they are non-greaseable. So, usually, a greaseable U-joint, they have a hole drilled in the center, which can take away from the structural integrity of the U-joint. However, in that case, they are going to be able to be maintenanced.However, this, there's no option for that grease fitting, but it does make it a lot stronger when you are thinking about U-joints. And that's really the main difference between the extreme duty and the heavy duty offered by Adams. The extreme duty is not going to have greaseable U-joints, and it is going to give a little bit more strength. So, if you are concerned about just that much more strength for your driveshaft, then the extreme duty is going to be up your alley.Now, on the topic of maintenance, this will also have shaft splines, as you can see here. This is kind of compressed right now, but when it's fully out, it will allow grease to be put in there, to make sure that all the components are moving smoothly. And that this is going to have a very long lifespan in comparison to other options that are not really going to have this spline there.Now, this kit will also come with everything that you need in order to install it. It'll come with the driveshaft. You're gonna have a yoke for either side. And you are going to get the grade 10 CV bolts, which are shortened on the head. And that is going to be for easier install. I personally like that. It makes it a little bit easier when you are underneath the Jeep and torquing everything down.When it comes to comparing this kit to others in the category, it will be right in the middle when it comes to pricing, at right around $600. Now, what I will say is that Adams is one of the best in the business when it comes to the quality of their driveshafts, and they do back that with a limited lifetime warranty if you twist the tube or you break a weld. So, even right in that price point, that just makes it that much more worth it.However, if we take a look at those other options, especially within the Adams Driveshaft brand, you will see a number of different choices that'll include different features. Now, there is a more expensive version of this driveshaft that's labeled the 1350. Now, those are going to be a bit stronger than this choice, and are usually going to be for people who are doing some serious off-roading, and will have a 6-inch lift kit at max, and will also have a 42-inch tire at max.So, if you're not really in that realm, if you're not looking to get to that capacity, as far as wheel and tires and your lift kit is concerned, this one right here is still going to be very strong. It's not going to be as strong as a 1350, but this is going to save you a couple bucks, and still provide a lot of quality within the construction.Now, this does come with the yokes, and is the extreme duty. Like I mentioned, there are two different options in the 1310 category, as well as the 1350 category. They're going to be the extreme duty and the heavy duty. That really just comes down to whether the U-joints themselves are going to be greaseable or non-greaseable.So, the extreme duty, that is going to be this one here, that has a non-greaseable U-joint. That is going to be a little bit more expensive. And, of course, if you do want the pinion yoke, and the yokes in general, that is going to be a little bit more expensive. Well, not too much more expensive, so, in my personal opinion, I think if you're doing a little bit of maintenance on your Jeep, and you just wanna take it just that much further and replace a couple more components, this is definitely worth that extra couple of bucks.Now, all in all, again, if you're looking at an Adams Driveshaft, you don't wanna go over the top with a 1350, but you do want the stronger version of the 1310, and want the replacement flanges, this is definitely going to be your choice.Now, when it comes to getting this thing on your Jeep, driveshafts are generally easy when it comes to the install process. However, you will need a little bit of mechanical know-how in order to get this onto your Wrangler. So I am gonna give this a two out of three wrenches on the difficulty meter, especially because this does come with the yokes, as well as the driveshaft itself.Now, this project should take you about two hours, and will definitely require some hand tools to get the job done. Those are going to include a ratchet, some extensions, a standard socket set, ranging from 8 millimeters up to 15 millimeters, a small chisel or a flat-head, and a mallet in order to get the factory driveshaft away from the factory yoke.Now, you may also need a yoke puller with the accommodating socket size. If you're having a tough time hammering the yoke off, it might be a little bit easier just to start with the yoke puller, just because it is, again, going to make your life a lot easier. You don't have to fight the yoke from coming off, and you don't risk anything when it comes to damaging other components in your driveline.Now, a lot of people don't have one of those specialty driveline tools on hand, so you should be able to find one at your local auto parts store. Now, you also wanna have some grease and some Loctite. Loctite is usually included in the kit, but you definitely wanna make sure that the shaft here on the splines is greased. And, of course, you're also going to need a torque wrench to torque everything down to factory spec.Now, speaking of the install, one of our customers here at ExtremeTerrain has completed this install on his JK, and is going to walk you through all of those steps of getting this onto your Jeep. So, enough from my review here. Let's hop into the install.Man: I'm going to start on the rear of the driveline with an impact, some extensions, and a 5/16-millimeter socket. And go all the way around to each of the eight bolts. Okay. With the eight bolts removed, we'll move on to the front. All right. I've now moved to the front of the driveline, and with a 15-millimeter socket, an extension, and an impact, I'm gonna remove the four bolts that hold it on.All Right. The front has broken loose, and we should be able to just pull down here, and just gonna tap it loose. All right. It was being little stubborn, so I went ahead and grabbed a hammer and a couple other tools to try to get it off. So we're gonna see what happens here.Okay. So, I guess the cover does not need to be removed. So, using a pointed little chisel here and a hammer, I'm gonna stick it in these little holes that are around it and see if I can beat it loose. There it goes. Okay. I was just trying to remove the wrong part.Just take a flat-head and try to pry it out. There it goes. And just like that, the driveline's free and you can take it out of the vehicle. All right. Now I'm going to use a 1-1/8 socket and an impact to break the nut loose on the front diff pinion yoke.Okay. Take a hammer and see if I can break it loose. All right. So, it wouldn't come off with a hammer, so I ended up getting a puller, and I got it mocked up on here. And then I got the socket for the puller on the impact, to just spin it off. So, let's see if it works. There we go. All right. I got the new pinion yoke from Adams, and I'm going to slide it up and attempt to line up the teeth.Tap it on with a rubber mallet. Reuse the old nut, get it started on here. And then, with the same 1-1/8 socket and impact, tighten it the majority of the way down. And then I'm gonna move on to the other side, and later, I'll torque this.All right. And one thing you're gonna wanna do is remove the O-ring from the old one, and you're gonna place it inside the new one like this. And it's gonna look just like that. And then we're gonna go ahead and put it on. All right. So, we line it up with the shaft, and we slide it on just like that. And then we're gonna take some RTV, put it on the nut. And just run a bead around, and thread it on. All right. We're gonna get it most of the way on, and then we'll move on to torquing it. Okay. Now I'm gonna go ahead and torque both of the nuts to 160 foot-pounds. And you're gonna just wait for the click with the torque wrench. Okay. There's the back one. And there's the front one.All right. Now I'm gonna install the transfer case side of the driveline. So I'm gonna move the driveline up into place here, get it lined up like so. And I applied blue Loctite to my threads of each of my four bolts for this, and I'll just slide them in, and start them by hand here. Rotate to the other side. All right. Then I've got an 8-millimeter socket.All right. Now that they're all snugged up, they're supposed to be torqued to 18 foot-pounds. I do not have a small enough torque wrench to fit in this space, so I'm just going to do it by hand. All right. They're all torqued, and we're gonna move on to the front. All right. We're now going to remove the tape from the front U-joint, and move it in place with the front pinion yoke here. You have to extend it to meet up. Then you take these U-bolts, you put Loctite on them, and line them up with the holes, like so. And then, each side gets a lock washer and a lock nut. Okay. And same thing on the other side.There we go. Once those are all started, takes a 12-millimeter socket or wrench, and it's looking like a socket won't fit, so try a wrench. All right. First one's snugged up. There we go. All right. Again, they're supposed to be torqued, but I am not able to do so with my large torque wrench, so I'm gonna do it by hand to 18 foot-pounds.Merideth: So, that is going to wrap it up for my review and install on the Adams Extreme Duty Series 1310 CV Driveshaft with the Solid U-joints and Pinion Yoke, fitting all 2007 to 2018 JK Wranglers. For more reviews and installs just like this, always keep it right here at extremeterrain.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Front Driveshaft

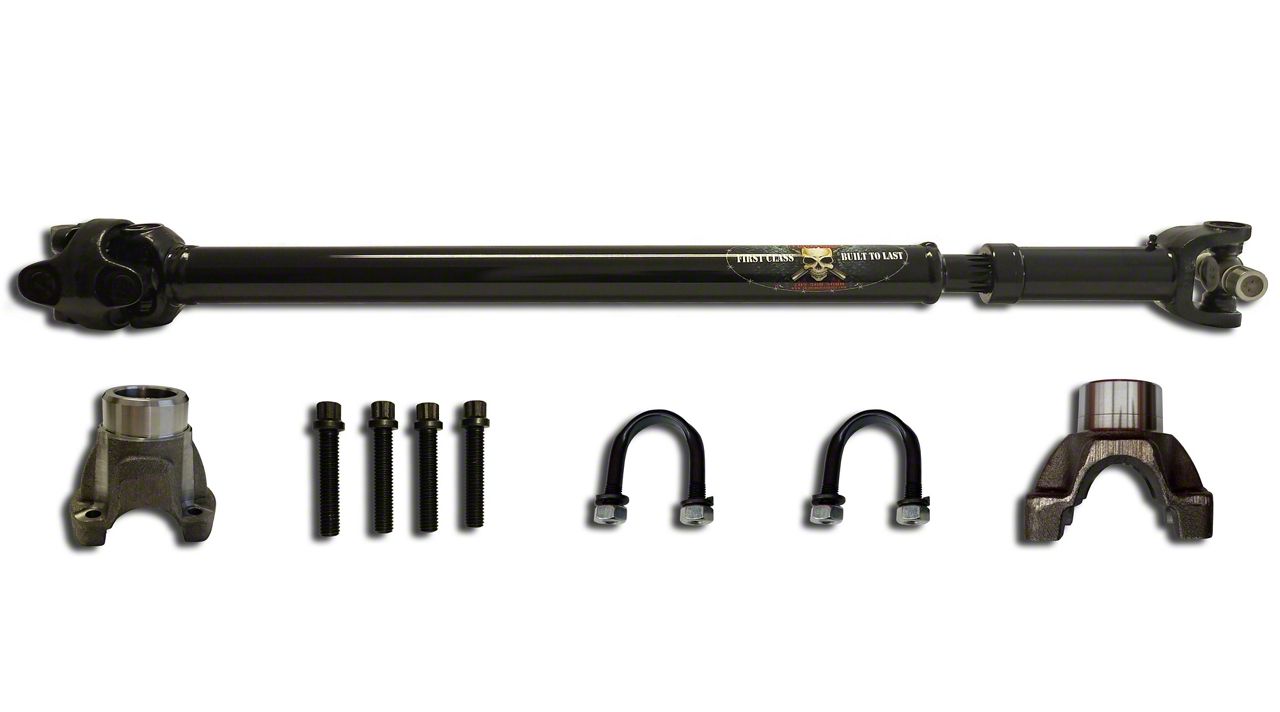

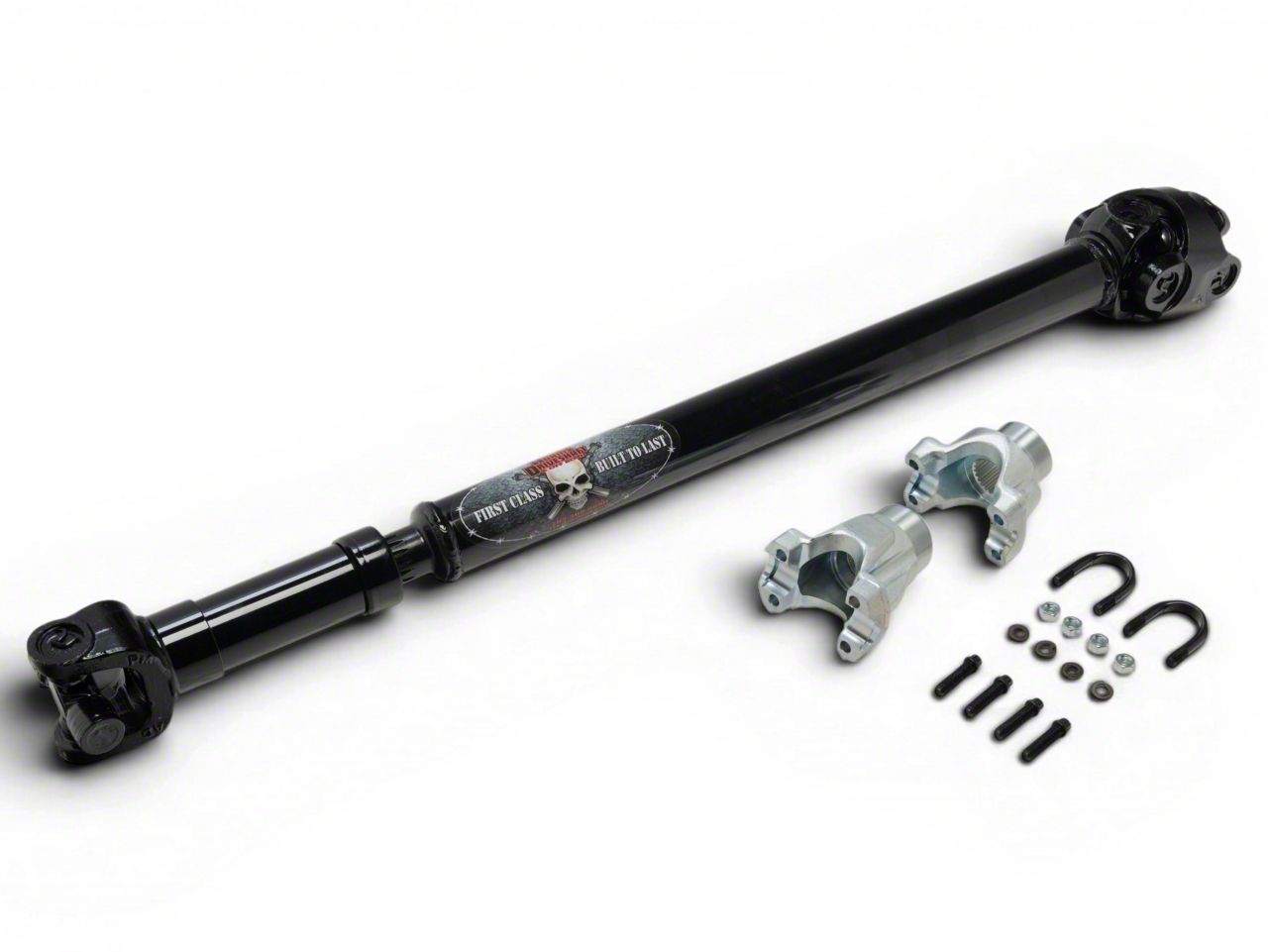

      • Includes U-Bolts, CV Bolts, T-Case Yoke, and a Pinion Yoke
      • Compatible with Wranglers up to 4 1/2-Inch Lift
      • Accommodates up to 37-Inch Tires
      • Two-Inch .120-wall Tubing
      • Made in the U.S.A.
      • Limited Lifetime Warranty
      • Medium Difficulty Installation
      • Compatible with the 2007-2018 Jeep Wrangler JK

      Description

      1310 Extreme Duty Driveshaft. For an impressive driveline upgrade for your Wrangler, look no further than the Adams Driveshaft Extreme Duty Front 1310 Solid CV Driveshaft with Pinion Yoke. It is compatible with Wranglers up to 4 1/2-inch lift with up to 37-inch tires without causing any damage to your drivetrain.

      Bring on the Punishment. This custom driveline piece is manufactured using 2 inch, .120-wall tubing to withstand the harsh punishment on all types of terrain. This front driveshaft is proudly made in the U.S.A.

      Warranty. This product is protected by a limited lifetime warranty, which protects against defects in materials and workmanship from the manufacturer. The manufacturer accepts no responsibility for lack of maintenance or improper use.

      Installation. It takes no more than 2 hours to install this driveshaft if you have moderate-to- expert level mechanical skills.

      Application. The Adams Driveshaft Extreme Duty Front 1310 Solid CV Driveshaft with Pinion Yoke is compatible with the 2007-2018 Jeep Wrangler JK.

      Fitment:

      Adams Driveshaft ASDJK-1310F-S2Y

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Front Driveshaft
      • Mounting Hardware
