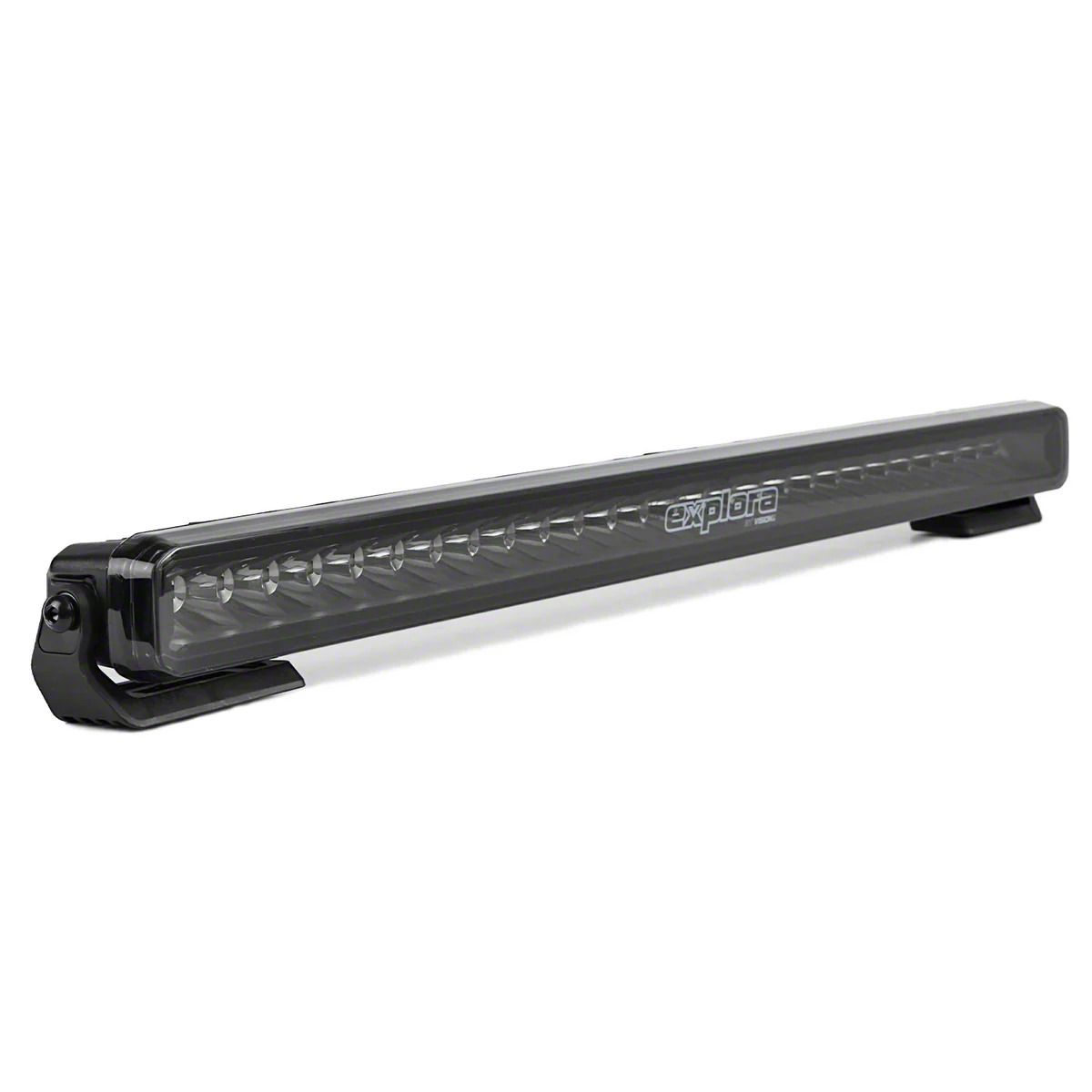

Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL; Flood/Spot Combo Beam (Universal; Some Adaptation May Be Required)

Item J257090
Product Image
61 Reviews of Vision X
Our Price

$399.00

Military, Medical & First Responders $19.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Explora Series Lights Were Purpose-Built To Deliver Modern Styling In A Completely Customizable Platform Giving Everyday Drivers Unprecedented Versatility At An Affordable Price Point
        • _x000D_
      • Switchback Dual-Color DRLs, Multi-Color Lens Options, And Multi-Color Trim Rings Provide Unlimited Customization That Are Guaranteed To Match Your Build
        • _x000D_
      • Available In 10, 20, & 30 Inch Lengths In Both Single And Double Row Profiles
        • _x000D_
      • Next-Generation Circuit Design With A 2-Position DRL That Can Be Run In White, Amber, Or Switch-Back Mode Where The White DRL Switches To Amber And Flashes In Sync With Factory Turn Signal
        • _x000D_
      • Internal Mosfet Eliminates The Need For External Relays For Easy Wiring With Or Without Plug-&-Play Wiring Harnesses
        • _x000D_
      • Interchangeable Snap-On Lens Covers And Silicone Trim Rings Enable Customization
        • _x000D_
      • Lenses Available In Yellow, Clear, Smoke, Or Black-Out
        • _x000D_
      • Trim Rings Available In Red, Orange, Yellow, Green, Blue, & Pink
        • _x000D_
      • X-Drive LEDs Produce 9,500 Lumens With Ultra-Reflective Honey Comb Style Optic Backed By Eight High-Output LEDs For Powerful Driving Beam
        • _x000D_
      • Dual-Color DRL Provides Crisp White Output Or Amber To Match OEM Marker Light
        • _x000D_
      • Switch-Back Technology Allows Amber DRL To Flash In Sync With Turn Signals
        • _x000D_
      • Swappable Lens System Comes Equipped With Smoked Lens That Can Be Swapped To Clear Or Selective Yellow
        • _x000D_
      • Custom Trim Colors With Colored Rubber Trim Rings Surrounding Lens Outer Portion
        • _x000D_
      • Internal Relay With Modular Switching Eliminates External Relay Need; Modular Wiring Harness For Trigger Wire Or Universal Switch Activation
        • _x000D_
      • LEDs: CREE XTE (5W Each)
        • _x000D_
      • Watts: 140W
        • _x000D_
      • Amp Draw: 11.67A
        • _x000D_
      • Raw Lumens: 9,500
        • _x000D_
      • Beam Distance: 1,771 Feet (540 Meters)
        • _x000D_
      • Beam Width: 197 Feet (60 Meters)
        • _x000D_
      • Connector: 3-Pin DT
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Operating Voltage: 9-32 VDC
        • _x000D_
      • Pod Size: 30.50 Inch Round X 2.52 Inch Deep
        • _x000D_
      • Pod Weight: 4.5 Pounds
        • _x000D_
      • IP Rating: IP68 & IP69K Waterproof, Submersible & High-Pressure Spray Resistant
        • _x000D_
      • EMC Compliance: CISPR 25, CE, UKCA
        • _x000D_
      • Includes Explora Driving Light Bar, Smoked Lens Cover, Black Zinc Mounting Hardware, Single-Light Modular Wiring Harness
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced LED Lighting. The Vision X 30-Inch Explora Single Row LED Light Bar with Dual-Color DRL and Flood/Spot Combo Beam delivers superior illumination with customizable styling for everyday and off-road vehicles. This versatile light bar offers powerful lighting performance with flexible installation options, making it ideal for enhancing vehicle visibility in a variety of environments.

      _x000D__x000D_

      Construction and Appearance. Built with durable materials and featuring a waterproof IP68 and IP69K-rated housing, the light bar withstands rugged conditions including submersion and high-pressure spray. It includes an ultra-reflective honeycomb optic and eight high-output CREE XTE LEDs within a powder-coated enclosure, complemented by interchangeable lens covers and multi-color silicone trim rings for tailored aesthetics.

      _x000D__x000D_

      Installation. Designed for easy installation with an internal mosfet relay system eliminating the need for external relays, this light bar can be mounted with minimal drilling or modification. The modular wiring harness supports activation via trigger wire or universal switch, streamlining setup for both professional and enthusiast installers.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, ensuring reliability and support throughout the product’s lifespan.

      _x000D__x000D_

      Application. This light bar is a universal fit and may require some adaptation for certain vehicles, allowing broad compatibility across many automotive applications.

      Vision X EX-LB28S
