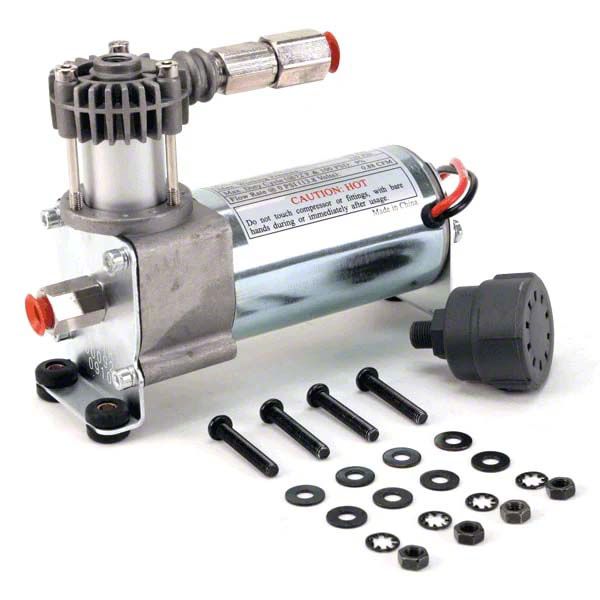

Viair 92C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)
Item TU44876
Our Price
$115.95
Military, Medical & First Responders
$5.80 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Light Duty Air Compressor For Smaller Pneumatic Requirements _x000D_
- Designed To Fill Tanks No Larger Than 1 Gallon _x000D_
- Features A Removable Air Filter _x000D_
- Includes Check Valve, Vibration Isolators, And Mounting Hardware _x000D_
- ISO 9001 Quality Standard _x000D_
- 12V And 24V Compatible _x000D_
- Oil-Less And Direct-Drive Design _x000D_
- Aims For 0% Failure Rate With Unmatched Testing _x000D_
- CFM: 1.03 At 0 PSI _x000D_
- Permanent Magnetic Motor _x000D_
- Duty Cycle: 9% At 100 PSI _x000D_
- Max Working Pressure: 120 PSI _x000D_
- Max Air Tank Size: 1.0 Gallon _x000D_
- Max Amp Draw: 10 Amps _x000D_
- Ingress Protection Rating: IP54 _x000D_
- Max Ambient Temperature: 158°F _x000D_
- Min Ambient Temperature: -40°F _x000D_
- Dimensions: 7.6 Inches Long By 2.0 Inches Wide By 4.6 Inches High _x000D_
- Net Weight: 2.45 Pounds _x000D_
- Inrush Current At 0 PSI: 27.6 Amps _x000D_
- Sound Level At 0 PSI: 62.1 Decibels _x000D_
- Includes Installation Instructions _x000D_
- Use Thread Sealant For Installation; Thread Tape Not Recommended _x000D_
- Recommended Torque For 1/8 Inch: 10 To 11 Foot Pounds _x000D_
- Recommended Torque For 1/4 And 3/8 Inch: 16 To 18 Foot Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Pneumatic Solution. The Viair 92C Air Compressor; 120 PSI / 1.03 CFM is a light-duty compressor designed for small pneumatic tasks, ideal for filling air tanks up to one gallon. It delivers reliable air pressure with efficient performance, making it suitable for various automotive and equipment applications requiring compact compressed air solutions.
_x000D_Robust Construction And Finishing. Built with a permanent magnetic motor and oil-less direct-drive mechanism, the compressor features a durable design that meets ISO 9001 standards. It comes with an IP54 rating, ensuring protection against dust and water ingress, and the unit's exterior is designed for rugged use while maintaining a compact profile. The compressor is engineered to operate within ambient temperatures ranging from -40°F to 158°F, supporting diverse environments.
_x000D_Easy Installation. The compressor includes mounting hardware, vibration isolators, a direct-mount air filter assembly, check valve, and installation instructions, allowing for straightforward setup without extensive modifications or drilling in most cases. Use thread sealant for installation; thread tape is not recommended. Recommended torque settings are 10 to 11 foot-pounds for 1/8 inch fittings, and 16 to 18 foot-pounds for 1/4 and 3/8 inch fittings.
_x000D_Application. Fits universally with some adaptation required depending on specific mount configurations and tank fittings.
Viair 00092
