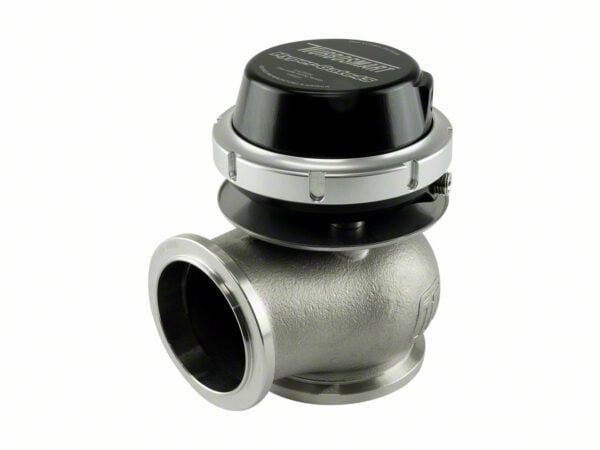

Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black (Universal; Some Adaptation May Be Required)

Item FB28336
Product Image
474 Reviews of Turbosmart
Our Price

$468.89 each

Military, Medical & First Responders $23.44 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Gen4 External Wastegate Unit
        • _x000D_
      • Pre-Fitted With Springs As Per Description
        • _x000D_
      • Gen4 Stainless Steel Valve Seat
        • _x000D_
      • Gen4 V-Band Clamps
        • _x000D_
      • Gen4 Inlet And Outlet Weld Flanges
        • _x000D_
      • Locking Collar Tool
        • _x000D_
      • 1/16” NPT Blanking Plugs
        • _x000D_
      • 1/16” Nipples (5mm)
        • _x000D_
      • Available Spring Pressures From 3 To 26 PSI
        • _x000D_
      • V-Band Inlet And Outlet To Suit 44/46mm Peer Fitment
        • _x000D_
      • Unique Locking Collar Design
        • _x000D_
      • Stainless Steel Cast Body With Aluminium Actuator Housing
        • _x000D_
      • Solid Piece Stainless Steel Valve
        • _x000D_
      • Proprietary High-Temp Silicon Nomex Diaphragm
        • _x000D_
      • Twin 1/16” NPT Reference Ports
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      _x000D__x000D_

      Performance Wastegate. The Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black is a critical component designed to manage and regulate boost pressure in turbocharged engines. It ensures efficient and reliable control of exhaust gases, preventing excessive boost that can damage the engine. This wastegate is ideal for street applications requiring solid performance, durability, and support for various fuel types including pump fuel and E85.

      _x000D__x000D_

      Construction and Appearance. Crafted with a stainless steel cast body and an aluminum actuator housing, the wastegate combines durability with lightweight design. It features a solid stainless steel valve and a proprietary high-temperature silicon Nomex diaphragm for enhanced heat resistance. The unit’s black finish is anodized for protection and aesthetic appeal, though color may fade with prolonged heat exposure without affecting performance.

      _x000D__x000D_

      Installation. Installation requires moderate mechanical skill. The wastegate fits compatible manifolds using V-band clamps, without the need for drilling. The unique locking collar design allows secure spring changes using the supplied locking collar tool, emphasizing ease of maintenance and vibration resistance.

      _x000D__x000D_

      Application. Fits universal setups with some adaptation required. Designed to suit 45mm peer flange orientations, it replaces or upgrades existing external wastegates of similar size and application, accommodating a wide range of turbocharged engines and custom builds.

      Turbosmart TS-0506-1041

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) External Wastegate
      • Mounting Bracket
      • Hardware
      • Instruction Manual
