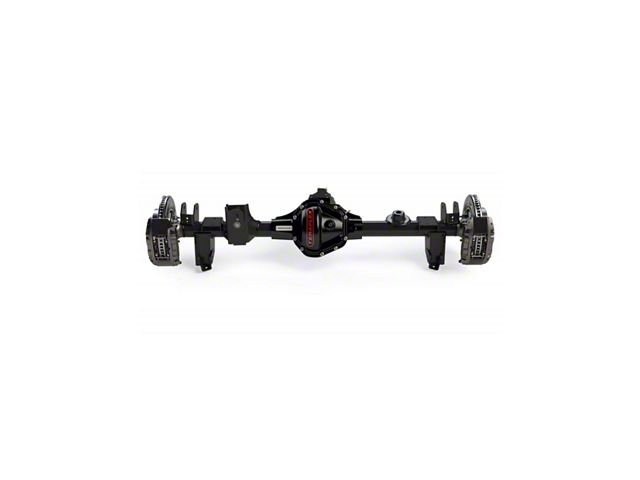

Teraflex CRD60 HD Rear Axle with Semi-Float, ARB Locker and 5.38 Gears for 0 to 6-Inch Lift (18-26 Jeep Wrangler JL)Find parts that fit my vehicle
Item J169570
Our Price
$6,099.99
Military, Medical & First Responders
$305.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A
Features & Specs
- Factory-Style Semi-Float Axle Design
- 68'' Wheel Mounting Surface To Wheel Mounting Surface
- 3.25'' O.D. X 0.375'' Wall DOM Axle Tube For Superior Strength Vs. Weight
- 40-Spline Semi-Float Axle Shafts And Bearings
- Dual 5x5'' And 5x5.5'' Wheel Bolt Pattern
- Fixed Spindle Mount Hub Assembly
- Tera CRD60 Specific High-Pinion Rear Axle Housing Design
- Includes Spicer Super 60 Bearings And Install Kits
- Includes Spicer 1350 Series Pinion Yoke
- HD Bearing Caps Increase Rigidity And Reduce Ring & Pinion Distortion
- Constant Radius Design (CRD) Provides Maximum Ground Clearance Regardless Of Pinion Angle
- Built-In Skimmer Cuts Ring Gear Oil Halo And Forces It Into The Pinion Bearings
- Outer Pinion Bearing Pocket Features A Renewable Oil Reservoir That Sends Cool Oil To The Pinion Bearing
- Oversized Outer Pinion Bearing Handles Increased Torque And High-Load Conditions
- High-Capacity Housing Holds Maximum Amount Of Oil
- Pre-Installed Inner Axle Seals
- Ductile Cast Iron Housing With Increased Rib Gussets
- HD Ductile Iron Differential Cover With Increased Cover Mounting Area
- Integrated Lower Control Arm Skid Plates
- High-Flow Oil Passages
- Reinforced Rear Track Bar Mount With Multiple Mounting Locations
- UV Protected Triple-Stage Powder Coat For Corrosion Resistance
- 1/4''-Thick CNC Laser Cut Axle Brackets For Extreme Strength
- Pre-Installed Upper Control Arm Bushings
- Proper Pinion Angle And Raised Track Bar Bracket For Lifted JL Applications
- Pre-Tapped Hole On Spring Perch For Bump Stop Extensions
- Retains All JL ESP, ABS, And Speedometer Sensor Capability
- 100% Engineered, Designed, And Built In The USA With New Components
- Fits 18-26 Jeep Wrangler JL
| Brand | Teraflex |
| Type | Dana 60 |
| Placement | Rear |
Description
Heavy-Duty Rear Axle Upgrade. The Teraflex CRD60 HD Rear Axle with Semi-Float, ARB Locker and 5.38 Gears for 0 to 6-Inch Lift is a robust axle assembly designed specifically for enhancing the durability and performance of lifted Jeep Wrangler JL models. This rear axle assembly replaces factory axles to provide greater strength and ground clearance, ensuring dependable off-road capability under demanding conditions.
Construction and Appearance. This axle features a high-strength ductile cast iron housing with reinforced rib gussets and built-in skid plates for protection. It utilizes 3.25-inch outer diameter, 0.375-inch wall DOM axle tubes combined with 40-spline semi-float shafts for optimal strength-to-weight ratio. The assembly is finished with a UV-protected triple-stage powder coat that guards against corrosion while maintaining a smooth, professional appearance.
Installation. Installation requires mechanical expertise and approximately 6 to 8 hours depending on configuration. No drilling is necessary as it is designed as a direct bolt-on replacement for the specified vehicle fitment, though professional installation is recommended to ensure proper setup and performance.
Warranty. This product includes a 1-year unlimited mileage warranty covering defects in materials and workmanship.
Application. Designed exclusively to fit 2018 through 2026 Jeep Wrangler JL models, including both 2-door and 4-door Wrangler Unlimited variants.
Teraflex 3208538
