Find Axles & Hubs for your Wrangler

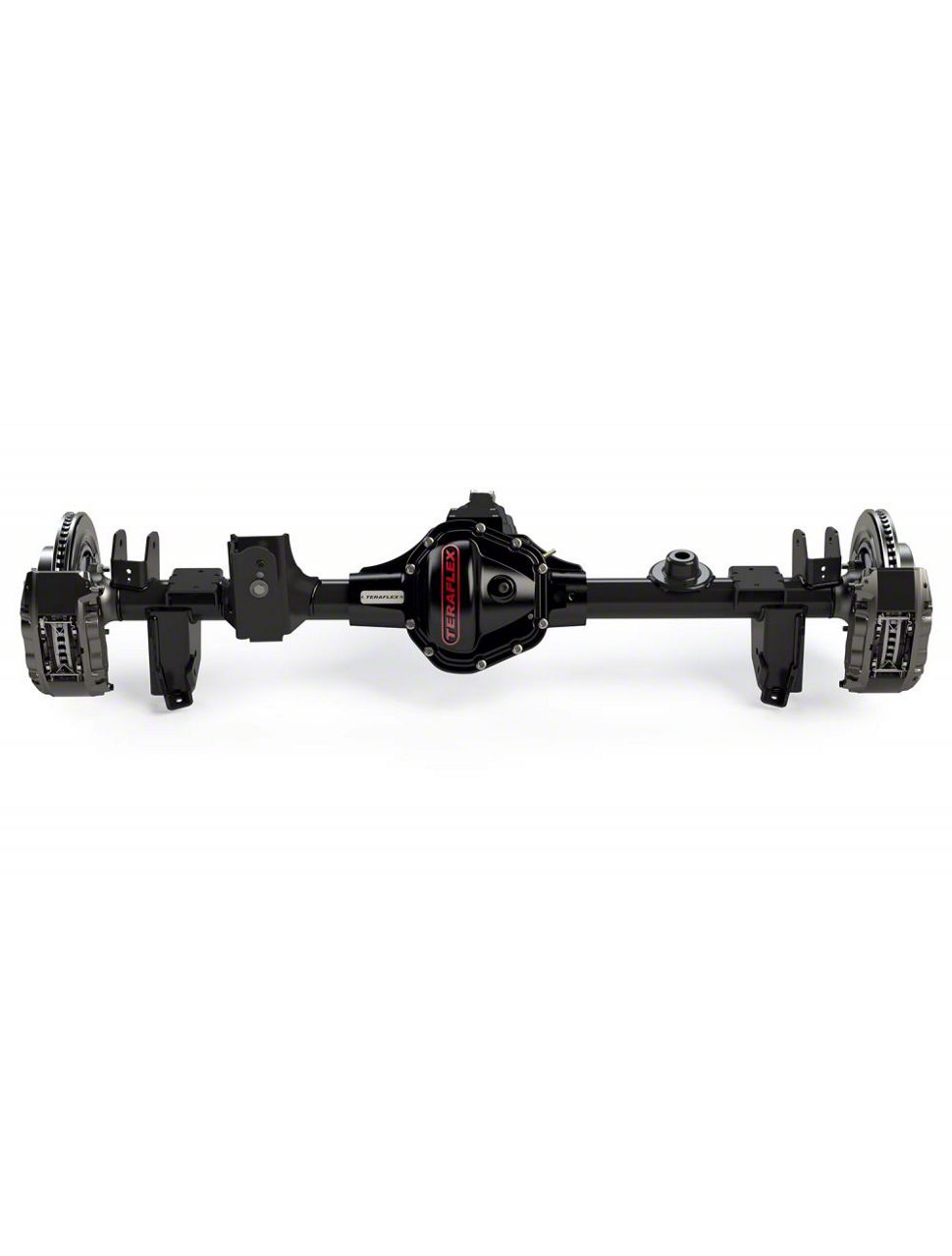

Teraflex CRD60 HD Rear Axle with Semi-Float, ARB Locker and 4.30 Gears for 0 to 6-Inch Lift (18-25 Jeep Wrangler JL)Find parts that fit my vehicle

Item J169568
Product Image
$0.00
5 Reviews
Our Price

$6,465.99 each

Military & First Responders Earn $323.30 in XT Cash Rewards. Get Verified

Out of Stock $199.00 Oversized Item Fee

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • CRD60 HD Rear Axle with Semi-Float
      • Ring & Pinion Gear Ratio (4.30)
      • ARB Air Locker
      • Dual Bolt Pattern (5x5" and 5x5.5")
      • High-Pinion Design
      • Integrated Lower Control Arm Skid Plates
      • Reinforced Rear Track Bar Mount with Multiple Mounting Locations
      • UV-Protected Triple-Stage Powder-Coat Finish
      • Pre-Installed Inner Axle Seals and Upper Control Arm Bushings
      • One-Day Installation
      • One-Year or Unlimited Mileage
      • Fits 2018-2025 Jeep Wrangler JL Models

      Description

      More Engaging Ride. The Teraflex CRD60 HD Rear Axle with Semi-Float is engineered to provide superior off-road performance for your 2018-2025 Jeep Wrangler JL. Its high-pinion design ensures optimal ground clearance, while the 40-spline semi-float axle shafts offer increased strength and durability. The integrated ARB Air Locker allows for maximum traction in challenging terrains, making it an ideal upgrade for off-road enthusiasts seeking reliability and performance.

      Built to Last. Constructed with 3.25” O.D. x 0.375” wall DOM axle tubes, the Teraflex CRD60 HD Rear Axle with Semi-Float is built to withstand rigorous off-road conditions. The ductile cast iron housing with increased rib gussets enhances structural integrity, while the UV-protected triple-stage powder-coat finish provides long-lasting corrosion resistance. These features collectively ensure that the axle assembly maintains its strength and appearance over time.

      Less Heat and Friction. The Teraflex CRD60 HD Rear Axle with Semi-Float incorporates a built-in “skimmer” that directs ring gear oil into the pinion bearings, ensuring consistent lubrication. Additionally, the outer pinion bearing pocket features a renewable oil reservoir that supplies cool oil to the pinion bearing. This advanced lubrication system reduces friction and heat, extending the lifespan of the axle components.

      Comprehensive Compatibility. Designed to accommodate a 0 to 6-inch lift, the Teraflex CRD60 HD Rear Axle with Semi-Float is compatible with various suspension setups. It retains all factory ESP, ABS, and speedometer sensor capabilities, ensuring seamless integration with your Jeep's existing systems. The dual bolt pattern (5x5" and 5x5.5") provides flexibility in wheel selection, enhancing the customization options for your vehicle.

      Installation. Putting this Teraflex CRD60 HD Rear Axle with Semi-Float, ARB Locker and 4.30 Gears for 0 to 6-Inch Lift on your Jeep Wrangler JL takes a day to install.

      Warranty. There is a 1-year or unlimited mileage warranty on this product.

      Application. The Teraflex CRD60 HD Rear Axle with Semi-Float, ARB Locker and 4.30 Gears for 0 to 6-Inch Lift fits 2018-2025 Jeep Wrangler JL models.

      Teraflex 3208430

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) CRD60 HD Rear Axle Housing with Semi-Float
      • (1) ARB Air Locker
      • (1) Ring & Pinion Gear Set (4.30 Ratio)
      • (2) Forty-Spline Semi-Float Axle Shafts
      • (1) Set of Spicer Super 60 Bearings
      • (1) Set of Inner Axle Seals
      • (1) Set of Upper Control Arm Bushings
      • (1) Reinforced Rear Track Bar Mount
      • (1) Integrated Lower Control Arm Skid Plates
      5.0

      Customer Reviews (5)

      Brand Image

      Reviews of Teraflex Drivetrain products have an average rating of 4.8 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question
