Teraflex 4.50-Inch Alpine RT Coil-Over Suspension Lift System (18-26 3.6L Jeep Wrangler JL Rubicon 4-Door w/ eTorque & Factory Axles)Find parts that fit my vehicle

Item J189785
Product Image
500+ Reviews
Our Price

$10,999.99 kit

Military, Medical & First Responders $550.00 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Teraflex 4.50-Inch Alpine RT Coil-Over Suspension Lift System
      • Lift of 4.5 Inches
      • Improved Ride Comfort and Performance
      • Requires a Front Driveline Double Cardon Upgrade Due to the Increased Travel, Removing the Bumper-to-Fender wind Deflector/Splash Guards, and Cutting/Removal of the Stock Control Arm Bracketry and Spring Buckets
      • Alignment is Required After Installation
      • Wheels with 4.75-Inch Backspacing or Less Are Required or 1.75-Inch Wheel Offset Adapters (Part Number 1057000)
      • Dana 60 Type Front and Rear
      • High-Performance Design
      • Direct Replacement
      • Comes in Kits
      • Fits 2018-2026 3.6L Jeep Wrangler JL Rubicon 4-Door Models with eTorque and Factory Axles

      Description

      Big-Travel Control. Designed for 2018–2026 3.6L Jeep Wrangler JL Rubicon 4-door models with eTorque and factory axles, the Teraflex 4.50-Inch Alpine RT Coil-Over Suspension Lift System elevates capability with a true 4.5-inch lift, high-performance damping geometry, and robust bracketry. The system focuses on improved ride comfort and performance, unlocking articulation and stability for technical trails while preserving confident on-road manners for daily driving and long hauls.

      Construction and Appearance. Engineered around Dana 60 type front and rear considerations, the Alpine RT architecture leverages precision-welded upper and lower shock mounts, inner frame plates, and axle bump pad assemblies for rigid load paths. Heavy-duty brackets and spacers pair with class-rated hardware to resist deflection and maintain alignment under hard use. High-performance design cues—clean welds, accurate cut profiles, and reinforced interfaces—work together to stabilize coil-over motion, enhance heat management, and deliver repeatable suspension cycles over rough terrain.

      Installation. This direct replacement, kit-based system is comprehensive and installer-friendly, but it is a pro-level project. Due to increased travel, a front driveline double Cardon upgrade is required. Plan for the removal of bumper-to-fender wind deflectors/splash guards and cutting/removal of stock control arm bracketry and spring buckets. Wheels with 4.75-inch backspacing or less are required—or use 1.75-inch wheel offset adapters (Part Number 1057000)—to ensure clearance at full lock and compression. After torquing all hardware, cycle the suspension to verify line routing and interference-free articulation, then perform a complete alignment to dial in caster, camber, and toe. Final checks should include fastener re-torque after initial miles.

      Application. This Teraflex 4.50-Inch Alpine RT Coil-Over Suspension Lift System fits 2018-2026 3.6L Jeep Wrangler JL Rubicon 4-Door models with eTorque and factory axles. By coupling precise bracketry with coil-over control and added ride height, it increases obstacle clearance, improves chassis stability, and delivers a more composed, performance-forward feel on demanding trails and everyday roads.

      Teraflex 1357023

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Weekend

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

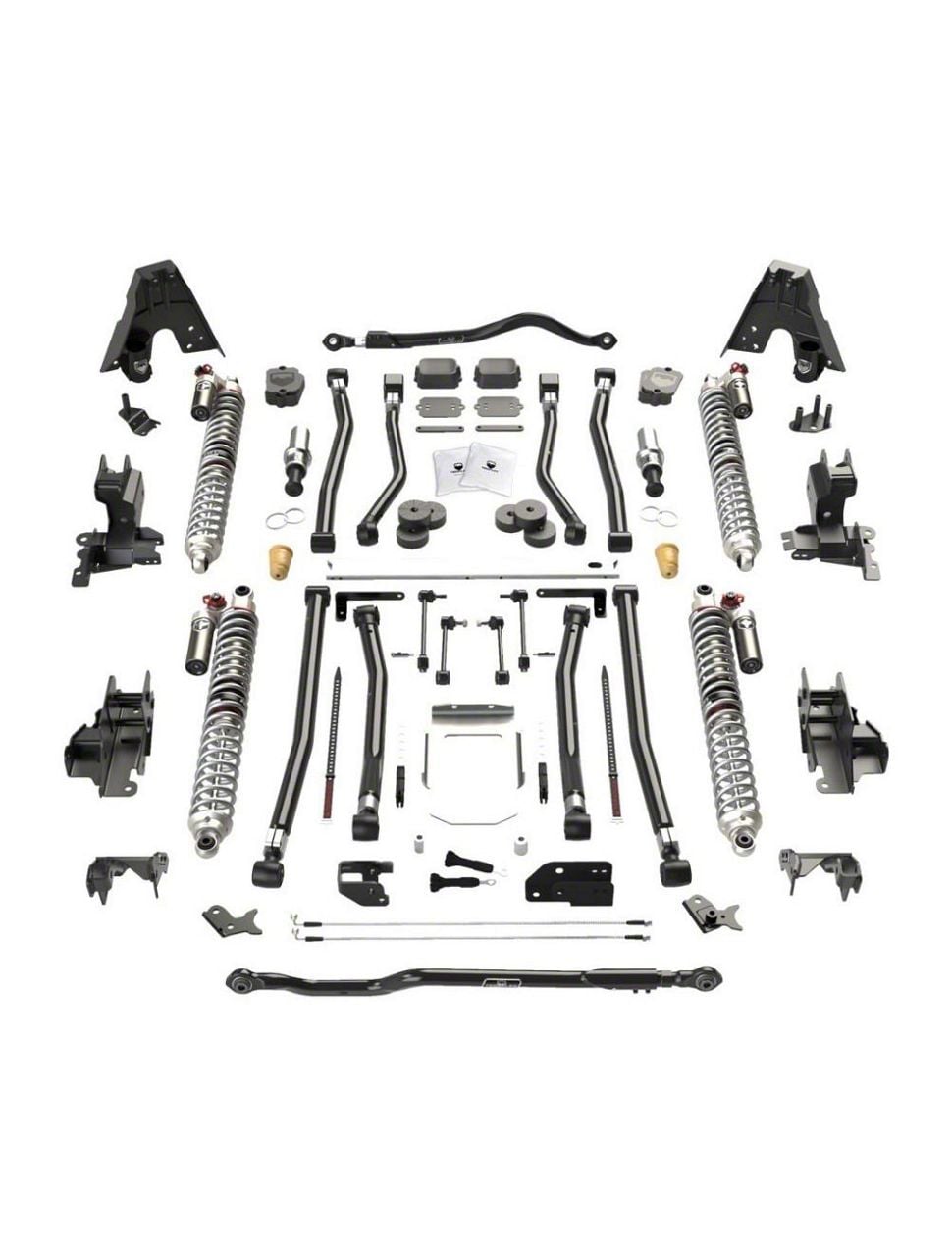

      What's in the Box

      • (1) Bracket (S), Assembly, Multi Vehicle, Coil Over Front Upper Driver Side Inner Frame Plate Assembly
      • (1) Bracket (S), Assembly, Multi Vehicle, Coil Over Front Upper Female Flat Nut Passenger Weldment
      • (1) Bracket (S), Assembly, Multi Vehicle, Coil Over Front Upper Driver Weldment
      • (1) Bracket (S), Assembly, Multi Vehicle, Coil Over Front Upper Passenger Weldment
      • (2) Accessory (S), Badge, Teraflex / Shield Logo, 1.8" Tall, 2.5" Diameter, Aluminum
      • (1) Accessory, Quick Disconnect Strap Kit
      • (1) Custom Hardware (S), Flag Nut, Flange Top Lock Nut, Class 10 / PSI1036-S, M16 X 2.0, Driver
      • (1) Custom Hardware (S), Flag Nut, Flange Top Lock Nut, Class 10 / PSI1036-S, M16 X 2.0, Passenger
      • (2) Hardware Packs For JL Coil, Front Bracketry
      • (2) Zip Ties For Brake Lines In PreRunner Kit
      • (2) Hardware (S), Hex Flange Bolts, Alloy Steel / PSI1036-S, M12 X 1.75 X 35mm
      • (2) Hardware (S), Hex Flange Bolts, M12 X 1.5 X 140mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Hex Flange Bolts, M16 X 2.0 X 80mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Hex Bolts, M6 X 1.0 X 20mm, Class 7.0 / ZnAl / Silver
      • (2) Hardware (S), Hex Flange Bolts, M10 X 1.5 X 35mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Flange Top Lock Nuts, Alloy Steel / PSI1036-S, M16 X 2.0
      • (2) Hardware (S), Flat Washers, M6, Class 10.9 / ZnAl / Silver
      • (4) Hardware (S), Flange Hex Nuts, M10 X 1.5, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Distorted Hex Flange Nuts, M12 X 1.5, Class 10.9 / ZnAl / Silver
      • (2) Misc. Hardware (S), Tie, Button Head Zip, 9.5" Long
      • (2) Brackets (S), Shock Mount, Jeep JL Wrangler, Coil Over Front Lower Bracket Welded Assemblies
      • (2) Brackets (S), Shock Mount, Jeep JL Wrangler, Coil Over Front Axle 60 Bump Pad Welded Assemblies
      • (1) Bracket (S), Shock Mount, Jeep JL Wrangler, Coil Over Rear Upper Shock Mount Welded Assembly Driver
      • (1) Bracket (S), Shock Mount, Jeep JL Wrangler, Coil Over Rear Upper Shock Mount Welded Assembly Passenger
      • (2) Accessory (S), Badge, Teraflex / Shield Logo, 3.2" Long X 1.0" Tall, Aluminum, Flat
      • (2) Spacer (T), 0.50" ID X 1.25" OD X 2.7" Length, Steel, Black
      • (2) Spacer (T), 0.50" ID X 2.5" OD X 2.7" Length, Steel, Black
      • (2) Hardware Packs For JL Coil, Rear Bracketry
      • (2) Hardware (S), Hex Flange Bolts, M12 X 1.5 X 140mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Hex Flange Bolts, M16 X 2.0 X 80mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Hex Flange Bolts, M16 X 2.0 X 120mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Hex Flange Bolts, M10 X 1.5 X 35mm, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Hex Flange Bolts, M14 X 2.0 X 120mm, Class 10.9 / ZnAl / Silver
      • (4) Hardware (S), Flange Hex Nuts, M10 X 1.5, Class 10.9 / ZnAl / Silver
      • (2) Hardware (S), Flange Top Lock Nuts, Alloy Steel / PSI1036-S, M14 X 2.0

      4.8

      Customer Reviews (500+)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Wrangler

      • JL Rubicon 4 Door - 18, 19, 20, 21, 22, 23, 24, 25, 26
