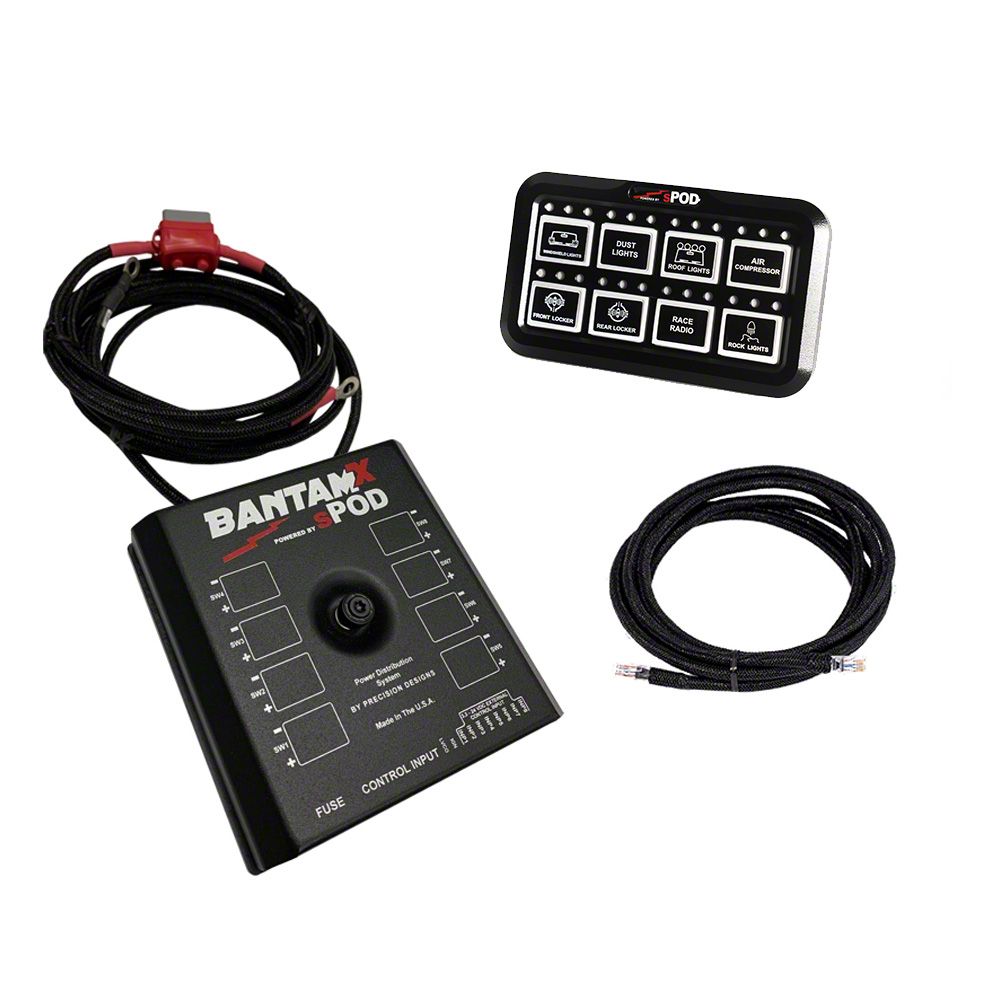

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)
Item FB37627
Our Price
$1,006.50
Military, Medical & First Responders
$50.33 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Fully Programmable, Digital Controlled 8-Circuit System _x000D_
- Each Circuit Rated At 30 Amps At 12.5 VDC _x000D_
- Sixteen-Position Terminal Block For Easy Attachment Of Accessories _x000D_
- Two RJ45 Controller Ports For Ethernet Cable Connections _x000D_
- Integrated Low Voltage Cutoff (LVCO) Battery Protection With Optional Override _x000D_
- One ATM Mini-Style Fuse For LVCO Protection And Reset _x000D_
- Failsafe Self-Healing Fault Protection System Covering 1.5 To 30 Amps _x000D_
- Current-Sensing MOSFETs Controlled By Microprocessor Without Fuses Or Relays _x000D_
- 100 Amp Inline Fuse Included _x000D_
- Nylon Braided Battery Cables With Hi-Strand Crosslinked Copper Wire And Silicone Jacket _x000D_
- Operates On 12VDC Or 24VDC Systems _x000D_
- Eight-Position Input Terminal Block For Controlling Outputs _x000D_
- Built-In Bluetooth Capabilities For Remote Control _x000D_
- Protection Against Overheating, Overcurrent, Shorts, Reverse Polarity, And Field Collapse _x000D_
- Ignition Control And Safety Lock-Out For Switches 1 And 2 (Optional) _x000D_
- On-Demand Wireless Software Updates And Upgrades _x000D_
- HD Control Panel With Aluminum Billet Machined Housing And Silicone Tactile Switches _x000D_
- Compact Size With Universal Mounting Options And RJ45 Communication Jack _x000D_
- HD Panel Features RGB Backlit Switches With Adjustable Intensity And Programmable Functions _x000D_
- Supports External Controllers Like Arduino, Raspberry Pi, And Alpine Audio Systems _x000D_
- Designed For Universal Application; Some Adaptation May Be Required _x000D_
Description
Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is an 8-circuit digital control system designed to simplify wiring and control of multiple 12 or 24VDC accessories. It reduces installation time by utilizing a single Ethernet cable connection to the vehicle's cab and provides robust protection features to ensure safe and reliable accessory power management for automotive applications.
_x000D__x000D_Construction and Appearance. The system features a powder-coated steel base complemented by a weatherproof silicone gasket and an aluminum lid secured with thumb screws. The HD control panel is housed in a machined aluminum billet enclosure with a powder-coated black finish, equipped with silicone buttons that provide tactile feedback. The design emphasizes durability and functionality in harsh environments while maintaining a compact, sleek appearance.
_x000D__x000D_Installation. Installation is straightforward with no cutting or tapping into existing vehicle wiring systems, minimizing vehicle modification. The control panel offers flexible mounting options and includes a 10-foot CAT-6 Ethernet cable to connect to the controller, supporting cable runs up to 25 feet.
_x000D__x000D_Warranty. The product comes with a manufacturer warranty to protect against defects and ensure reliable performance. Application. Designed for universal application with possible adaptation required to fit specific vehicle setups or accessory requirements.
sPOD BXHDUNI36
