Installation Time
(approx) a Day
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Rock Krawler X-Factor X2 Flat Belly Long Arm Upgrade (97-06 Jeep Wrangler TJ)
Item J251144
Our Price
$3,129.09 each
Military, Medical & First Responders
$156.45 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Maintenance Free/ High Ability Control Arms Featuring Award Winning Adventure Series Joints
- Full Flat Belly Long Arm System
- Best Cross Over Angle Long Arm System Available
- Best On Road And Off Road Long Arm Geometry Available
- Excellent Highway Ride And Handling
- High Misalignment Lower Control Arms
- Independent Front 3 Link Geometry
- Double Triangulated Rear 4 Link Geometry
- Abuse Proof Lifetime Warranty On All Hard Parts
- Upgradeable To Coil Overs/Stretch Systems Or Rockzilla
- Lifetime Warranty Coverage
- Includes Four High Misalignment/Adjustable Lower Long Arms
- Includes One Adjustable Front Upper Control Arm
- Includes One Skid Plate And Skid Plate Mounting Brackets
- Includes Two Rear Upper Triangulated 4 Link Arms
- Includes One Rear Triangulated 4 Link Mounting Cradle/Axle Truss
- Includes Two Front Lower Control Arm Axle Mounts
- Includes Two Rear Lower Control Arm Axle Mounts
- Includes Hardware And Detailed Instructions
- Designed For OEM Axles And OEM Axle Control Arm Mounting Widths (Dana 30/44)
- Requires SYE With C.V. Driveshaft With Long Rear Uppers
- Requires Custom Cat Back Exhaust
- Rubicon Edition TJ's Require New Rear Driveshaft
- 2003 TJ's With 4 Speed Automatics Require Removal Of Factory Automatic Transmission Skid Plate
- Requires Removal Of OEM Rear Upper Control Arm Mounts Off Rear Axle
- Recommend Rear Shock Relocation Brackets Or Rear Shock Shifters For Some Applications
- Requires Artec Or Motobilt HD Body Mounts That Raise Body 1.25” And Small Motor Mount Lift Or 1.5” Body Lift/Motor Mount Lift Or Greater
- Combine Suspension Lift Height And Body Lift Height Or Body Mount Replacement To Achieve Desired Overall Tire Clearance
- Fits 97-06 Jeep Wrangler TJ
| Brand | Rock Krawler |
| Control Arm Length | Long Arm |
| Control Arm Placement | Front and Rear Lower and Upper |
Description
Advanced Suspension Upgrade. The Rock Krawler X-Factor X2 Flat Belly Long Arm Upgrade is a comprehensive suspension system designed to enhance the long arm capability of Jeep Wrangler TJs. It improves vehicle stability, ride quality, and ground clearance by utilizing innovative geometry and maintenance-free joints, suitable for both on-road and off-road driving.
Construction and Appearance. Crafted with high-strength materials, the system incorporates award-winning Adventure Series Joints with BASF thermo-elastomer components enabling exceptional misalignment tolerance. The design features a full flat belly configuration that tucks all control arms inside the frame and durable finishes to withstand harsh conditions.
Installation. Installation requires moderate mechanical skill and involves removal and replacement of OEM components, including upper control arm mounts and skid plates. Some custom modifications may be necessary, such as exhaust adjustments and body/motor mount lifts, to accommodate the new geometry.
Warranty. This upgrade includes an abuse-proof lifetime warranty on all hard parts, ensuring long-term reliability and peace of mind.
Application. Engineered specifically for Jeep Wrangler TJ models from 1997 to 2006, including important considerations such as Rubicon Edition rear driveshaft requirements and certain 4-speed automatic transmission models needing skid plate modifications.
Rock Krawler TJX2LA-UPG
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

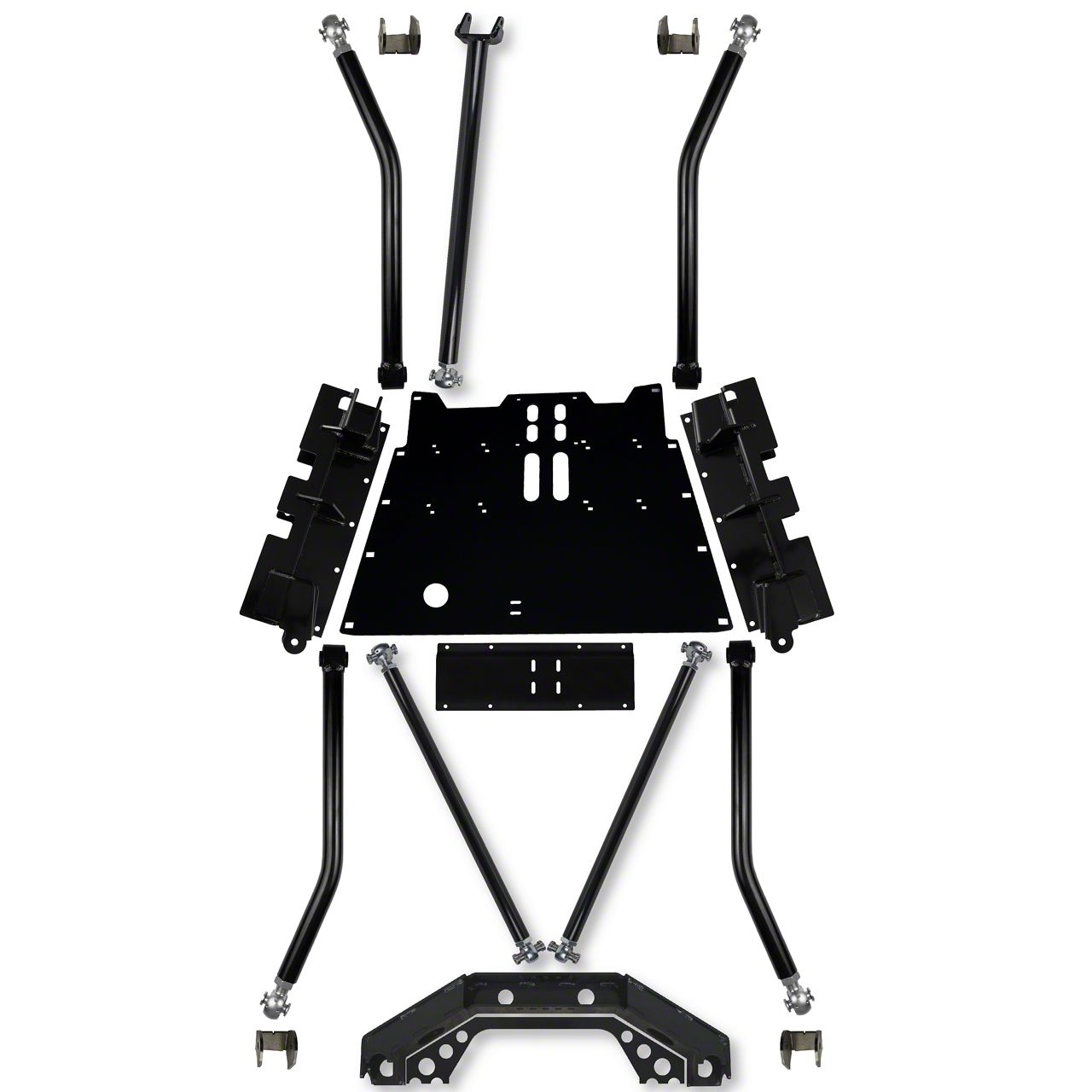

Installation & What's in the Box
Installation Info
What's in the Box
- (1) High Clearance Crossmember
- (8) Adjustable Long Arms With Pro-Series Joints
- Hardware
Questions & Answers
No questions about this product yet.
Ask the First Question
