Rock Krawler 3.50-Inch X-Factor PRO Suspension Lift Kit (07-18 Jeep Wrangler JK 2-Door)

The Rock Krawler 3.5" X-Factor PRO Mid-Arm System is specifically designed for Wrangler owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. ALL 8 CONTROL ARMS ARE MADE FROM SOLID 7075 ALUMINUM, AND COME STANDARD WITH ALL BENEFITS OF X-FACTOR BUILT RIGHT IN. Our system proves its durability and off-road performance every time you hit the streets or trail! Our industry leading, X-Factor Series, adjustable upper and lower control arms offer a total of 95 degrees of misalignment when paired with our Pro-X Krawler Joints and Adventure Series joints. The inherent bind in a factory JK control arm is greatly reduced. Our maintenance free "Adventure Series" joints are found in your front and rear control arms at the frame connection, while our "PRO Krawler Joints" tie in your axle connections. With so much adjustability, it allows you to precision tune the JK's caster and pinion angle front and rear. Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE-RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JK systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension.

System Benefits:
Complete Bolt-in System
Excellent Highway Ride And Handling
The Best Off-road Ability Of All Mid-arm Systems
Improved Rear Roll Center
Tuned Triple-rate Coils
Spring Correction Seats
Vehicle Lean Correction
Upgradable To RK Long-arm System
Best Technical Support In The Industry
Jeep Remains Level On All 4 Corners
Lifetime Warranty Coverage

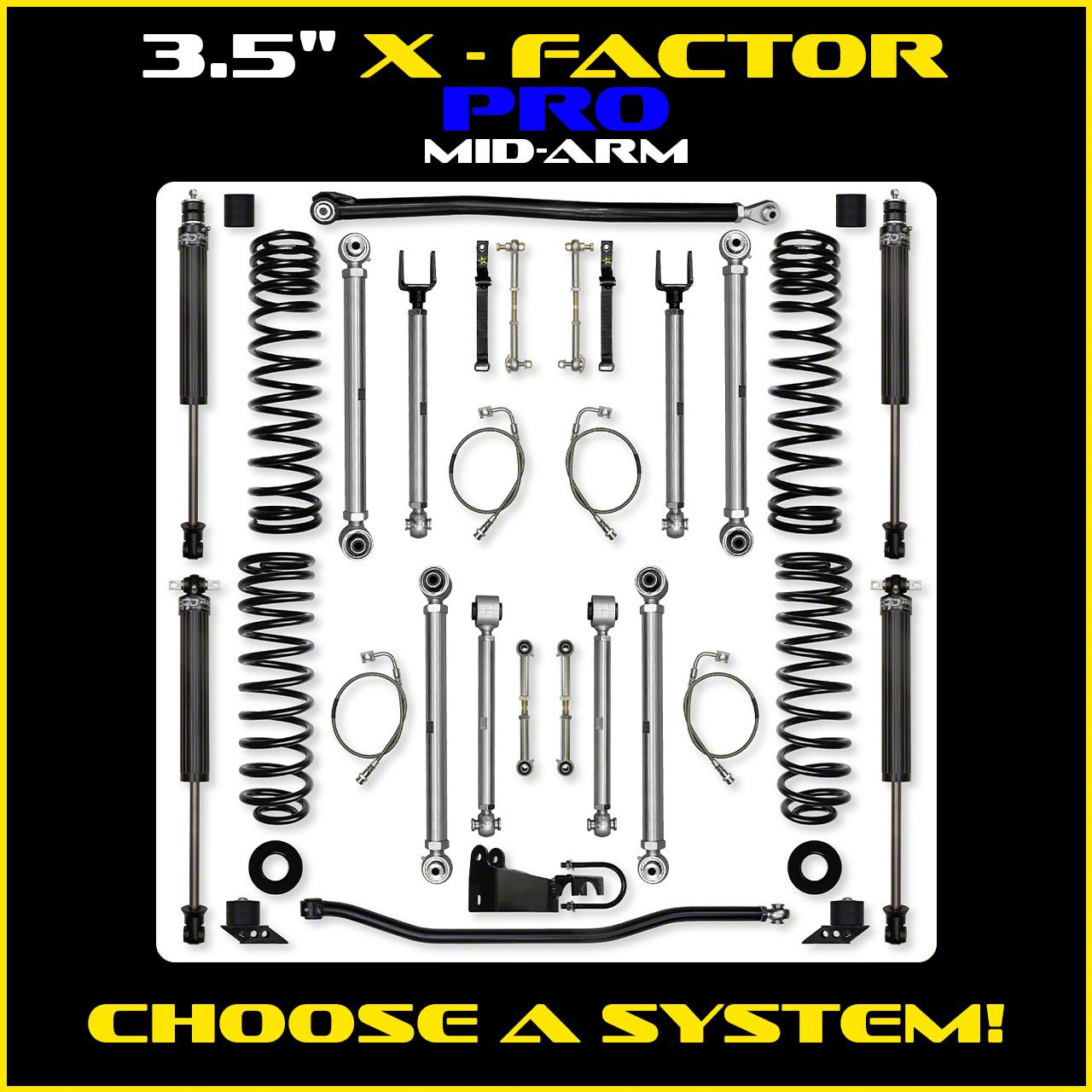

System Includes:
(4) Triple Rate Coil Springs
(2) Adjustable Machined 7075 Aluminum Front Lower Control Arms
(2) Adjustable Machined 7075 Aluminum Front Upper Control Arms
(1) Adjustable Front Track Bar
(2) Quick Disconnect Front Sway Bar Links
(2) Adjustable Machined 7075 Aluminum Rear Lower Control Arms
(2) Adjustable Machined 7075 Aluminum Rear Upper Control Arms
(2) Rear Spring Pads
(2) Adjustable Rear Sway Bar Links
(1) Bolt-on Rear Track Bar Relocation Bracket
(1) Front and Rear Extended Brake Lines
(DEPENDING ON SHOCK PACKAGE CHOSEN)
Bump Stops Are Included With All Shock Options
IF YOU CHOOSE NO SHOCKS - BUMPSTOPS CAN BE PURCHASED SEPARATELY - RK07123

Shock Information:
All RRD Shocks and Coilovers are Designed and Built in-house
Generic Front Shock Length – 17.5” Collapsed/ 28” Maximum Extended
Generic Rear Shock Length – 16.3” Collapsed/ 26.31” Maximum Extended
Bilstein 5100 Shocks

A Great Pairing with Our Multi-rate Coil Springs
Maintenance Free
FRONT: RRD04042-B51
REAR: RRD04045-B51

RRD 2.25" IFP Shocks

2.25” O.D. Military Grade Hard Anodized Fluted Aluminum Shock Body
Cooling Surface Area of a 2.5” Shock
3/4” 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
Billet Aluminum Valve Circuit and Components
Dual DU Shaft Bearings and Double Redundant Sealing Methods
Built In-house
Serviceable/Rebuildable/Revalveable
More Info

Wheel Fitment:
We typically recommend 4.5" of backspacing on a wheel used with 33" & 35" tall tires
We typically recommend 3.5" of backspacing on a wheel used with 37" tall tires

Tire Fitment:
Full OEM Fenders 33" or 35” Tall Tires
Flat Fenders 37” Tall Tires

General Notes:
All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
If building an overland or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
We recommend a new front driveshaft if you plan to off-road routinely. (Adam's Driveshaft, Tom Woods, J.E. Reel)
