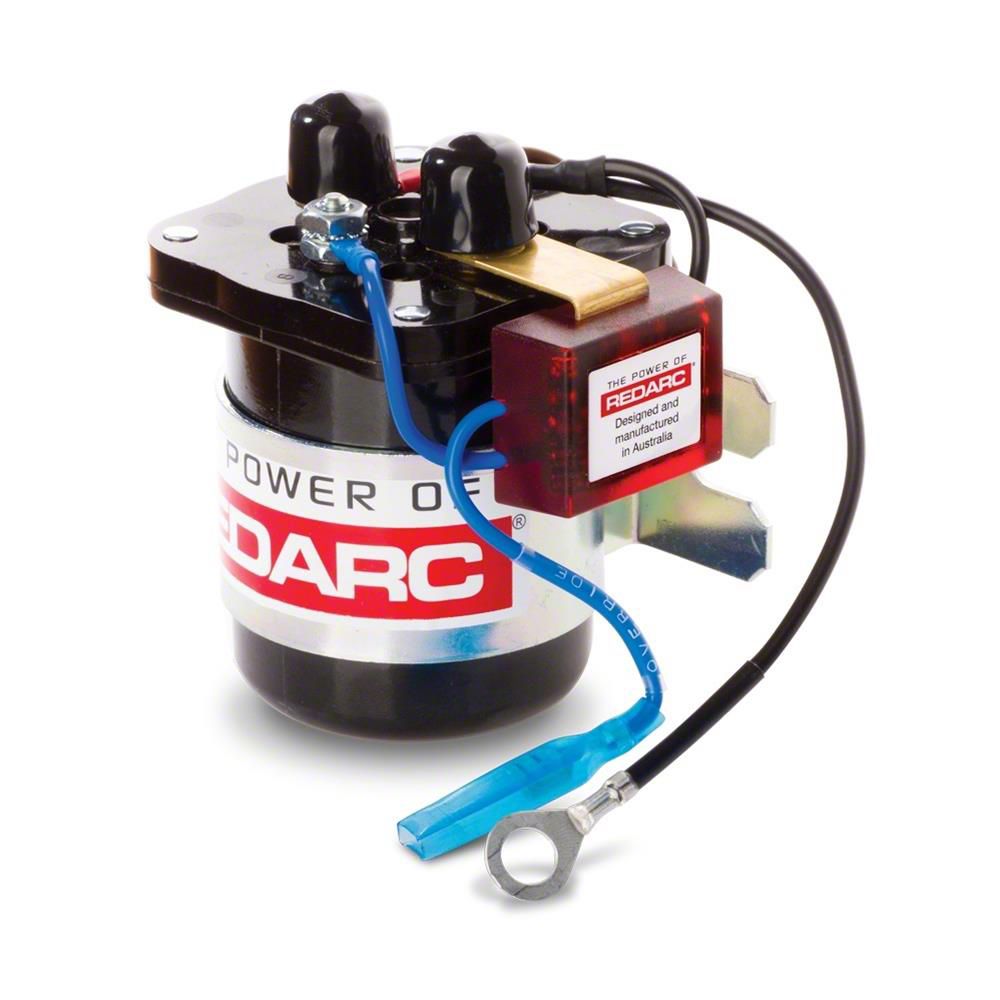

Redarc Smart Start 12V 200A Battery Isolator
Item FB15880
Our Price
$330.00 each
Military, Medical & First Responders
$16.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 12V DC 200A Microprocessor-Controlled Dual Battery Isolator
- Protects Start Battery From Excessive Discharge
- Allows Auxiliary Battery To Supply Charge To Non-Essential Loads
- 200A Continuous Current Rating
- Power Saving Technology With Low Standby Current Draw Below 5mA
- Fault Detection And LED Fault Indication For Over-Voltage, Voltage Drop, And Excessive Current Conditions
- Max Inrush Current Of 600A
- Turn On Voltage At 13.2V With 5-Second Turn On Delay
- Turn Off Voltage At 12.7V With 10-Second Turn Off Delay
- Silver Contacts For Longer Life And Marine Application Suitability
- Fully Surge Protected With Durable Overmould Design
- Compact Size Measuring 90mm Height, 95mm Width, And 100mm Depth
- Input And Output Fuse Rating Of 200A
- Weight Of 600 Grams
- Suitable For Commercial and Heavy-Duty Dual Battery Systems
Description
Microprocessor Controlled Performance. The Redarc Smart Start 12V 200A Battery Isolator safeguards the start battery from excessive discharge while enabling the auxiliary battery to power non-essential loads. It is widely used in commercial and heavy-duty dual battery systems to maintain optimal battery management and ensure reliable vehicle operation.
Construction and Appearance. This battery isolator features a robust overmould design with silver contacts that enhance durability and resistance to marine environments. The compact unit is designed for ease of installation and incorporates advanced electronic components to minimize voltage transients and maximize lifespan.
Installation. This isolator installs straightforwardly with no complex modifications or drilling typically required. Its compact size offers flexible mounting options suited to most commercial vehicle battery systems.
Warranty. The product comes with a comprehensive 2-year warranty providing peace of mind for durability and performance.
Application. Designed exclusively for 12V dual battery systems requiring up to 200A continuous current, it is intended for use in commercial vehicle environments and heavy-duty applications.
Redarc SBI212
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Battery Isolator
