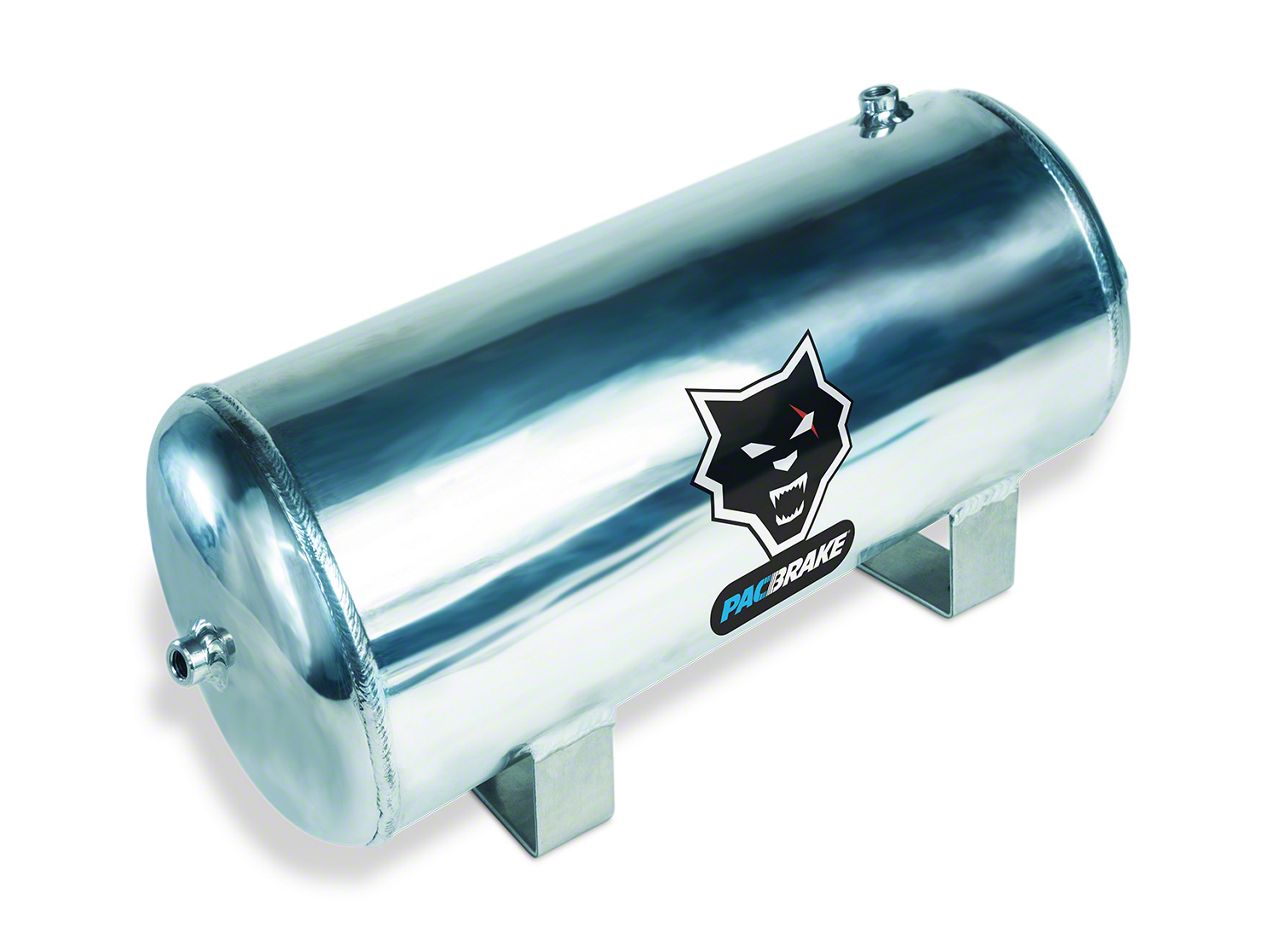

Pacbrake Polished Aluminum Premium Air Tank Kit; 5-Gallon (Universal; Some Adaptation May Be Required)

Item U68782-XT
Product Image
New
Our Price

$251.58

Military, Medical & First Responders $12.58 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Description, Q&A, Specs & Installation

      Description

      Pacbrake Air Tank Info

      OVERVIEW

      Pacbrake Air Tanks work in conjunction with an air compressor, storing the compressed air and holdingit until it is required. Storing compressed air allows for quicker product activation, especially whenoperating more than one product simultaneously.

      PRODUCT DESCRIPTION

      Pacbrake's Basic 5 Gallon Aluminum Air Tank Kit works in conjunction with any Pacbrake series AirCompressor to store compressed air on your vehicle for use with a Pacbrake Air Suspension kit and/orother pneumatic air accessories.

      Pacbrake's Polished Aluminum Air Tanks are made with a less corrosive and lighter material than thestandard steel tanks.

      Kit Details:

      • 5 Gallon Aluminum Air Tank - Polished Aluminum finish
      • Includes installation hardware only (Premium Kit also available: #HP10268)

      5 Gallon Tank Specifications:

      • 20.08 inch x 7.87 inch x 10.32 inch (L x W x H) / [510mm x 262mm x 200mm]
      • 9.2 inch (Diameter) / [234mm]
      • 7.94 lbs [3.6kg]

      A comparable (Basic) 5 Gallon Carbon Steel Air Tank kit is also available

      VEHICLE APPLICATION

      • Universal

      APPLICATION NOTES

      • Compatible with all Pacbrake series compressors

      FEATURES

      • NPT Ports: 2 x 1/4" (-4)
      • Wall Thickness: 1" [2.5mm]
      • Max Working Pressure: 200 psi [1380 kPa]
      • Burst Pressure: 600 psi [4137 kPa]
      • Working Temp: -40°F to 248°F [-40°C to 120°C]
      • Finish: Polished Aluminum
      • Welded on mounting brackets
        (with installation hardware)

      Pacbrake HP10265
