Motobilt Cage Dash Tie-In Builder Kit (97-06 Jeep Wrangler TJ)Find parts that fit my vehicle
Item J257506
$0.00
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A, Specs & Installation
Description

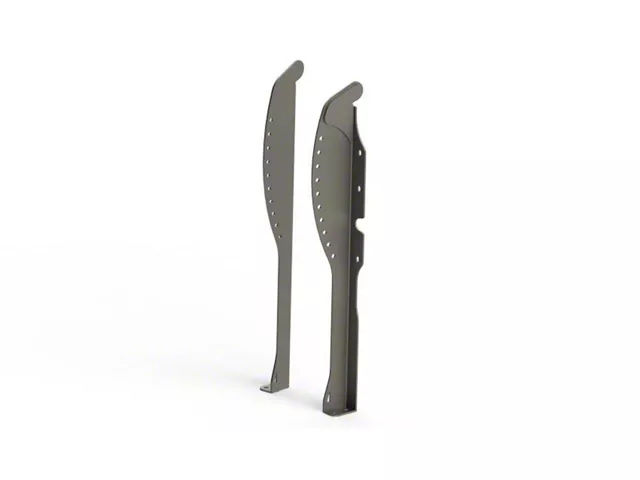

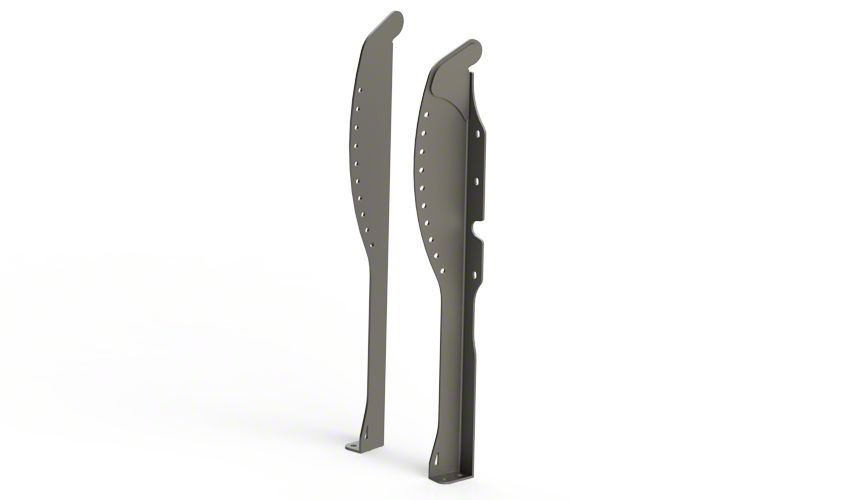

The Motobilt Jeep TJ / LJ Cage Dash Tie-In Mount is a clean and simple way to tie in the front section of a cage. The mounts are CAD designed and formed to fit tight to the dash allowing the door to close and maximize leg room. They are CNC cut and formed on a hydraulic press brake from 3/16 inch steel plate. They are designed to fit tight to the dash and extend to the floor. The vertical section at the time was built with strength in mind. A dash bar connects the dash tie in plates from the driver to passenger side of the Jeep first. The next step would be to fabricate the A pillars to the dash bar.
Another feature is the additional plate and gusseting at the top section. This plate simply welds to the top to add additional strength. The lower section of the mount is clearance to allow access to the hook for the door catch. Some call this mount a Stanchion mount. This basically means a post.
Features:
- Cage Dash Tie-In Mount
- Fits 1997-2006 Jeep Wranglers TJ/LJ
- 3/16 inch Steel Plate
- Ships bare metal ready for welding
- Sold as each
Note:
- Welding required
Motobilt MB3006
