Find Winches. for your Bronco

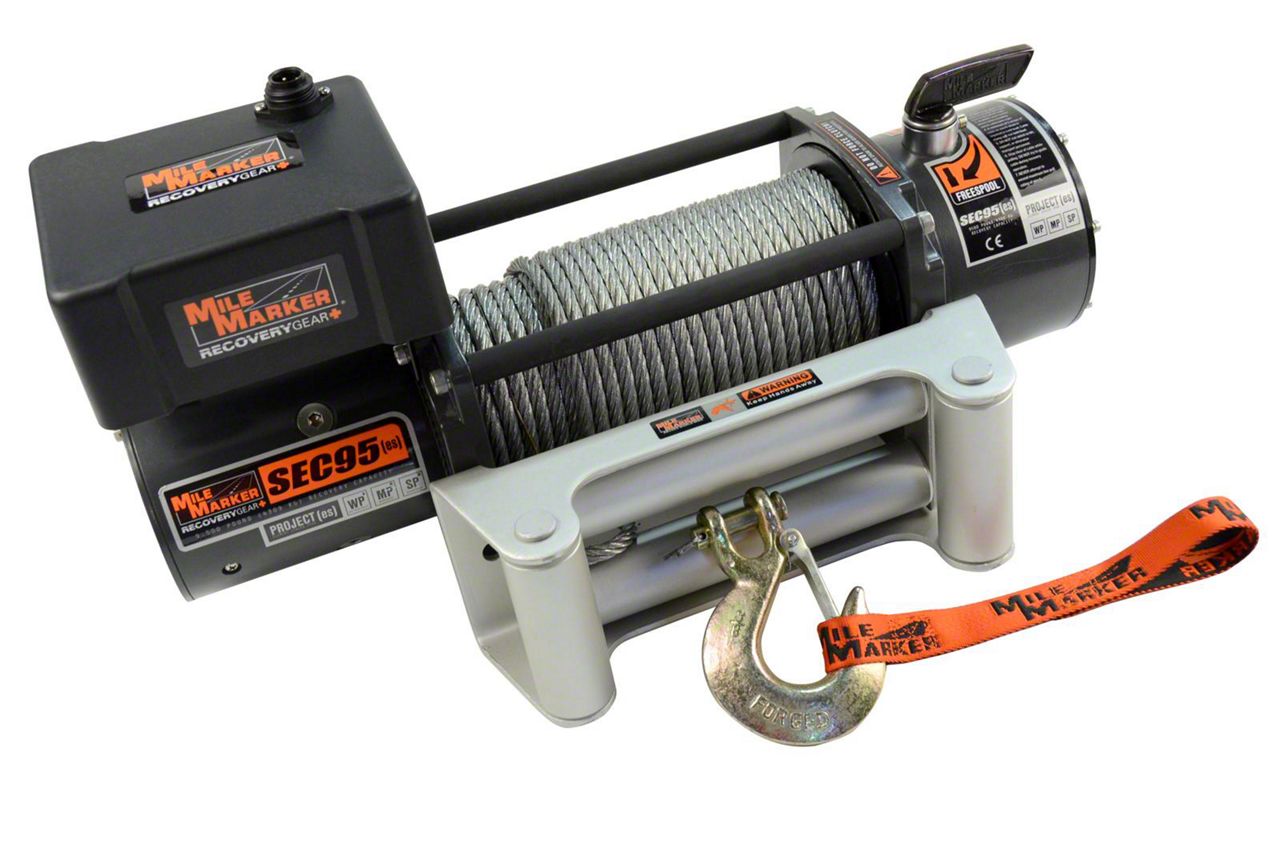

Mile Marker SEC9.5 9,500 lb. Winch with Steel Cable (Universal; Some Adaptation May Be Required)
Item FB17565
Our Price
$799.00
Military, Medical & First Responders
$39.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Conquer Any Terrain With The Rugged 9,500 Pound Winch _x000D_
- Designed For Jeep, Truck, And SUV Use _x000D_
- Features Military Grade Construction _x000D_
- Operates On A 12-Volt Electric System _x000D_
- Equipped With A 4-Bolt Pattern For Mounting (4.5” x 10” Bolt Pattern) _x000D_
- Offers A Choice Between Steel Cable Or Synthetic Rope _x000D_
- Steel Cable Length Is 100 Feet With 3/8” Diameter _x000D_
- Synthetic Rope Length Is 92 Feet With 3/8” Diameter _x000D_
- 4.9 Horsepower Series Wound Motor _x000D_
- Three-Stage Planetary Gear Train With 210:1 Gear Ratio _x000D_
- Fully Sealed Solenoids Rated At 400 Amps For Steel Cable Version And 500 Amps For Synthetic Rope Version _x000D_
- Includes Handheld Remote Control With 12-Foot Cord _x000D_
- Automatic Load Holding Brake For Enhanced Safety _x000D_
- Clockable Gear Housing For Flexible Installation _x000D_
- Rugged Construction With Corrosion Resistant Stainless Steel Fasteners _x000D_
- Aluminum Hawse Fairlead For Synthetic Rope Or Roller Fairlead For Steel Cable _x000D_
- Dimensions Are Approximately 22.25 Inches Long, 6.25 Inches Wide, And 8 Inches High _x000D_
- Net Weight Is 67 Pounds For Synthetic Rope Version And 92 Pounds For Steel Cable Version _x000D_
- Line Speed Varies With Load, Up To 26 Feet Per Minute At No Load _x000D_
- Motor Current Draw Ranges From 95 To 370 Amps At 12 Volts Depending On Load _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Mile Marker |
| Winch Capacity | 9500 lbs |
| Winch Rope Type | Steel Cable |
| Winch Remote Type | Wired |
Description
Powerful Off-Road Winch. The Mile Marker SEC9.5 9,500 lb. Winch with Steel Cable delivers exceptional pulling power essential for off-road recovery and utility tasks. Engineered for Jeep, truck, and SUV applications, this electric winch is ideal for conquering tough terrains, assisting in vehicle recovery, and handling heavy loads with confidence.
_x000D__x000D_Construction and Appearance. Built with military-grade materials, the winch features fully sealed solenoids rated at 400 amps for the steel cable version and 500 amps for the synthetic rope version, and a robust series wound 4.9 HP motor. It offers corrosion-resistant stainless steel fasteners combined with a sturdy aluminum hawse fairlead for synthetic rope or roller fairlead for steel cable management. The winch’s durable design is finished for protection against harsh weather, mud, and snow environments.
_x000D__x000D_Installation. The SEC9.5 winch installs using a standard 4-bolt pattern, with no drilling required in most cases. Its clockable gear housing allows for flexible mounting orientations to accommodate varying vehicle configurations.
_x000D__x000D_Warranty. Extended warranty options are available, providing peace of mind and protection for up to five years.
_x000D__x000D_Application. Fits universal; some adaptation may be required to suit specific vehicle models or mounting solutions.
Mile Marker 76-50246BW
