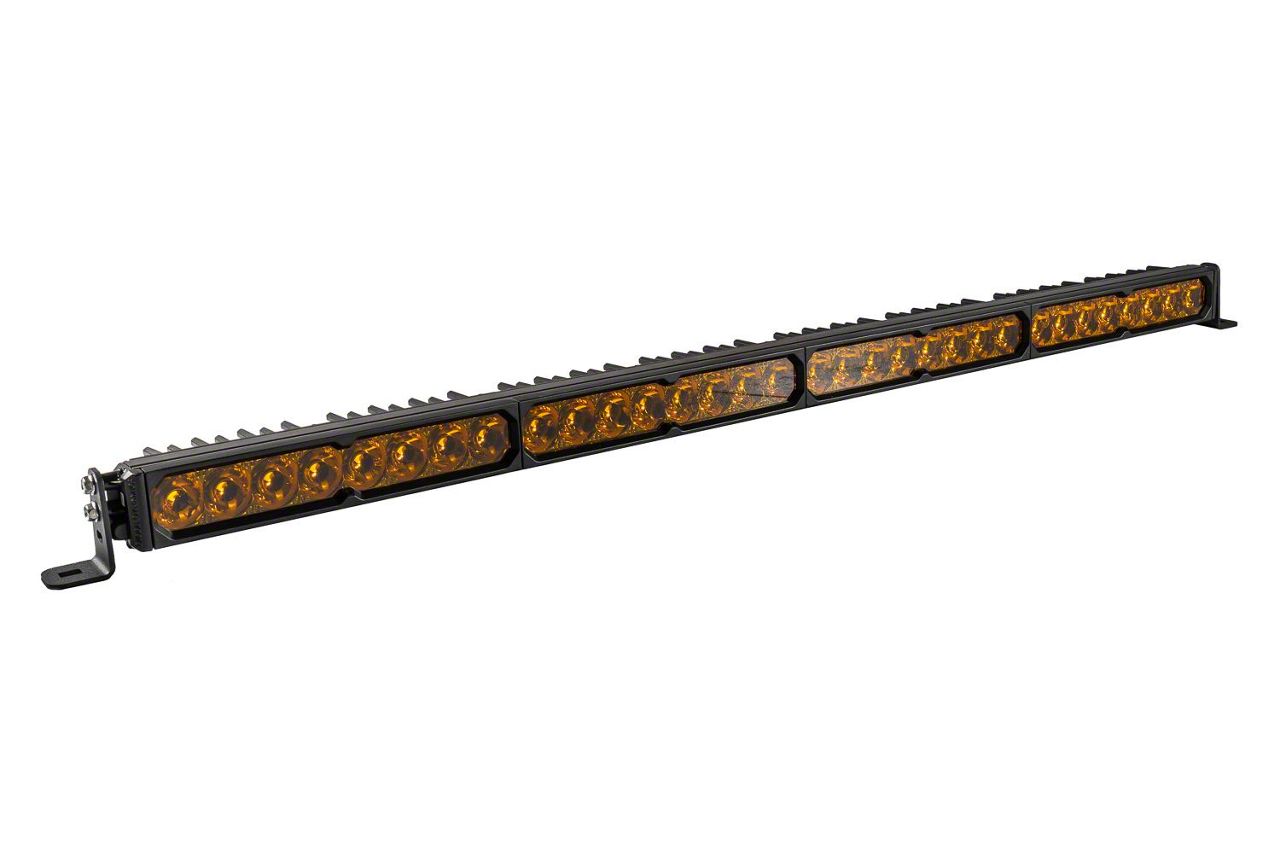

Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item J261352
Our Price

$1,049.95

Military, Medical & First Responders $52.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Patented TIR Optics For Maximum Efficiency And Output
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • True Amber Backlight Provides Unique Accent Lighting
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • Built For The Extreme With IP69K Waterproof Rating
      • Limited Lifetime Warranty
      • Made In USA With Global Materials
      • Peak Beam Intensity Ranges From 250,500 Cd To 665,000 Cd Depending On Model
      • Illuminance Ranges From 78 Lux To 6,650 Lux At 10 Meters
      • Raw Output Between 14,752 Lumens And 50,176 Lumens Based On Power Level
      • Output Color Is 3000K Yellow
      • Four Beam Angles Available: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
      • Power Consumption: Sport 165 Watts, Pro 225 Watts
      • Operating Voltage From 9 To 30 Volts
      • Operating Current At 12.8V: Sport 12.90 Amps, Pro 17.58 Amps
      • Uses Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters
      • Connector Type: Deutsch DT-P Input
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
      • Passive Cooling With Heatsink
      • IP69K Waterproof And High Pressure Resistant
      • Product Dimensions: 2.01 Inches Height, 41.63 Inches Width, 2.46 Inches Depth
      • Included Components: Wire Pigtail And Universal Bracket Set
      • Installation Time Ranges From 30 To 60 Minutes Using Basic Tools
      • Fits Universal; Some Adaptation May Be Required

      Description

      Advanced LED Lighting. The SS40 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot is designed to provide focused, high-intensity illumination for off-road driving, inclement weather, and specialized automotive lighting needs. It delivers superior beam patterns and a reliable output, enhancing safety and visibility in various driving conditions.

      Construction and Appearance. This light bar features a durable aluminum housing with an ASTM-standard powdercoat finish for corrosion resistance and longevity. The lens is crafted from polycarbonate for impact resistance, while the internal components include aluminum and copper PCBs for efficient thermal management. The amber backlight adds an eye-catching accent and functional illumination.

      Installation. Installation is straightforward and requires basic tools, taking approximately 30 to 60 minutes. Mounting does not generally require drilling, thanks to the universal bracket system, but some adaptation may be needed depending on the application.

      Warranty. The light bar comes with a limited lifetime warranty, providing peace of mind regarding durability and performance.

      Application. Fits universal applications; some adaptation may be required to accommodate specific mounting scenarios or vehicle configurations.

      Diode Dynamics DD8405
