Find LED Lights & Light Bars for your Wrangler

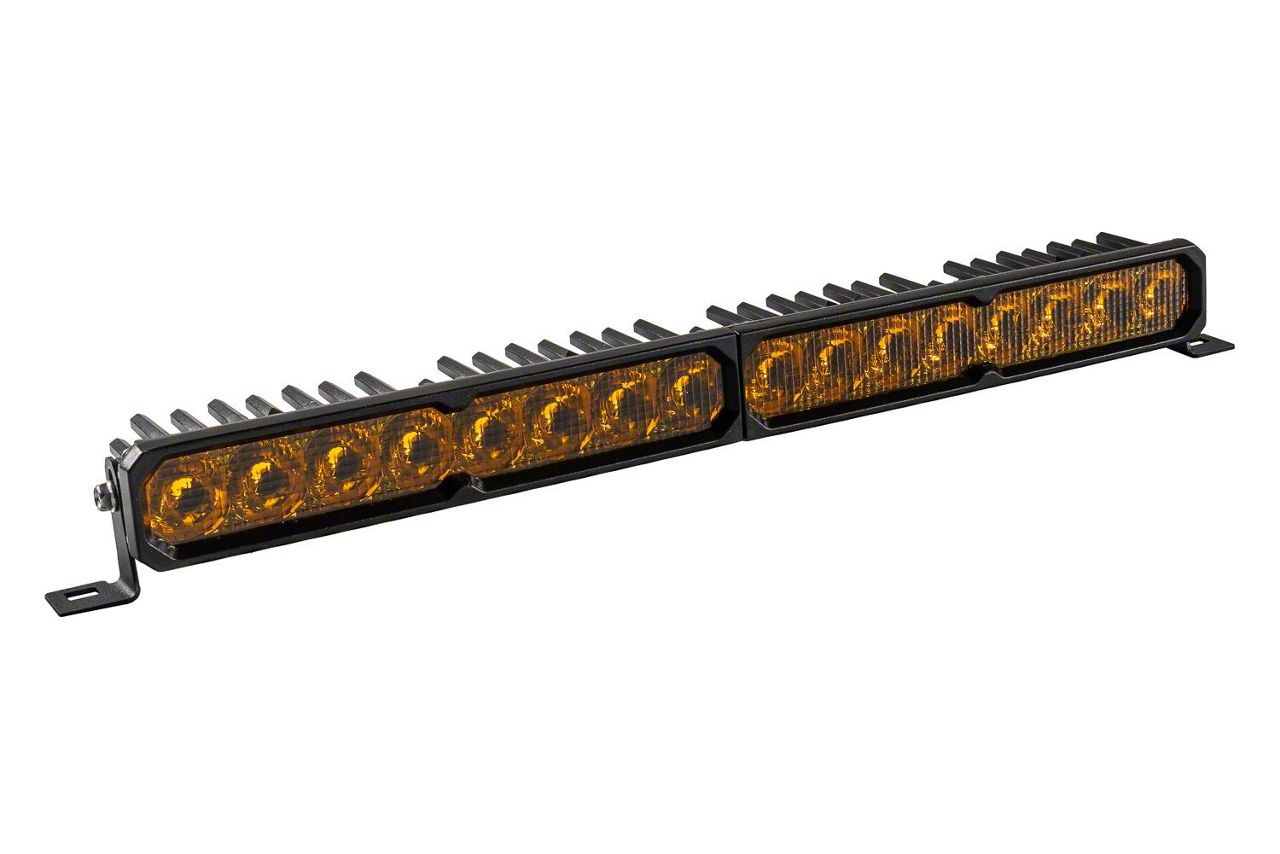

Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)

Item J261291
Product Image
Our Price

$549.95

Military, Medical & First Responders $27.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Patented TIR Optics For Maximum Efficiency And Output
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • True Amber Backlight Provides Unique Accent Lighting
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • Built For The Extreme With IP69K Waterproof Rating
      • Limited Lifetime Warranty
      • Made In USA With Global Materials
      • Optic/Power Level Includes SAE Driving Pro With 161,500 cd Peak Beam Intensity, 1,615 lux Illuminance At 10m, And 25,088 Lumens Raw Output
      • Beam Angle Combines 60°x30° Combo/Driving, 20°x12° SAE Driving, 100°x80° Flood, And 8°x8° Spot Configurations
      • Power Output Of 105 Watts For Pro Version
      • Operating Voltage Ranges From 9-30V
      • Current Draw Of 8.20 Amps At 12.8V
      • Polarity Specific Electrical Connection
      • Operating Temperature From -40°C To 85°C (-40°F To 185°F)
      • LED Emitters Use Osram Ostar Projection Compact And Lumileds Automotive Grade LEDs
      • Deutsch DT Input Connector
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
      • Passive Cooling With Heatsink Design
      • IP69K Certified Waterproof And High-Pressure Resistant
      • Product Dimensions Are 2.01 inches By 20.24 inches By 2.37 inches
      • Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set
      • Fits Universal; Some Adaptation May Be Required

      Description

      Advanced Lighting Performance. The SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving offers exceptional road illumination with its innovative optics and high output LEDs. It is designed to improve visibility in various conditions, especially inclement weather, by cutting through fog, rain, and snow with a true amber 3000K yellow light output. This light bar is ideal for automotive enthusiasts seeking a balance of distance and width in their auxiliary lighting setup.

      Construction and Appearance. This light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. The design incorporates fully encapsulated amber backlighting that fills the patented Total Internal Reflection (TIR) optic for a distinctive look. High-quality materials such as polycarbonate lens and stainless-steel brackets ensure long-lasting performance under harsh environments.

      Installation. Installation typically requires 30 to 60 minutes using basic hand tools with no drilling necessary when using the provided universal brackets. The kit comes complete with a wire pigtail and mounting hardware to facilitate straightforward fitting onto most vehicles.

      Warranty. This product comes with a limited lifetime warranty, providing confidence in its durability and quality.

      Application. Fits universal; some adaptation may be required.

      Diode Dynamics DD8230
