Find LED Lights & Light Bars for your Wrangler

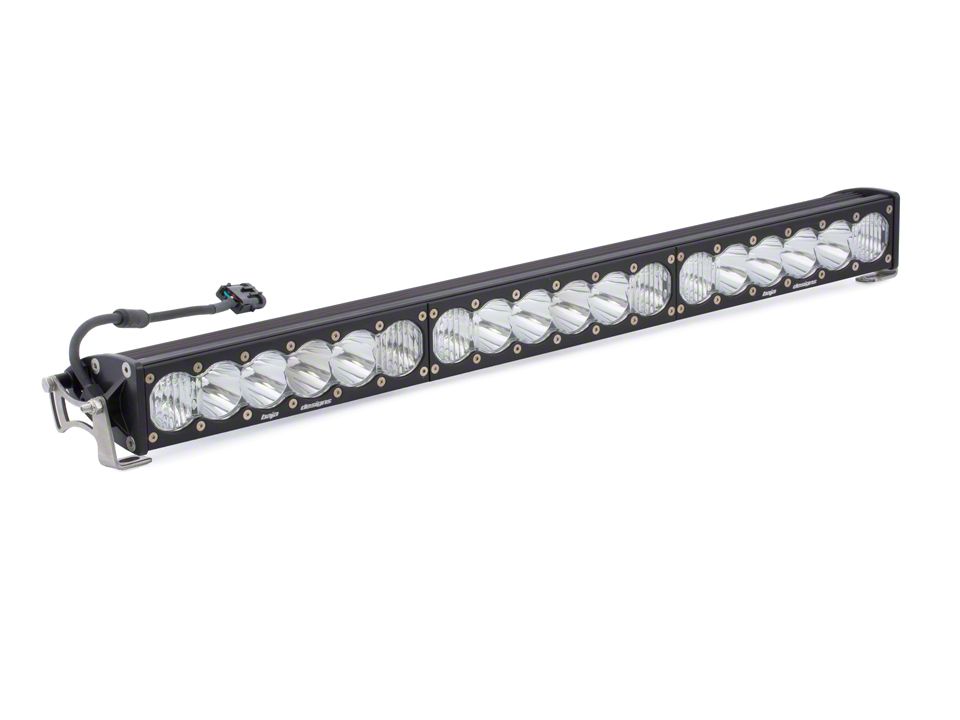

Baja Designs 30-Inch OnX6 LED Light Bar; Driving/Combo Beam (Universal; Some Adaptation May Be Required)
Item J111608
Our Price
$1,132.95 each
Military, Medical & First Responders
$56.65 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Depth 4.29 Inches _x000D_
- Height 2.69 Inches _x000D_
- Length 30 Inches _x000D_
- Weight 11.45 Pounds _x000D_
- Amperage Rating 21.7 Amps High 17.1 Amps Low _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Driving Combo _x000D_
- Bezel Material Billet Machined Aluminum _x000D_
- Brightness 31,910 Lumens High 25,450 Lumens Low _x000D_
- Description Straight Driving Combo Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes High Beam Low Beam _x000D_
- Lighting Quantity 18 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Description Mounting Brackets _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type OnX6 Plus 30 Inch LED Light Bar _x000D_
- Wattage 281 Watts High 225 Watts Low _x000D_
- Wiring Harness Included No _x000D_
- Standards Compliance Exceeds Mil-Std810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof Up To 9 Feet And Pressure Washable _x000D_
- Fits Universal Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 30 to 39 Inch |
| Light Bar Shape | Straight |
Description
High-Performance LED Light Bar. The Baja Designs 30-Inch OnX6 LED Light Bar; Driving/Combo Beam delivers superior illumination with a driving/combo beam pattern suitable for off-road and on-road use. It improves visibility and safety by providing powerful forward-projecting light designed to enhance the driving experience in challenging conditions.
_x000D__x000D_Construction and Appearance. Crafted from aircraft-grade aluminum with a mil-spec hard anodize finish, this light bar boasts billet machined aluminum bezels and a hardcoated polycarbonate lens. The housing is black, and stainless steel mounting brackets are included for a robust, durable build intended to withstand harsh off-road environments.
_x000D__x000D_Installation. Installation is straightforward and does not typically require drilling due to included mounting hardware designed for universal applications. The mounting brackets allow for secure attachment in various configurations.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, ensuring long-term protection and customer satisfaction.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on mounting location and vehicle specifics.
Baja Designs 453003
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Light Bar
- (1) Instruction Manual
- (1) Mounting Hardware
