FREE 1 to 3-Day Delivery on Orders $149+ Details
Find LED Lights & Light Bars for your Wrangler

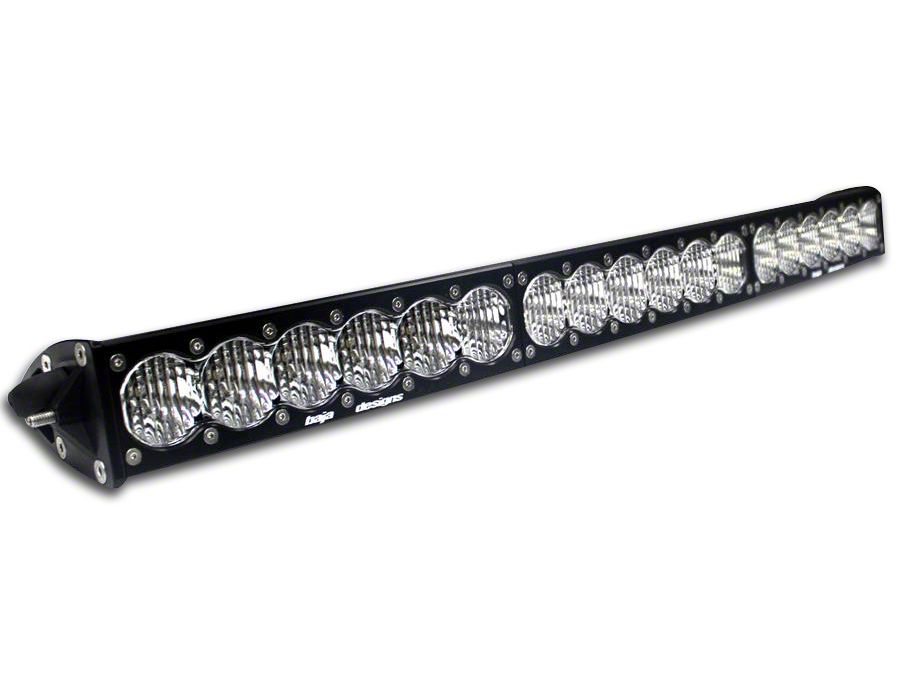

Baja Designs 30-Inch OnX6 Arc LED Light Bar; Wide Driving Beam (Universal; Some Adaptation May Be Required)
Item J111662
Our Price
$1,338.95 each
Military, Medical & First Responders
$66.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Depth 4.29 Inches _x000D_
- Height 2.69 Inches _x000D_
- Length 30 Inches _x000D_
- Weight 11.45 Pounds _x000D_
- Amperage Rating 21.7 Amps High; 17.1 Amps Low _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Wide Cornering _x000D_
- Bezel Material Billet Machined Aluminum _x000D_
- Brightness 32,070 Lumens High; 25,610 Lumens Low _x000D_
- Description Arc Wide Cornering Clear Lens _x000D_
- Housing Color Black _x000D_
- Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes High Beam Low Beam _x000D_
- Lighting Quantity 18 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Description Mounting Brackets _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type OnX6+ 30 Inch Arc LED Light Bar _x000D_
- Wattage 278 Watts High; 222 Watts Low _x000D_
- Wiring Harness Description Hi-Low Dongle _x000D_
- Wiring Harness Included No _x000D_
- Standards Compliance Exceeds MIL-STD810G IK10 Compliant IP69K Waterproof _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 30 to 39 Inch |
| Light Bar Shape | Curved |
Description
High-Performance Wide Beam. The Baja Designs 30-Inch OnX6 Arc LED Light Bar; Wide Driving Beam delivers exceptional illumination designed for enhanced cornering visibility. Ideal for off-road enthusiasts and professionals, this light bar ensures safer driving by projecting a bright, precise beam that covers a broad area for improved trail recognition.
_x000D__x000D_Construction and Appearance. Crafted from aircraft-grade aluminum with a Mil-Spec hard anodize finish, it features a billet machined aluminum bezel for durability and an appealing look. The clear hardcoated polycarbonate lens provides impact resistance and long-lasting clarity, while the black housing adds a sleek, tactical aesthetic.
_x000D__x000D_Installation. Installation is straightforward with included stainless steel mounting brackets, requiring minimal effort. No drilling is typically necessary, simplifying the mounting process on a variety of vehicles.
_x000D__x000D_Warranty. Comes with a limited lifetime warranty covering product performance and defects.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required for mounting and wiring connections.
Baja Designs 523004
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) 30" Arc LED Light Bar
- (2) Mounting Brackets
