J.E. Reel OE Style Front Driveshaft (12-18 Jeep Wrangler JK w/ Manual Transmission)Find parts that fit my vehicle
Item J193538
Our Price
$597.55
Military, Medical & First Responders
$29.88 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- This system is stronger than O.E. type applications and is recommended for stock to 4.5 inch lifts and up to 35 inch tires for mild use only. _x000D_
- At 35 inch tires, it is strongly recommended to use the 1350 drivelines. _x000D_
- 2-door models with 4.5 inch lifts are recommended to use the 1350 rear driveline. _x000D_
- J.E. Reel drivelines are designed to work with 2.5 to 4.5 inch lifts from most manufacturers. _x000D_
- Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length. _x000D_
- It’s best to measure all drivelines if possible. _x000D_
- JK 2007-2011 powertrain is installed at 6 inch. _x000D_
- JK 2012-2018 and JL 2018 powertrain is installed at 9.25 inch. _x000D_
- This means the transfer case rear output slopes down to the rear axle and the transfer case front output slopes up away from the front axle. _x000D_
- This is especially important to consider on the 2012-2016 model JK and 2018 model JL. _x000D_
- Maximum angle: 1310 C.V. less than 26 inch and 1350 C.V. less than 32 inch. _x000D_

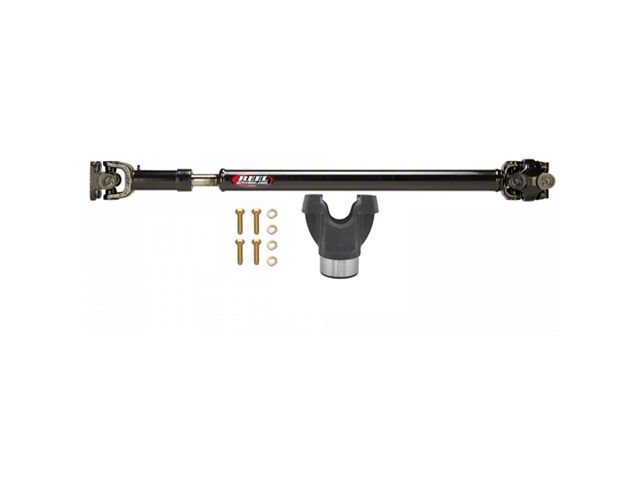

- Kit includes: 2 inch x .120 tubing, 1310 u-joints, cast u-bolt style yoke, 1310 u-bolts, T/C yoke, grade 8 hardware, installation instructions. _x000D_
- Fits 2012-2018 Jeep Wrangler JK with manual transmission. _x000D_
| Brand | J.E. Reel |
| Driveshaft Placement | Front |
| Driveshaft Material | Steel |
Description
This system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift and up to 35 inch tires for mild use only. At 35 inch tires it is strongly recommended to use the 1350 drivelines.
2 door models with 4.5 inch of lift are recommended to use our 1350 rear driveline. J.E. Reel Drivelines are designed to work with 2.5 to 4.5 inch lifts from most manufactures. Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length. It's best to measure all drivelines if possible.
The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.
JK 2007-2011 Powertrain is installed at 6 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.
Kit Includes:
J.E. Reel 3112JK-OE-24FM
