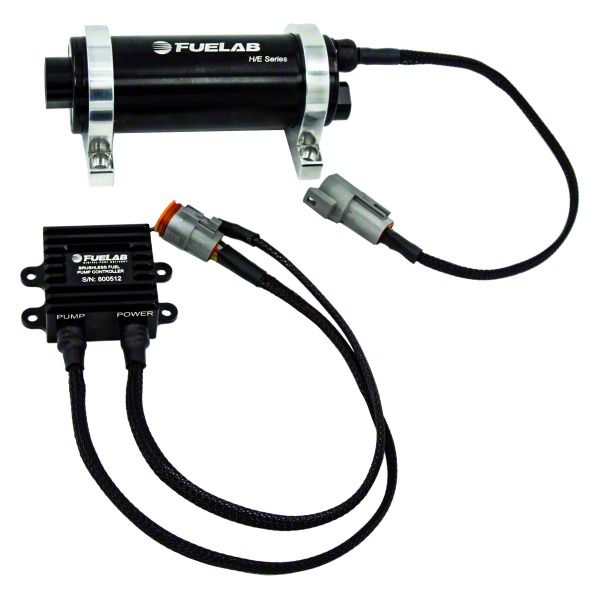

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)

Item TU62433
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Q&A

    Features

    • High Efficiency EFI In Line Fuel Pump, Rated Up To 1500HP, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump
    • Limited Lifetime Warranty
    • 625 LPH At 45PSI, 125PSI Max
    • 13.5v Operation
    • Compatible With Gasoline, Diesel, Methanol, And Ethanol
    • Twin Screw Rotor Pumping Mechanism
    • 125PSI Max Operating Pressure
    • 1500HP Power Support At Continuous Speed
    • Higher Efficiency Means Less Current Draw And Less Noise
    • Superior Priming Capabilities
    • Greater Resistance To Cavitation Vapor Lock
    • Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
    • Powerful High Flux Density Neodymium Rare Earth Magnets
    • No Motor Brushes To Wear Out Or Corrode
    • Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
    • 12 To 16 Volt Vehicle Electrical System Compatibility
    • Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
    • Continuous Duty Motor Speed
    • Compact, Lightweight Design, Less Than 3lbs
    • Overall Length 7.13 Inches, Diameter 2.0 Inches
    • Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II
    • Includes Two Billet Aluminum Mounting Brackets
    • Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
    • Accepts Standard Or Port Style -8AN Fittings
    • Fits Universal; Some Adaptation May Be Required

    Description

    High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH is designed to support up to 1500 horsepower, delivering reliable fuel flow at pressures up to 125 PSI. This pump is ideal for street and strip applications, providing superior priming capabilities and resistance to vapor lock for consistent engine performance. It is compatible with gasoline, diesel, methanol, and ethanol fuels, making it versatile for a range of high-performance vehicles.

    Construction and Appearance. The pump features billet aluminum construction with an anodized finish per MIL-A-8625, Type II, ensuring durability and corrosion resistance. It has a compact and lightweight design weighing less than 3 pounds, with an overall length of 7.13 inches and a diameter of 2 inches. The internal components include long-life, multi-fuel compatible fluorosilicone static seals and powerful neodymium rare earth magnets in the brushless motor.

    Installation. Installation is straightforward with included billet aluminum mounting brackets, requiring no complex modifications or drilling in most applications. The pump accepts standard or port style -8AN fittings for ease of integration into fuel systems.

    Warranty. This product is backed by a limited lifetime warranty, providing confidence in its build quality and longevity.

    Application. Fits Universal; Some Adaptation May Be Required

    Fuelab 47414
