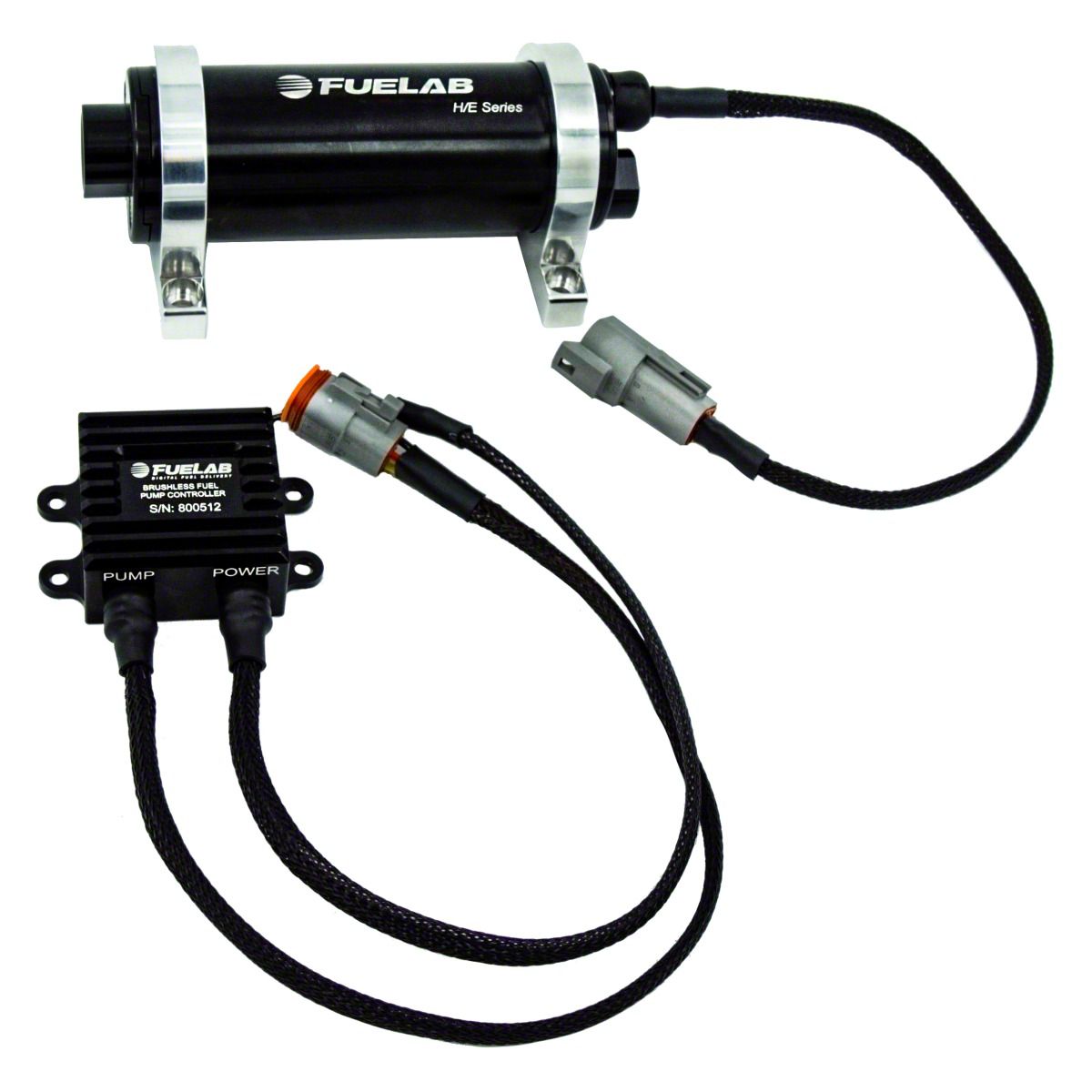

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item TU62434
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 2800 Hp Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger _x000D_
- 1100 LPH @ 45 PSI, 125 PSI Max, 13.5V _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight, Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compatible With 12 To 16 Volt Vehicle Electrical Systems _x000D_
- Model 72006 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design: Less Than 3 Lbs; Overall Length 7.13”, Diameter 2.0” _x000D_
- Billet Aluminum Construction With MIL-A-8625 Type II Anodized Finish _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Applications (Some Adaptation May Be Required) _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN, 1100 LPH) delivers superior fuel flow performance for automotive applications requiring up to 2800 horsepower. It is engineered to provide reliable, efficient fuel delivery for street and strip use with excellent resistance to cavitation and vapor lock. This pump supports a wide range of fuels including gasoline, diesel, methanol, and ethanol.
_x000D__x000D_Construction and Appearance. Featuring a compact, lightweight design made from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump offers enhanced durability and corrosion resistance. The motor incorporates powerful neodymium rare earth magnets in a wet brushless design, ensuring long-lasting operation without motor brushes or dynamic seals that can wear out.
_x000D__x000D_Installation. Installation is straightforward and typically requires no drilling, as the pump includes billet aluminum mounting brackets. Its compact size provides versatile mounting options compatible with most vehicle fuel systems.
_x000D__x000D_Warranty. This fuel pump is backed by a limited lifetime warranty, highlighting its quality and durability.
_x000D__x000D_Application. Designed to fit universal vehicle applications; some adaptation may be necessary for specific fuel systems or vehicle configurations.
