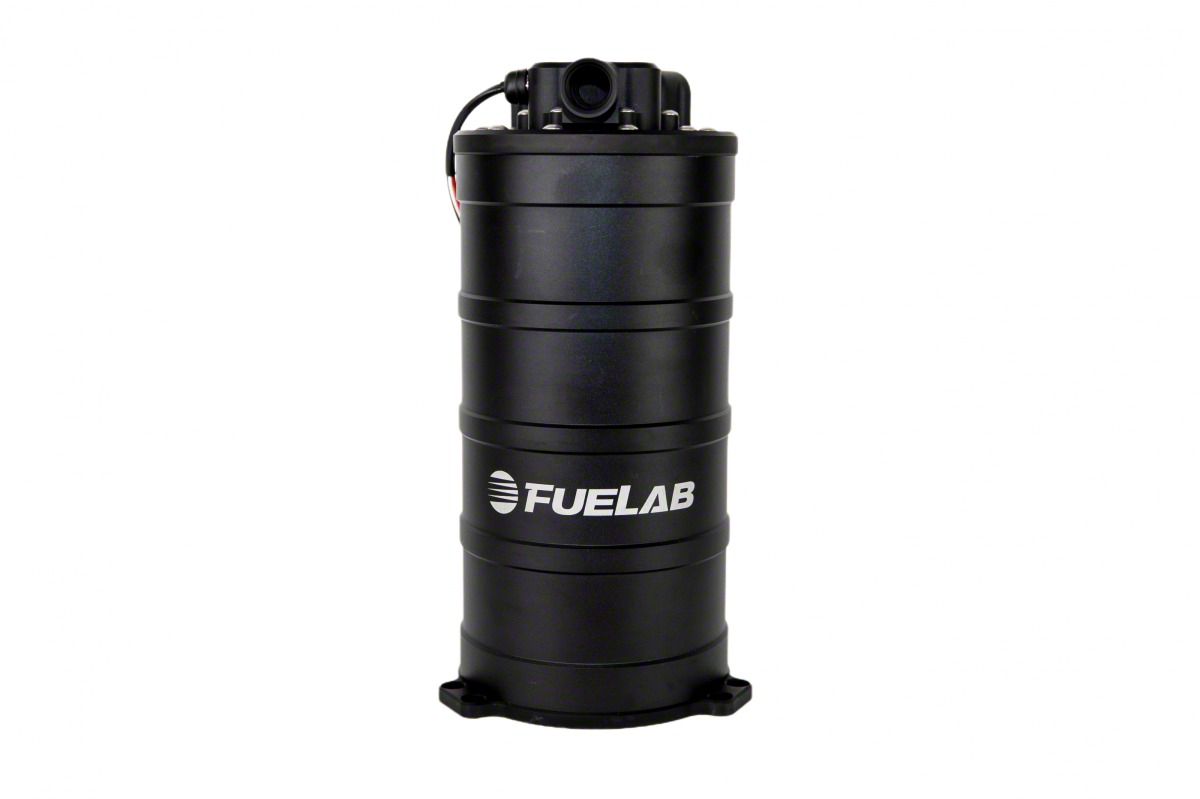

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item TU62456
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7 L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump 400 LPH
        • _x000D_
      • Allows High Fuel Flow Output With Minimal or No Modifications To The OE Fuel Tank And Module
        • _x000D_
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated To Flow 400 LPH At 45 PSI, 125 PSI Max
        • _x000D_
      • Integrated Controller With PWM Speed Control Compatible With PWM Output Frequency From 100Hz To 5000Hz
        • _x000D_
      • Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump And Racing Gasoline, And E85
        • _x000D_
      • Return Line Required To Return Excess Fuel Back To The Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Compatible With Most Aftermarket ECU's With PWM Output Frequency From 100Hz To 5000Hz
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Surge Solution. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump (850 HP; 290mm Tall) optimizes fuel delivery by providing a steady and high flow rate ideal for high horsepower applications. Designed to maintain a ready fuel volume and prevent sloshing, it ensures consistent fuel supply to the engine under demanding conditions.

      _x000D__x000D_

      Construction and Appearance. Crafted from billet aluminum with o-ring sealed connections and utilizing -8AN fuel ports, this system features durable materials and precision construction. Its compact 290mm tall design leverages a brushless twin screw DC fuel pump for reliable and efficient operation, compatible with pump gas, racing gasoline, and E85.

      _x000D__x000D_

      Installation. Installation requires minimal modifications to the original equipment fuel tank or module, simplifying integration into most setups. The included return line facilitates proper fuel management. Professional installation is recommended due to the complexity of the system.

      _x000D__x000D_

      Warranty. This fuel surge tank system is backed by a limited lifetime warranty, providing long-term assurance of quality and performance.
      _x000D_Application. Designed for universal fitment with some adaptation required depending on the vehicle, making it suitable for a wide range of automotive applications.

      Fuelab 61712
