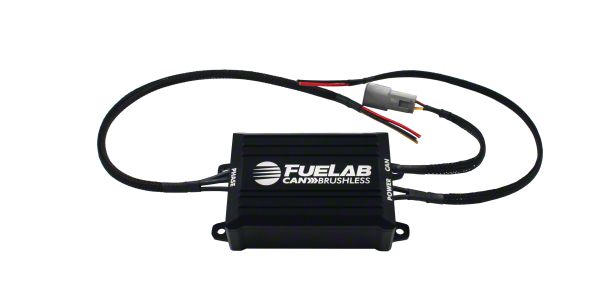

Fuelab CAN Bus Brushless Fuel Pump Controller; 50 AMP (Universal; Some Adaptation May Be Required)

Item TU62480
Product Image
1 Reviews of Fuelab
Our Price

$630.00

Military, Medical & First Responders $31.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Advanced CAN Integration
        • _x000D_
      • Electronic External CAN Bus Brushless Fuel Pump Controller Accepts Multiple Speed Inputs: PWM 0-5V or Fixed Speed
        • _x000D_
      • User-Friendly CANopen Communication Allows Easy Tie-In to Controller
        • _x000D_
      • CAN Customizable Calibration Options
        • _x000D_
      • Data Streams Include Pump State On/Off, Pump Voltage, Pump Amperage, Pump Motor Speed, PWM Frequency, and Controller Temperature
        • _x000D_
      • Offers Multiple Default and Data Codes for Accurate Diagnostics
        • _x000D_
      • Compatible with 3-Phase DC Brushless Fuel Pumps, 3-Wire Without Internal Controllers Only
        • _x000D_
      • 12 and 24V Electrical System Compatibility
        • _x000D_
      • 50 Amp Max Output Capacity
        • _x000D_
      • Billet Aluminum Enclosure
        • _x000D_
      • Backed by a Limited Lifetime Warranty
        • _x000D_
      • Compatible with PWM or 0-5V Input Signal from 100Hz to 5000Hz
        • _x000D_
      • Compatible with Most Aftermarket ECUs Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, Megasquirt
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Brushless Fuel Pump Control. The Fuelab CAN Bus Brushless Fuel Pump Controller - 50 AMP is designed to precisely regulate fuel pump speed and performance by utilizing advanced CAN bus communication and multiple speed input signals. It manages reliable fuel delivery by accepting PWM (100Hz–5000Hz), 0-5V input, or fixed speed commands, making it ideal for efficient fuel system operation across various engines.

      _x000D__x000D_

      Construction and Appearance. This controller features a durable billet aluminum enclosure that provides robust protection and effective heat dissipation. It is engineered to interface with 3-phase DC brushless fuel pumps without internal controllers and is compatible with both 12V and 24V electrical systems, ensuring versatility and reliable performance under demanding conditions.

      _x000D__x000D_

      Installation. Installation is straightforward, designed for external connection without the need for internal pump modifications or drilling. It supports easy integration with most aftermarket engine control units (ECUs) through CANopen communication, simplifying setup and tuning.

      _x000D__x000D_

      Warranty. The product is backed by a limited lifetime warranty, providing assurance of its durability and reliability.

      _x000D__x000D_

      Application. Fits universal setups; some adaptation may be required.

      Fuelab 72007
