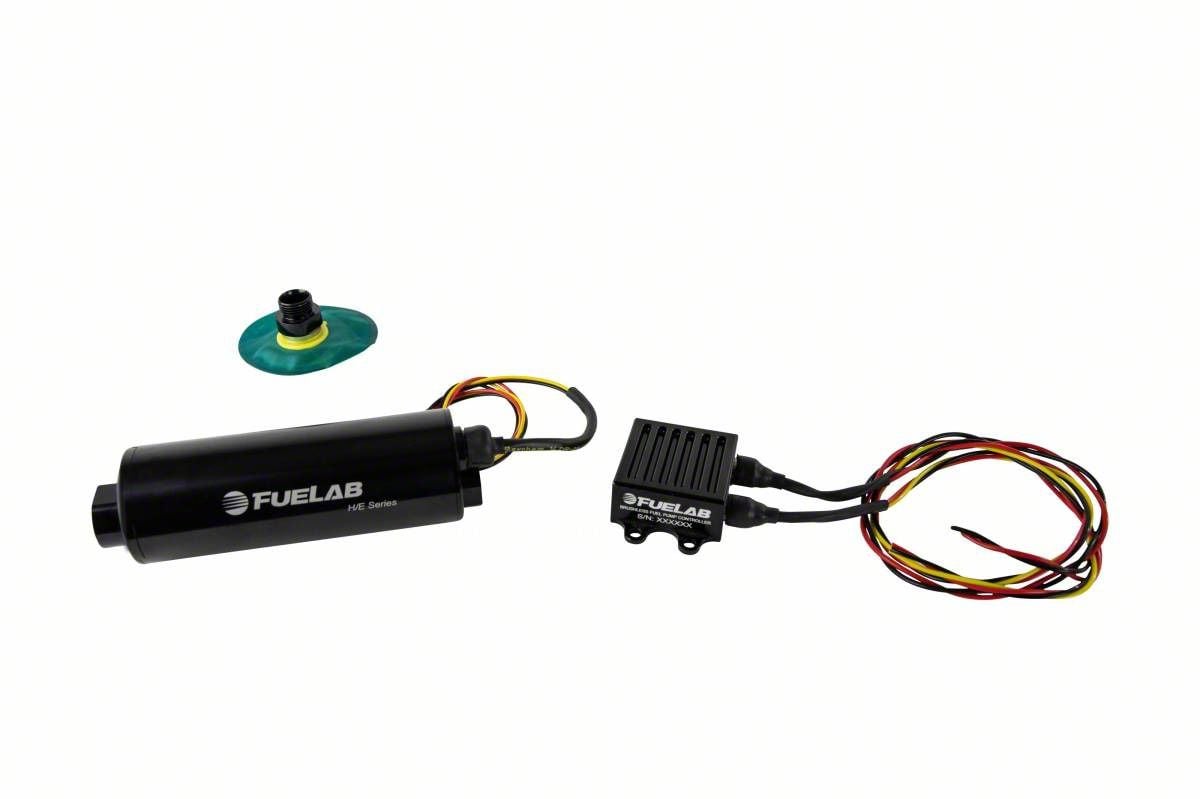

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item J252867
Our Price
$1,154.00
Military, Medical & First Responders
$57.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 300LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Supports 625HP At Continuous Speed On Pump Gas Naturally Aspirated _x000D_
- Higher Efficiency Means Less Current Draw and Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation and Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor Minimizes Current Draw _x000D_
- High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals To Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Includes Pump Controller Model 72004 For Full Speed PWM Or 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed Capability _x000D_
- Compact Lightweight Design Weighing Less Than 3 Pounds _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Pulse Width Modulation Compatible Between 100Hz And 5000Hz _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
Premium Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit (-8AN, 300 LPH) is engineered for high efficiency and reliable fuel flow across gasoline, diesel, methanol, and ethanol applications. This kit includes a 300 LPH twin screw brushless pump, a remote-mount PWM controller, and a 65-micron straining filter, ensuring precise fuel delivery under demanding conditions. It helps maintain optimal engine performance while reducing noise and current draw.
_x000D_Construction and Appearance. Made from billet aluminum with an anodized finish per MIL-A-8625 Type II, the pump is compact and lightweight at under 3 pounds. It features durable fluorosilicone static seals compatible with multiple fuel types, and a brushless DC motor design with high flux density Neodymium rare earth magnets to enhance longevity and efficiency.
_x000D_Installation. The included remote mount PWM controller allows straightforward installation without complex modifications. The pump supports standard or port style -8AN fittings, facilitating integration into existing fuel systems.
_x000D_Warranty. This product is backed by a limited lifetime warranty.
_x000D_Application. Fits universal applications; some adaptation may be required.
Fuelab 20811
