Fuelab High Power EFI In-Line Variable Speed Brushless Fuel Pump; -10AN; 220 GPH; Black (Universal; Some Adaptation May Be Required)
Item J253188
Our Price
$1,116.00
Military, Medical & First Responders
$55.80 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Power EFI In Line Fuel Pump Rated Up To 2200HP Street/Strip Speed Adjustable DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- High Efficiency Sling Vane Positive Displacement Pump _x000D_
- Special Housing Shape For Extremely Quiet Operation And Steady Pressure _x000D_
- Carbon 9 Vane Construction With Pressure Balanced Rotor For High Reliability _x000D_
- Lightweight Super Efficient DC Brushless Motor Reduces Current Draw _x000D_
- Low Mass Rotor For High Speed Reaction To Changes In Speed And Flow _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode; Low Sulfur Diesel No Problem _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- Internal Speed Controller For Variable Flow Operation _x000D_
- 12 To 24 Volt Vehicle Electrical System Compatibility _x000D_
- Accepts PWM Input For Speed Control _x000D_
- No Expensive Add On Voltage Regulators Or Pump Controllers Required _x000D_
- Continuous Duty Motor Speed Can Be Adjusted To Meet Dual Demand _x000D_
- Compact Lightweight Design; Less Than 3 Lbs; Overall Length 6.9 Inches; Diameter 2.63 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL A 8625 Type II _x000D_
- High Quality Mounting Brackets Included _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -10AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description

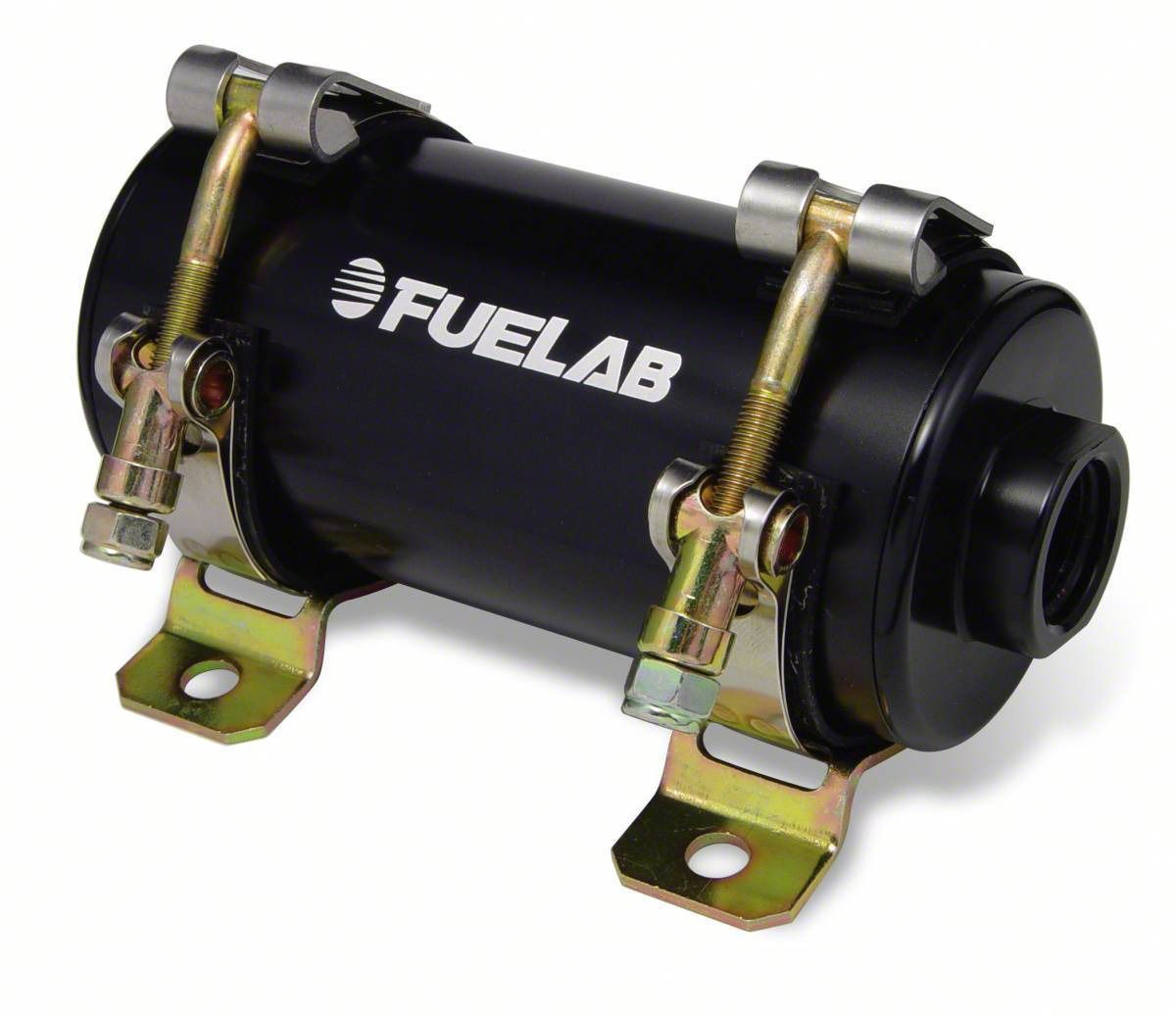

High Power Fuel Delivery. The Fuelab High Power EFI In-Line Variable Speed Brushless Fuel Pump (-10AN; 220 GPH; Black) is engineered for high-performance fuel delivery supporting engines up to 2200 horsepower. It ensures precise and consistent fuel flow under varying conditions, making it ideal for both street and strip applications. Its variable speed operation allows efficient fuel management to match engine demand.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with an anodized finish that meets MIL-A-8625 Type II standards, the pump offers durability and corrosion resistance. The compact, lightweight design weighs less than 3 pounds and measures 6.9 inches in length and 2.63 inches in diameter, featuring a sleek black anodized surface for enhanced aesthetics and longevity.
_x000D__x000D_Installation. Installation is straightforward with included high-quality mounting brackets and requires no special modifications or drilling in most applications. The pump is designed to accommodate standard or port style -10AN fittings, facilitating integration into existing fuel systems.
_x000D__x000D_Warranty and Application. The pump comes with a limited lifetime warranty, underscoring its reliability and build quality. It fits universal applications; however, some adaptation may be required for specific setups.
Fuelab 42402-1
