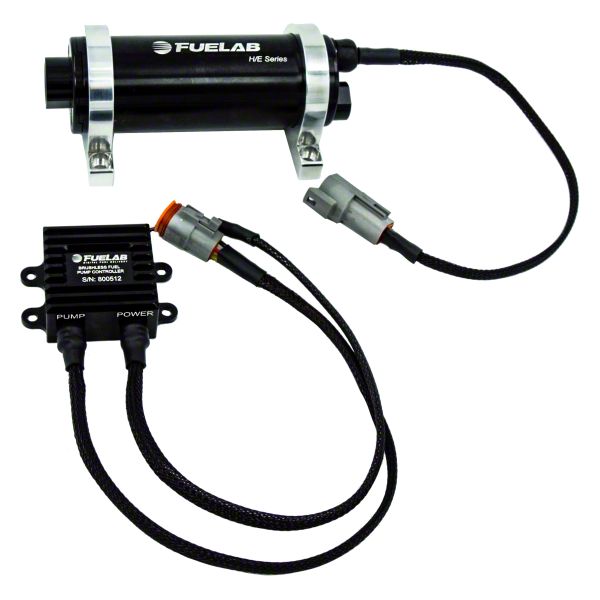

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item J252889
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 1250HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 550 LPH At 45PSI, 125PSI Max, 13.5v _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- 1250HP Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design; Less Than 3lbs, Overall Length 7.13 Inches, Diameter 2.0 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High Capacity Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH is engineered to provide reliable fuel delivery with a maximum output rating of 1250 horsepower. It supplies fuel at pressures up to 125 PSI and supports gasoline, diesel, methanol, and ethanol fuels. This pump is ideal for street and strip applications requiring consistent fuel flow and high efficiency.
_x000D__x000D_Construction and Appearance. Featuring a compact and lightweight billet aluminum housing finished with a MIL-A-8625 Type II anodized coating, this pump weighs under 3 pounds and measures 7.13 inches in length with a 2.0-inch diameter. It includes durable multi-fuel compatible fluorosilicone seals and incorporates premium neodymium rare earth magnets within its brushless motor design.
_x000D__x000D_Installation. Installation is straightforward and does not typically require drilling, as it comes with billet aluminum mounting brackets. Designed for easy integration with 12 to 16 volt electrical systems, it accepts both standard and port style -8AN fittings to accommodate various setups.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty for added confidence in its durability and performance.
Application. Suitable for universal applications; some adaptation may be necessary for specific configurations.
