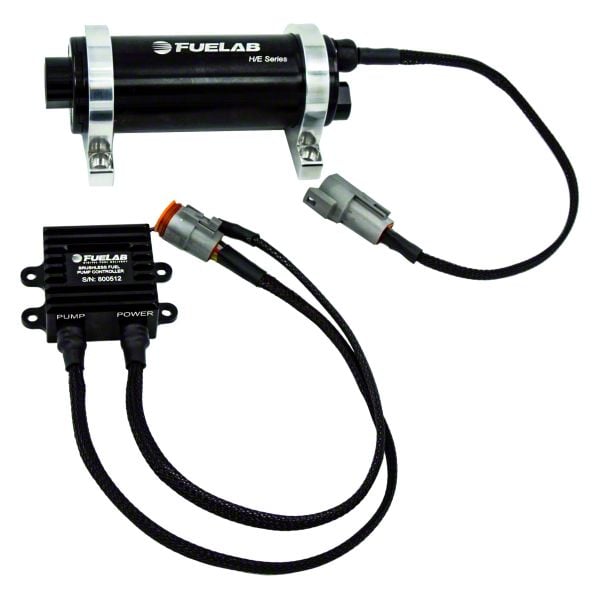

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item J252887
Our Price
$1,206.00
Military, Medical & First Responders
$60.30 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 625HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 300 LPH @ 45PSI, 125PSI Max Operating Pressure, 13.5V Rated Up To 625HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 625HP Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation and Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible _x000D_
- Wet Motor Design Without Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design, Less Than 3 Lbs; Overall Length 7.13”, Diameter 2.0” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH is engineered to deliver reliable fuel flow for applications up to 625 horsepower. It supports fuel injection systems requiring consistent, high-pressure fuel delivery, suitable for both street and strip vehicles. The pump enhances fuel system performance while reducing noise and electrical current draw.
_x000D__x000D_Construction and Appearance. Featuring a durable billet aluminum body with a MIL-A-8625 Type II anodized finish for corrosion resistance, this pump is compact and lightweight, weighing under 3 pounds, with a length of 7.13 inches and a 2.0-inch diameter. It uses high-quality fluorosilicone static seals compatible with multiple fuel types for extended service life.
_x000D__x000D_Installation. Installation is straightforward using the included billet aluminum mounting brackets, requiring no complex modifications or drilling for most applications. It accepts both standard and port style -8AN fittings, simplifying integration into existing fuel systems.
_x000D__x000D_Warranty. This pump is supported by a limited lifetime warranty.
_x000D__x000D_Application. Designed for universal fitment; some adaptation may be necessary.
Fuelab 47411
