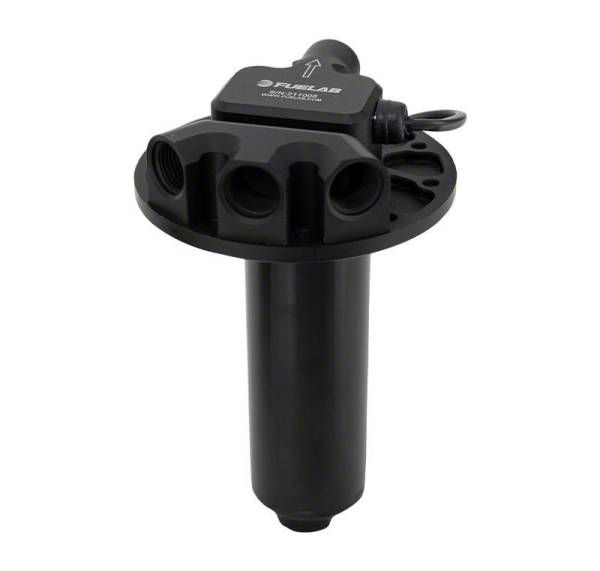

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item J252950
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 400 LPH @ 45 PSI, 125 PSI MAX _x000D_
- 13.5V Rated Up to 850 HP _x000D_
- Compatible with Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Maximum Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw and Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance to Cavitation (Vapor Lock) _x000D_
- 12 to 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor to Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compact, Lightweight Design, Less Than 2.5 lbs _x000D_
- Overall Length 8”, Pump Diameter 2” _x000D_
- Billet Aluminum Construction with Anodize per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern for Easy Use with Fuel Cells or Fabricated Reservoirs _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL PUMP. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump, rated for up to 850 HP and delivering 400 LPH at 45 PSI, is engineered to provide efficient and reliable fuel supply for high horsepower engines. Designed for in-tank mounting, it supports fuel flow at pressures up to 125 PSI. Compatible with gasoline, diesel, methanol, and ethanol, its advanced design maintains optimal engine performance under demanding conditions.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Constructed from billet aluminum and anodized per MIL-A-8625 Type II, this pump features a compact, lightweight design weighing less than 2.5 pounds. It incorporates high-quality fluorosilicone seals compatible with multiple fuels and utilizes neodymium rare earth magnets for enhanced brushless motor efficiency. The pump's flange mount follows a SAE 10-bolt pattern for straightforward installation on fuel cells or fabricated reservoirs.
_x000D__x000D_INSTALLATION. Designed for flange mounting, this pump allows relatively easy installation without extensive modifications or drilling. Its compact size and standardized mounting pattern facilitate integration into existing fuel systems with minimal adaptation required.
_x000D__x000D_WARRANTY. This product is covered by a limited lifetime warranty, ensuring long-term reliability and customer confidence.
_x000D__x000D_APPLICATION. Fits universal; some adaptation may be required.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
