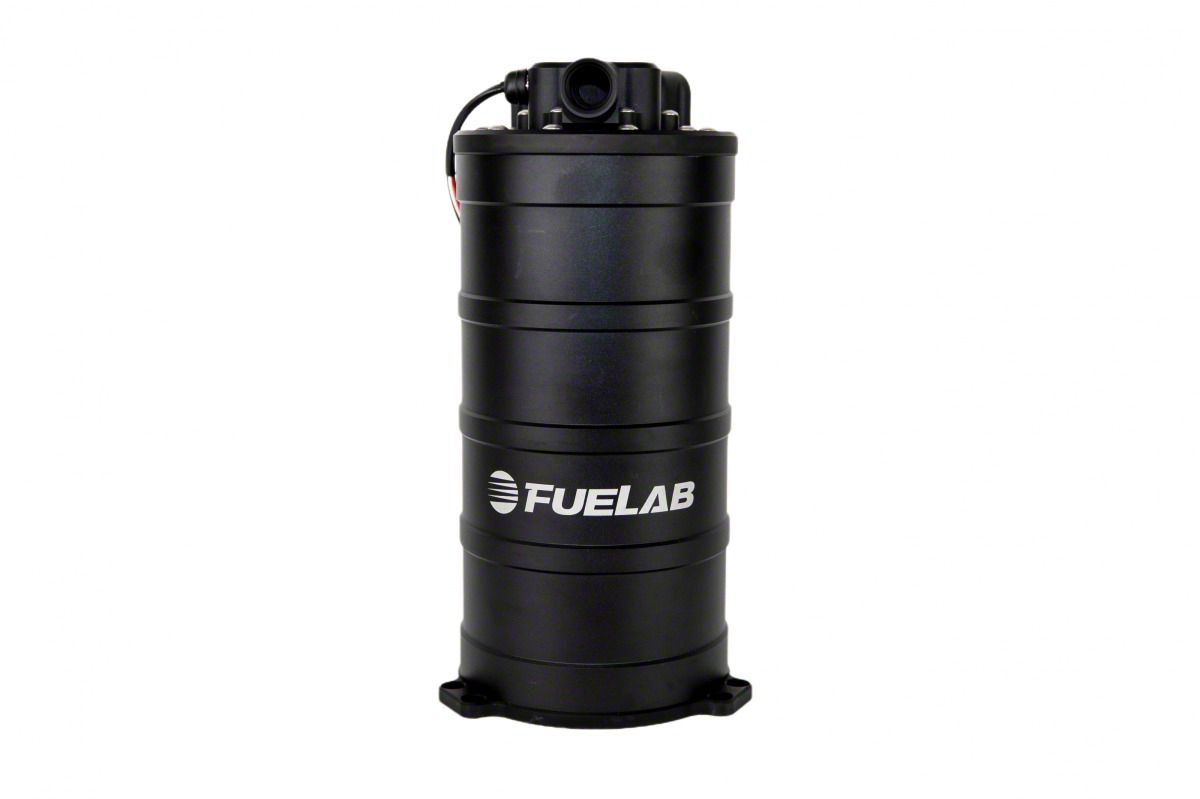

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item J252913
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • 2.7L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • Allows High Fuel Flow Output with Minimal or No Modifications to the OEM Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Includes Single Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • Rated to Flow 400 LPH at 45 PSI, 125 PSI Max
        • _x000D_
      • Integrated Controller with PWM Speed Control Compatible from 100Hz to 5000Hz Output Frequency
        • _x000D_
      • Billet Aluminum and O-Ring Construction with -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gasoline, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required; Returns Excess Fuel Back to Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed by a Limited Lifetime Warranty
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Fuel Delivery. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall provides a high-capacity, reliable fuel supply solution designed to ensure consistent fuel flow and prevent fuel starvation during aggressive driving conditions. It is engineered to maintain a ready volume of fuel, reducing sloshing and supporting optimal engine performance under high load.

      _x000D__x000D_

      Construction and Appearance. Crafted from billet aluminum with O-ring sealed construction, this fuel surge tank features high-quality materials that offer durability and resistance to corrosion. The system includes -8AN fuel ports and an integrated controller with pulse width modulation speed control, housed in a compact, 290mm tall design.

      _x000D__x000D_

      Installation. Installation is straightforward, typically requiring little to no modification of the OEM fuel tank or module. Some adaptation may be necessary to fit different vehicle configurations, but extensive drilling or complex fabrication is generally not required.

      _x000D__x000D_

      Warranty. This system is backed by a limited lifetime warranty, providing lasting confidence and product support.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required.

      Fuelab 61712
