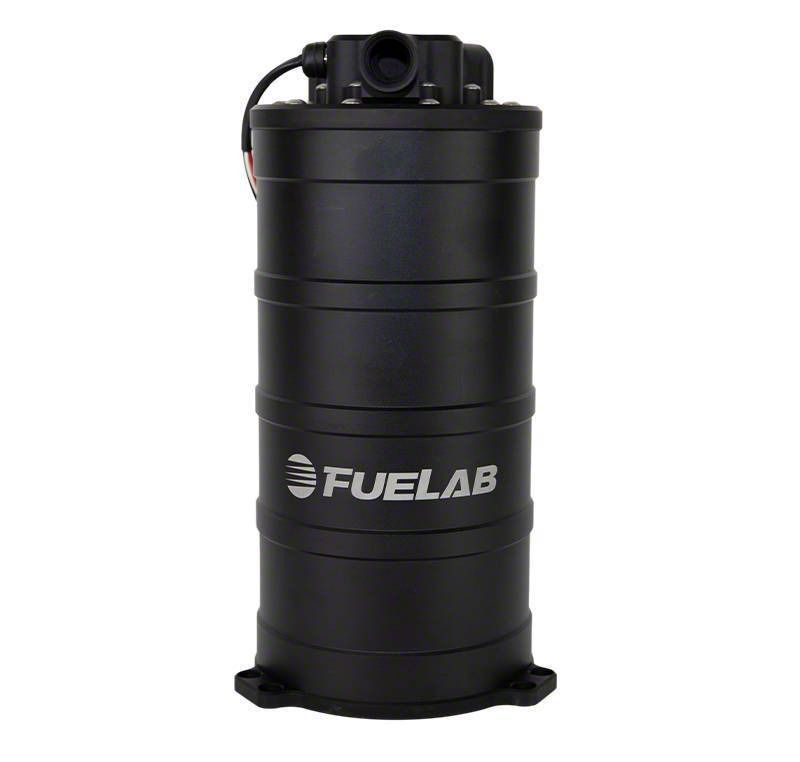

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item J252914
Product Image
1 Reviews of Fuelab
Our Price

$1,784.00

Military, Medical & First Responders $89.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump and Speed Control
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Allows High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated to Flow 625 LPH at 45psi; Max Pressure 125psi
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum and O-ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gas, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required to Return Excess Fuel to the Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE FUEL SURGE TANK. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm tall is designed to maintain a constant fuel supply to high-output engines by preventing fuel sloshing and starvation. It is ideal for racing or high-performance applications where consistent fuel delivery is critical for optimal engine performance and reliability.

      _x000D_

      CONSTRUCTION AND APPEARANCE. This fuel surge tank features billet aluminum construction with O-ring seals and -8AN fuel ports for superior durability and leak resistance. The tank includes a single brushless twin screw pump rated to flow 625 liters per hour and is finished with precision machining that ensures a robust and professional appearance.

      _x000D_

      INSTALLATION. Installation requires moderate mechanical skills and does not typically require major modifications or drilling to the original equipment fuel tank or module, simplifying the upgrade process while providing a secure and efficient system.

      _x000D_

      WARRANTY. The system is backed by a limited lifetime warranty, providing confidence in its long-term performance and quality.

      _x000D_

      APPLICATION. Fits universal applications; some adaptation may be required depending on the specific vehicle setup.

      Fuelab 61714
