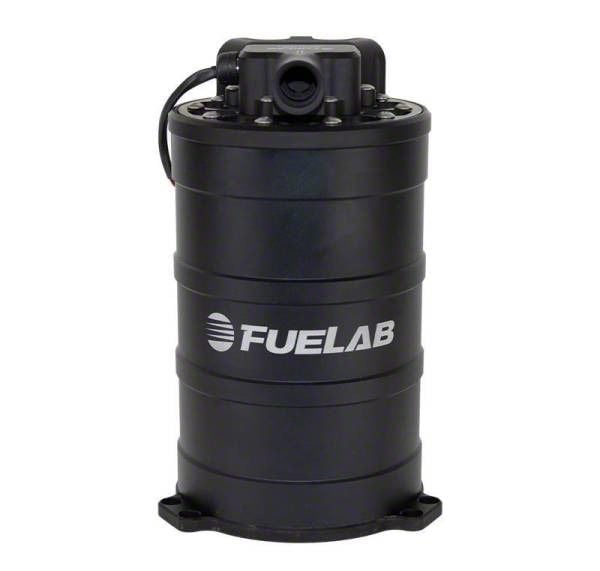

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item J252911
Our Price
$1,773.00
Military, Medical & First Responders
$88.65 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System 1500 HP Brushless Twin Screw Pump Speed Controllable _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump 625 LPH _x000D_
- Allows High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 235mm Tall _x000D_
- FST Rated Volume: 2.1 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 625 LPH at 45 PSI, 125 PSI Max _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports _x000D_
- Compatible with Pump and Racing Gasoline, and E85 _x000D_
- Return Line Required – Returns Excess Fuel Back to the Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Pulse Width Modulation Compatibility (PWM) _x000D_
- Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100 Hz to 5000 Hz _x000D_
- Universal Fitment, Some Adaptation May Be Required _x000D_
Description
Highly Efficient Fuel System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 1500 HP and standing 235mm tall, is engineered to provide consistent, high-flow fuel delivery for high-performance applications. It maintains a ready volume of fuel to prevent sloshing and starvation, ensuring a reliable fuel supply during demanding driving conditions. This system is ideal for vehicles requiring up to 1500 horsepower support while minimizing modifications to the original fuel tank.
_x000D__x000D_Construction and Appearance. The tank features a billet aluminum body with precision O-ring sealing and -8AN fuel ports for superior durability and leak prevention. The system integrates a speed-controllable brushless twin screw fuel pump that delivers 625 liters per hour at 45 psi, housed within a compact 235mm tall assembly. Its robust design withstands racing fuels including gasoline and E85 blends.
_x000D__x000D_Installation. Installation generally requires moderate mechanical skill without extensive modifications to the original fuel tank or module. The system is designed to integrate easily using existing fuel lines and requires a return fuel line connection for optimal operation.
_x000D__x000D_Warranty. This fuel surge tank system is backed by a limited lifetime warranty, providing long-term confidence and reliability.
_x000D__x000D_Application. Fits universal applications, with some adaptation possibly needed to accommodate different vehicle configurations.
Fuelab 61704
