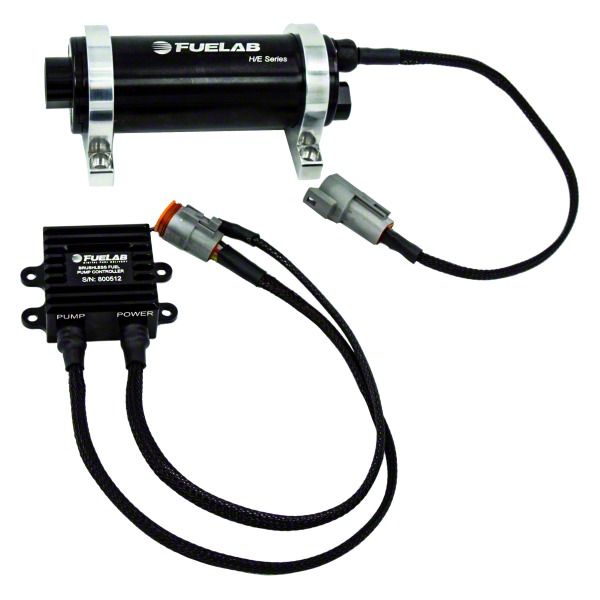

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item JG55134
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In Line Fuel Pump Rated Up To 1500HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 625 LPH At 45PSI 125PSI Max 13.5V Rated Up To 1500HP _x000D_
- Compatible With Gasoline Diesel Methanol And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation Vapor Lock _x000D_
- Lightweight Super-efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode Low-Sulfur Diesel No Problem _x000D_
- Wet Motor Design No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design Less Than 3lbs Overall Length 7.13” Diameter 2.0” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN, 625 LPH) is engineered to provide consistent and reliable fuel delivery for high horsepower applications up to 1500HP. It is ideal for street and strip use where dependable performance is essential. Its compatibility with various fuel types and high pressure rating make it adaptable to many engine configurations.
_x000D__x000D_Construction and Appearance. Constructed with a billet aluminum body featuring an anodized finish per MIL-A-8625 Type II, this fuel pump offers durability and corrosion resistance. It is compact and lightweight, weighing under 3 pounds, with dimensions of 7.13 inches in length and 2.0 inches in diameter, ensuring easy integration and a professional appearance in fuel systems.
_x000D__x000D_Installation. Installation requires moderate mechanical skill and does not require drilling, as it includes billet aluminum mounting brackets. The pump accepts standard -8AN fittings, simplifying connection to common fuel lines.
_x000D__x000D_Warranty. Covered by a limited lifetime warranty, this product ensures long-term quality and performance. Application. Designed to fit universal applications, though some adaptation may be necessary based on specific vehicle setups.
