Find Fuel System Parts for your Gladiator

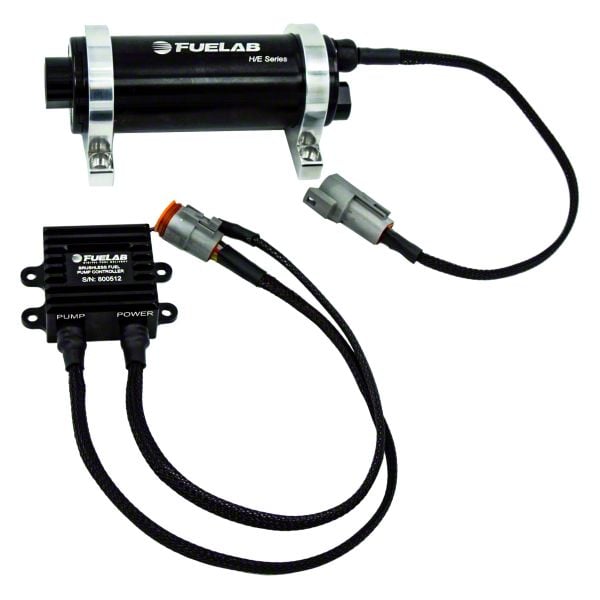

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item JG55133
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 1250HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 550 LPH At 45 PSI, 125 PSI Max, 13.5V Rated Up To 1250HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compatible With 12 To 16 Volt Vehicle Electrical Systems _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design Weighing Less Than 3lbs, Overall Length 7.13 Inches, Diameter 2.0 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH is designed to provide reliable, consistent fuel flow for high-performance vehicles, supporting up to 1250 horsepower. Its superior priming capability and enhanced resistance to cavitation make it ideal for demanding street and strip applications.
_x000D__x000D_Construction and Appearance. Crafted from billet aluminum with a MIL-A-8625 Type II anodized finish, this fuel pump features a compact and lightweight design. It utilizes durable, multi-fuel compatible fluorosilicone static seals and comes with two billet aluminum mounting brackets for secure installation.
_x000D__x000D_Installation. Installation is straightforward using the included mounting brackets. Compatible with both standard and port style -8AN fittings, the pump typically requires no drilling or complex modifications for proper mounting and connection.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty.
Application. Fits universal applications; some adaptation may be required.
Fuelab 47413
