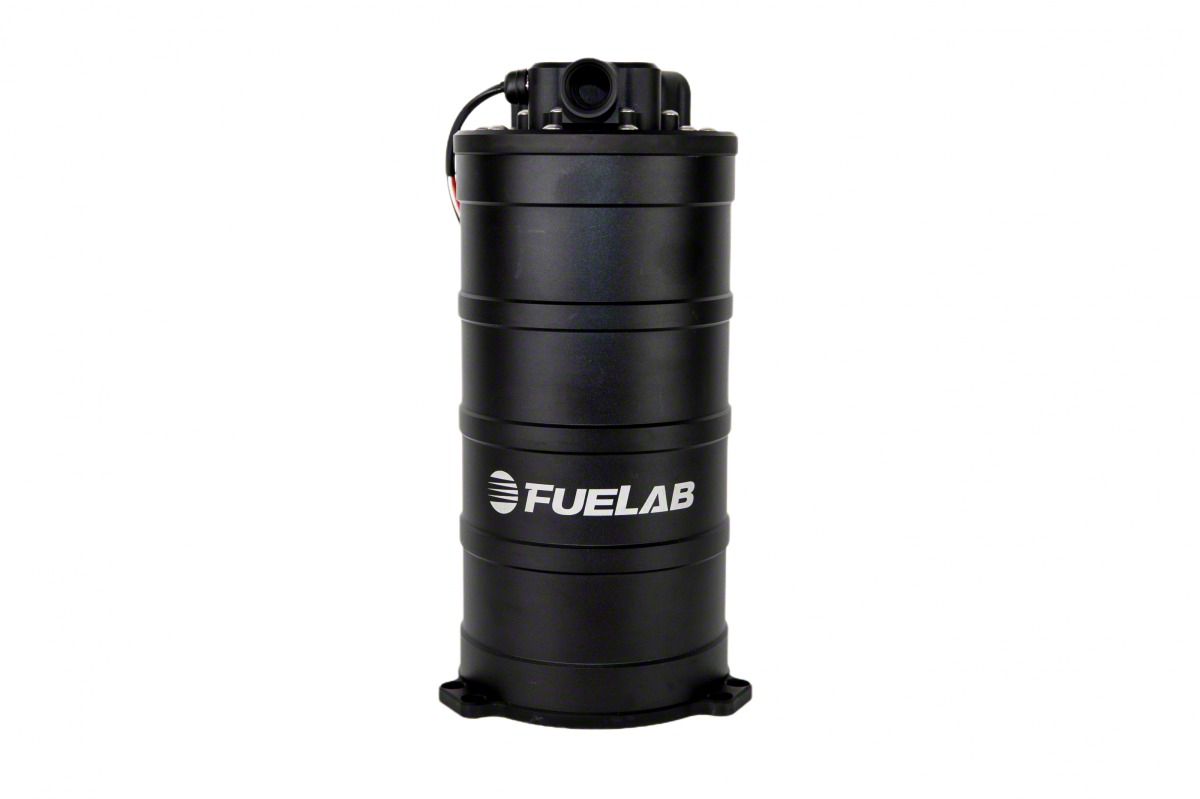

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item JG55157
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 850 HP Capacity, SAE Plate Mount, Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7L Fuel Surge Tank System Featuring Speed-Controllable Twin Screw DC Brushless Fuel Pump, 400 LPH Flow Rate
        • _x000D_
      • Enables High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 290mm Tall Design
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated Flow: 400 LPH at 45 PSI, Maximum Pressure 125 PSI
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum and O-Ring Construction with -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gasoline, Racing Gasoline, and E85 Fuel Types
        • _x000D_
      • Return Line Required to Return Excess Fuel Back to Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz
        • _x000D_
      • Universal Fitment; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for up to 850 HP and standing 290mm tall, is engineered to provide reliable and consistent fuel flow for high horsepower applications. It maintains a sufficient fuel reserve to prevent starvation during vehicle movement or racing conditions, ensuring optimal engine performance under demanding environments.

      _x000D__x000D_

      Construction and Appearance. Constructed from billet aluminum with precision O-ring seals, this fuel surge tank system offers durability and leak resistance. The sleek 290mm tall tank includes integrated -8AN fuel ports and a brushless twin screw pump housed within the unit, delivering efficient and quiet operation. The design combines strength with functional aesthetics.

      _x000D__x000D_

      Installation. Installation requires basic mechanical skills and some adaptation for universal fitment but does not involve major modifications to the original fuel tank or module. The system mounts securely with SAE plate provisions and utilizes standard fuel line fittings.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty for reliability and longevity in demanding applications.
      Application. Universal fitment; some adaptation may be necessary.

      Fuelab 61712
