Find Fuel System Parts for your Gladiator

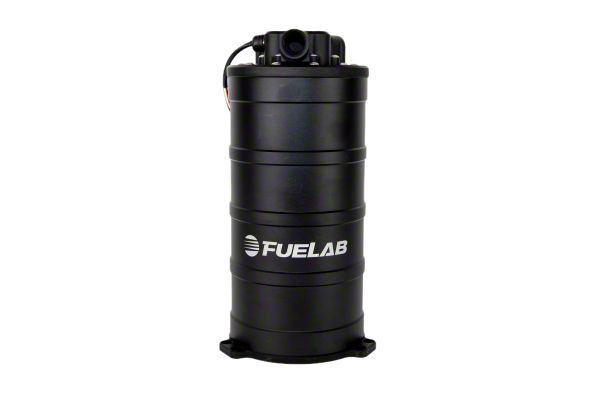

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item JG55156
Product Image
1 Reviews of Fuelab
Our Price

$1,626.00

Military, Medical & First Responders $81.30 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • 2.7L Fuel Surge Tank System With Speed Controllable, Twin Screw DC Brushless Fuel Pump, 300 LPH
        • _x000D_
      • Allows High Fuel Flow Output With Little Or No Modifications To The OE Fuel Tank And Module
        • _x000D_
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
        • _x000D_
      • 290MM Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated To Flow 300 LPH At 45 PSI, 125 PSI Max
        • _x000D_
      • Integrated Controller With PWM Speed Control
        • _x000D_
      • Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump Gasoline, Racing Gasoline, And E85
        • _x000D_
      • Return Line Required, Returns Excess Fuel Back To The Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed By A Limited Lifetime Warranty
        • _x000D_
      • Pulse Width Modulation Compatibility From 100Hz To 5000Hz
        • _x000D_
      • Compatible With Most Aftermarket ECUs With PWM Output Frequency
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 290mm Tall is engineered to deliver consistent, high fuel flow to the engine. It eliminates fuel starvation caused by sloshing in the main tank, ensuring a steady supply during high demand conditions. This system is ideal for high-performance and racing applications requiring reliable fuel delivery.

      _x000D__x000D_

      Construction and Appearance. The surge tank features a billet aluminum body with precision O-ring sealing for exceptional durability and leak resistance. It includes -8AN fuel ports for professional-grade fuel line connections. The modern brushless twin screw pump is integrated with a PWM controller, providing variable speed operation to enhance efficiency and performance.

      _x000D__x000D_

      Installation. Installation requires moderate mechanical skills and may involve some adaptation to existing fuel lines, but no major modifications to the OEM fuel tank or module are necessary. The system is designed for straightforward mounting and integration with most aftermarket ECUs.

      _x000D__x000D_

      Warranty. This fuel surge tank system is backed by a limited lifetime warranty, providing long-term protection and peace of mind.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required.

      Fuelab 61711
