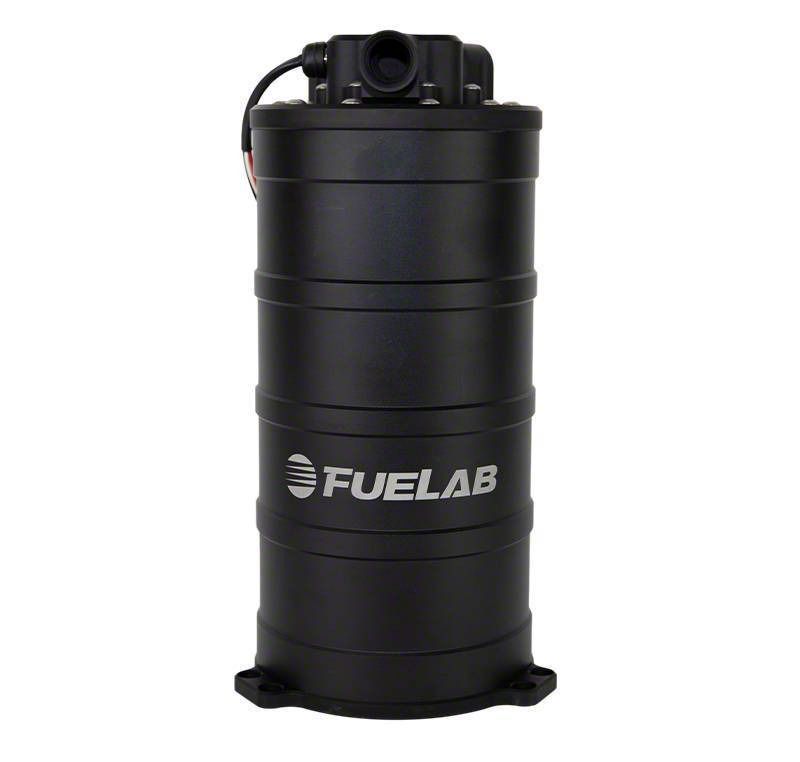

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item JG55158
Product Image
1 Reviews of Fuelab
Our Price

$1,784.00

Military, Medical & First Responders $89.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump Speed Controllable
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Allows For High Fuel Flow Output With Little Or No Modifications To The OE Fuel Tank And Module
        • _x000D_
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated To Flow 625lph At 45psi, 125psi Max
        • _x000D_
      • Integrated Controller With PWM Speed Control
        • _x000D_
      • Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump Gas, Racing Gasoline, And E85
        • _x000D_
      • Return Line Is Required; Returns Excess Fuel Back To The Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed By A Limited Lifetime Warranty
        • _x000D_
      • Compatible With Most Aftermarket ECU's With PWM Output Frequency From 100Hz To 5000Hz
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall delivers dependable high fuel flow output designed to support engines up to 1500 horsepower. This system maintains a steady supply of fuel by preventing fuel sloshing and ensuring a ready volume in the surge tank, critical for high-performance and racing applications.

      _x000D__x000D_

      Construction and Appearance. This fuel surge tank is crafted from billet aluminum, featuring durable O-ring sealing and precision-machined -8AN fuel ports. The finish provides a professional, clean metallic aluminum appearance that assures strength, longevity, and leak-free performance under demanding conditions.

      _x000D__x000D_

      Installation. Installation of this surge tank system requires minimal modifications to the original equipment fuel tank and module, typically with no drilling necessary. This design streamlines the setup process for both professional installers and enthusiasts.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing long-term assurance of quality and dependability.

      _x000D__x000D_

      Application. Fits universal applications with some adaptation required, suitable for a wide range of vehicles and setups without specific exclusions noted.

      Fuelab 61714

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
