Find Mufflers for your Tundra

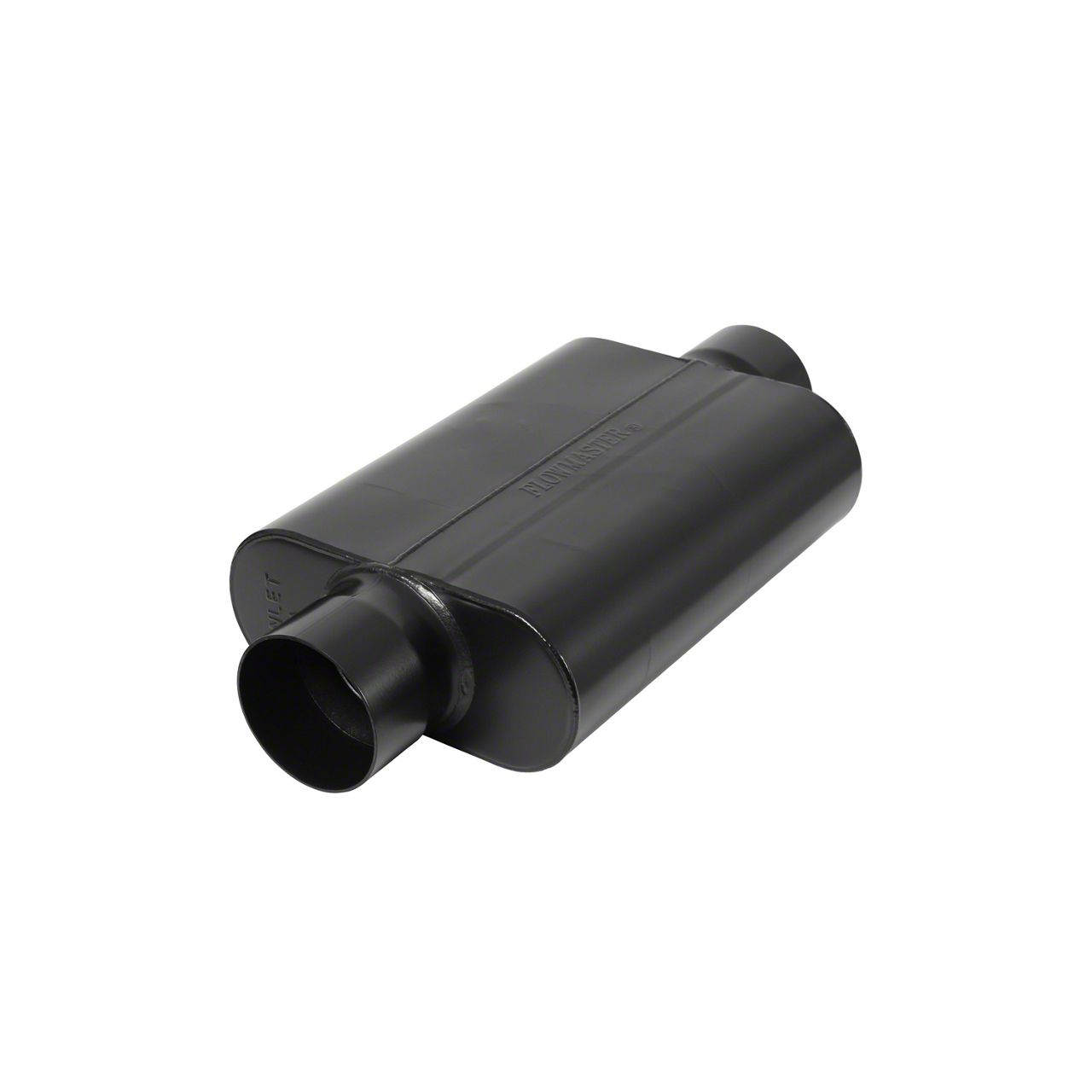

Flowmaster 40 Series Delta Force Center/Center Race Muffler; 3.50-Inch Inlet/3.50-Inch Outlet (Universal; Some Adaptation May Be Required)
Item TU61546
Sale
On Sale
-10% $174.56 each Was $193.95
Military, Medical & First Responders
$8.73 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Durable Fully Welded 16 Gauge 409 Stainless Steel Two Chamber Race Muffler _x000D_
- Good Decibel Reduction Over Open Headers _x000D_
- No Internal Packing To Blowout _x000D_
- Race Proven Delta Flow Technology _x000D_
- Body Height 4.00 In _x000D_
- Body Length 13.00 In _x000D_
- Body Width 9.75 In _x000D_
- Emission Code 5 _x000D_
- Finish High-Temperature Paint _x000D_
- Inlet Connection Slip-Fit _x000D_
- Inlet Diameter 3.50 In _x000D_
- Inlet Inside Diameter 3.50 In _x000D_
- Inlet Location Center _x000D_
- Inlet Outside Diameter 3.63 In _x000D_
- Inlet Quantity 1 _x000D_
- Inlet Type Clamp-On And Weld-On _x000D_
- Mount Type Uses New Hangers Not Included _x000D_
- Muffler Series 40 Series Delta Force _x000D_
- Muffler Type Chambered _x000D_
- Outlet Connection Slip-Fit _x000D_
- Outlet Inside Diameter 3.50 In _x000D_
- Outlet Location Center _x000D_
- Outlet Outside Diameter 3.63 In _x000D_
- Outlet Quantity 1 _x000D_
- Overall Length 18.00 In _x000D_
- Part Type Exhaust Muffler _x000D_
- Product Type Race Products _x000D_
- Reversible No _x000D_
- Shape Oval _x000D_
- Sound Level Aggressive _x000D_
- Sub Category Mufflers _x000D_
- Tunable No _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Flowmaster |
| Muffler Inlet Size | 3.50 Inch |
| Muffler Installation Type | Clamp-On Muffler |
| Muffler Type | Chambered Muffler |
Description
Performance Muffler. The Flowmaster 40 Series Delta Force Center/Center Race Muffler with 3.50-Inch inlet and 3.50-Inch outlet is designed for racing applications that require substantial noise reduction compared to open headers. It delivers an aggressive sound with excellent power characteristics, making it ideal for race vehicles where mufflers are mandated.
_x000D__x000D_Construction and Appearance. Constructed from durable, fully welded 16 gauge 409 stainless steel, this two-chamber muffler features Flowmaster’s proven Delta Flow technology. It is finished in high-temperature black paint, offering heat resistance and a race-ready appearance.
_x000D__x000D_Installation. Installation requires some adaptation as it utilizes slip-fit inlet and outlet connections with clamp-on or weld-on options. New hangers are required but not included, and generally no drilling is needed for mounting.
_x000D__x000D_Application. This universal race muffler fits a wide range of vehicles but may require slight modifications for fitment depending on the vehicle setup.
Flowmaster 8435409
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Flowmaster 40 Series Delta Force Race Muffler to 3.50-Inch Inlet/Outlet
