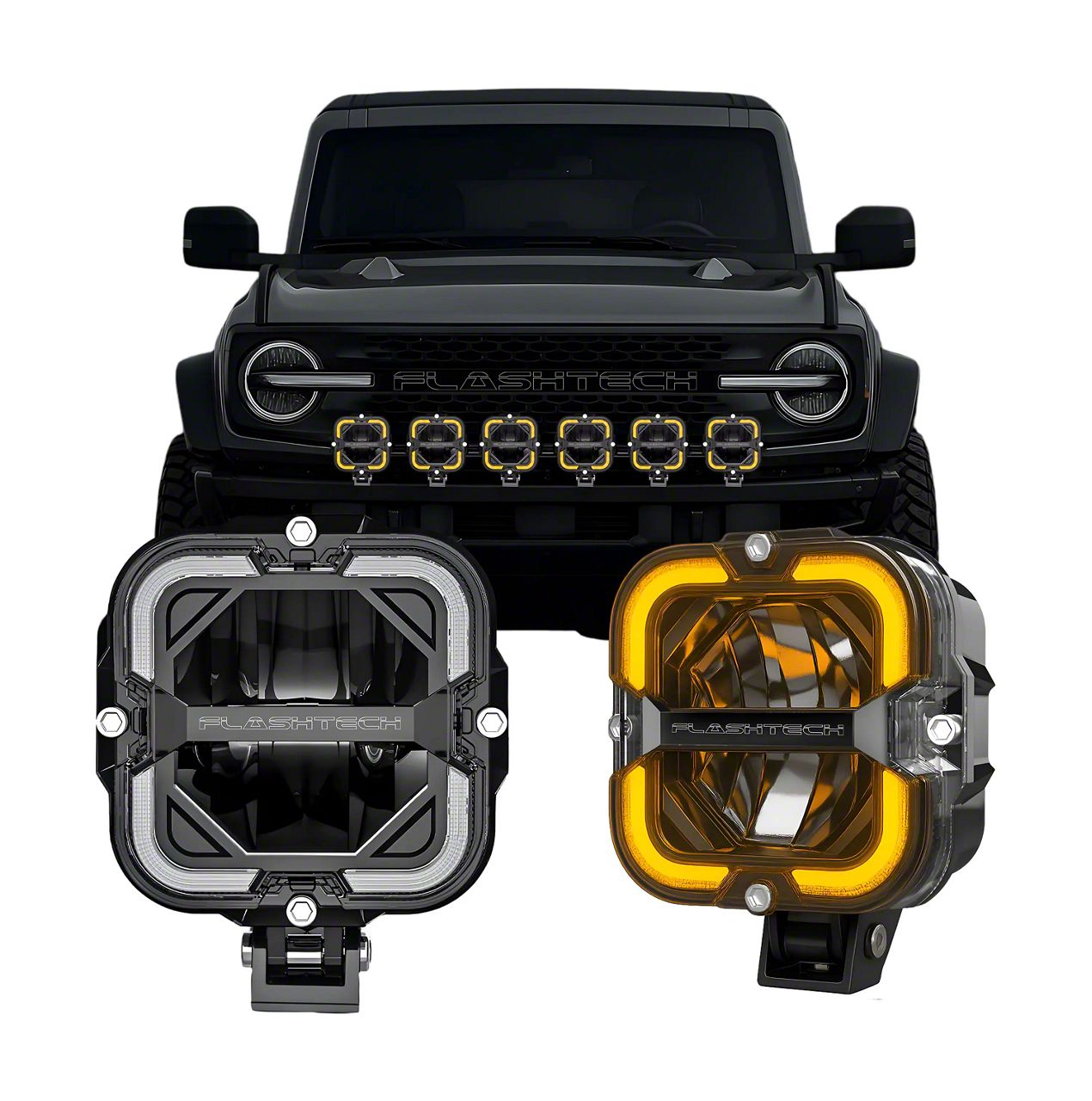

Flashtech Tri-Forge LED Cube Light with Amber DRL; Low/High Beam (Universal; Some Adaptation May Be Required)

Flashtech TRI-FORGE Off-Road Light
The Flashtech TRI-FORGE Off-Road Light delivers unmatched versatility and performance in a compact, durable housing built for the harshest conditions. This all-in-one lighting system features three distinct modes — Daytime Running Light (DRL), Low Beam, and High Beam — controlled via dual-beam optics for dynamic visibility day or night.

Flashtech TRI-FORGE DRL, Low Beam, High Beam Modes
With 12,000 lumens per pair, the TRI-FORGE is powered by high-output LEDs mounted on a copper-core PCB for superior heat management. Light is focused through a thermally optimized reflector and protected by a UV-stable PMMA lens for maximum clarity, impact resistance, and performance longevity.

Flashtech TRI-FORGE exploded components view
A rugged cast-aluminum housing with an integrated pressure equalization vent ensures a fully sealed system that's IP67 rated waterproof and dustproof.

Flashtech TRI-FORGE cast-aluminum housing with an integrated pressure equalization vent
Designed for adaptability, each unit includes top and bottom mounting ports to accommodate future linking brackets—ideal for custom builds or multi-light arrays.

Flashtech TRI-FORGE ideal for custom builds or multi-light arrays
Each kit also includes a plug-and-play dual relay harness with a built-in switch for independent control of both high and low beam functions.

Flashtech TRI-FORGE includes a plug-and-play dual relay harness with a built-in switch
Light Output
See the real-world performance in both low and high beam modes:
TRI-FORGE Light Output Low & High Beam

Key Features:
Tri-Function Output: DRL / Low Beam / High Beam
12,000 Lumens (per pair)
Dual-Beam with Integrated DRL System
Copper-Core PCB for thermal efficiency
Thermally Optimized Reflector
PMMA Outer Lens for clarity and durability
Rugged Cast-Aluminum Housing
IP67 Waterproof and Dustproof Rating
Pressure Equalization Vent prevents condensation
Future-Ready: Top & Bottom Mounting Ports for Linking
Includes Dual Relay Harness with Switch for High and Low Beam Control
Technical Specifications:
Beam Patterns: DRL, Low Beam, High Beam
Lumens (Per Pair): 12,000 LM
Power: 90W (Per Pair)
Operating Voltage: 9–32V
Current Draw (12 V): 1.65 A (Low) / 3.12 A (High) per light (double for a matched pair)
Color Temperature: 5700K
IP Grade: IP67
Dimensions (L x H x D): 100 mm × 130 mm × 70 mm (3.93″ × 5.11″ × 2.75″)
Mounting Style: Top/Bottom Bracket Ports

What's Included in Each Kit:
(2) TRI-FORGE Cube Lights
(1) Plug-and-Play Dual Relay Harness with Dual Push Button Switch
(2) Mounting Brackets (one per light)
(2) DRL Extension Wires
Mounting Hardware for both lights
