Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Fabtech 3-Inch Uniball Upper Control Arm Suspension Lift Kit (21-26 Bronco w/ Sasquatch Package, Badlands, First Edition & Wildtrack)Find parts that fit my vehicle
Item FB15418
Our Price
$1,227.99 kit
Military, Medical & First Responders
$61.40 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Fabtech’s High-Quality 3" Bronco Lift Kit Offers Increased Height To Run 35" Tall Tires With Additional Front Suspension Strength
- This Kit Helps Level The Vehicle Stance Front To Rear For A More Aggressive Appearance
- Factory Bronco Upper Control Arms Are Replaced With Fabtech’s Uniball Upper Control Arms That Provide Additional Wheel Travel With An Extra Degree Of Caster Compared To Stock Arms
- Increased Caster Helps To Balance Steering Effort With Oversized Tires
- Fabtech Upper Control Arms Are Constructed Of .120" Wall, 1.25" OD 4130 Chromoly Steel Tubing
- High-Quality 1" FK Stainless PTFE Lined Uniball Bearings Replace Factory Ball Joints To Allow Increased Travel Without Binding
- Designed For Longevity In Rugged Offroad Conditions While Providing A More Positive On Road Feel
- Factory Front And Rear Coilover Shocks Are Retained With Spacers That Provide Height While Maintaining Comfortable Stock Highway Ride Quality
- Rear Axle Offset Is Corrected With Heavy-Duty Track Bar Relocation Bracket That Re-Centers Axle Under The Vehicle For Proper Tracking
- Arms Eliminate The Factory Upper Ball Joint With Super Strong 1" ID Stainless American Uniball
- Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
- 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle
- Heavy Duty Track Bar Bracket Re-Centers Axle Under The Vehicle For Proper Tracking
- Great Suspension Upgrade For Daily Drivers Requiring Increased Offroad Performance
- 5 Year / 60,000 Mile Powertrain Warranty
- Compatible With 35/12.50R17 Tires On 17×9 Wheels With 4 1/2" Backspacing And Minor Trimming
- Compatible With 35/12.50R18 Tires On 18×9 Wheels With 4 1/2" Backspacing And Minor Trimming
- Compatible With 35/12.50R20 Tires On 20×9 Wheels With 4 1/2" Backspacing And Minor Trimming
- Fits 2021-2026 Bronco Models Equipped With Sasquatch Package, Badlands, First Edition & Wildtrack Trims
- Does Not Fit Vehicles Equipped With Hoss 3.0 Package Or Models Not Equipped With Bilstein Factory Shocks
| Brand | Fabtech |
| Lift Height | 3.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fabtech |
| Shock Type | No Shock |
Description
Suspension Lift Solution. The Fabtech 3-Inch Uniball Upper Control Arm Suspension Lift Kit is engineered to increase ride height and suspension strength, enabling the vehicle to accommodate larger 35-inch tires. It levels the stance front to rear, delivering a more aggressive look and enhanced off-road capability while maintaining a comfortable ride quality.
Construction and Features. This kit includes upper control arms crafted from .120" wall, 1.25" outer diameter 4130 Chromoly steel tubing for strength and durability. The arms use premium 1" FK Stainless PTFE lined Uniball bearings that replace factory ball joints, providing increased suspension travel without binding. The kit retains factory front and rear coilover shocks, incorporating spacers to add height without compromising ride comfort. A heavy-duty track bar relocation bracket corrects rear axle offset and re-centers the axle for proper tracking under the vehicle. All components are designed for rugged off-road use with a refined on-road feel.
Installation. Installation is straightforward for technicians familiar with suspension systems. The Uniball pins fit directly into the factory ball joint taper, requiring no spindle modifications. Basic hand tools and standard suspension procedures are all that is necessary, with no drilling required for the kit’s proper fitment.
Warranty. This suspension lift kit is backed by a 5-year/60,000-mile powertrain warranty, ensuring product reliability and peace of mind.
Fitment & Application. Designed specifically for 2021-2026 Ford Bronco models equipped with Bilstein factory shocks. Compatible with Sasquatch Package, Badlands, First Edition, and Wildtrack trim levels. Not compatible with vehicles equipped with the Hoss 3.0 package.
Application. This lift kit is specifically engineered for 2021-2026 Ford Bronco models equipped with Bilstein factory shocks and applicable to versions with Sasquatch Package, Badlands, First Edition, and Wildtrack trims. It is not compatible with vehicles equipped with the Hoss 3.0 package.
Fabtech K2383
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

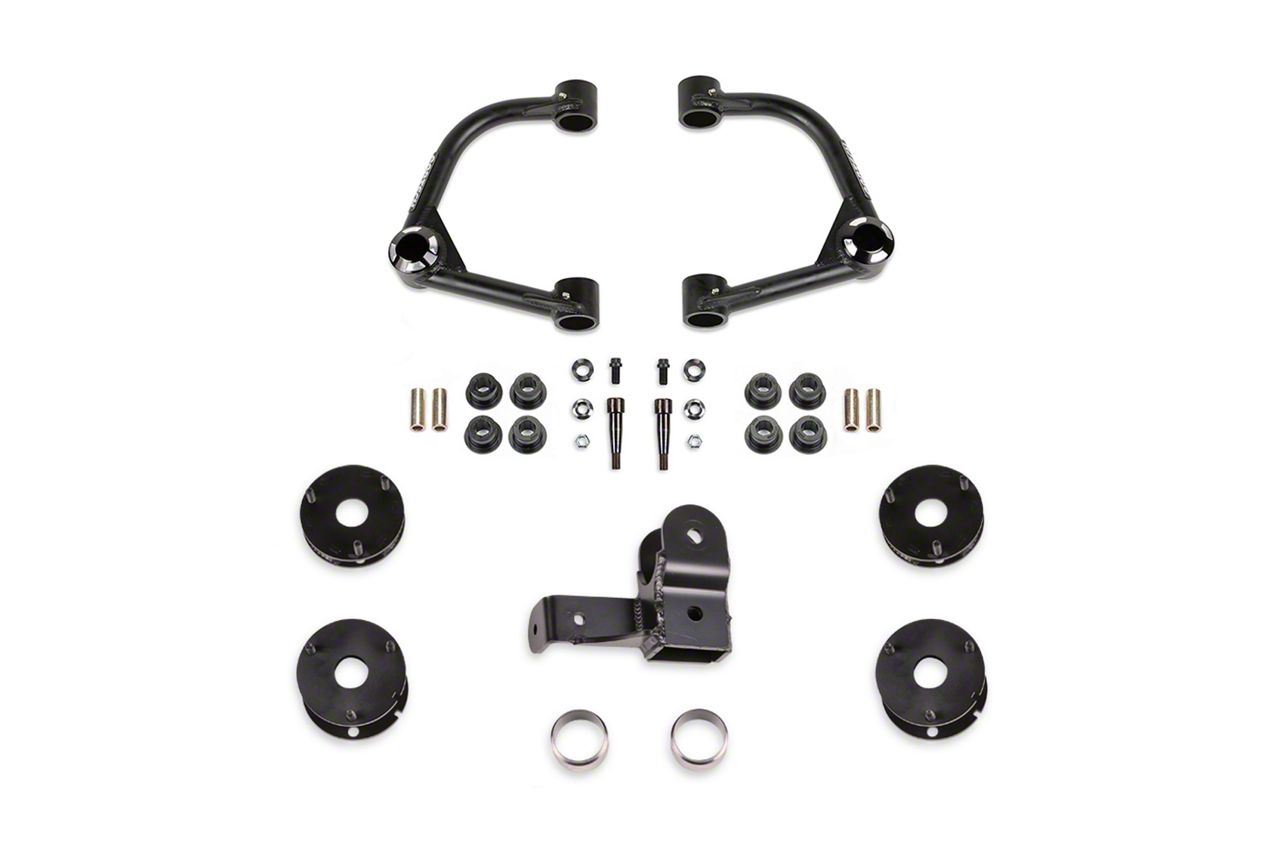

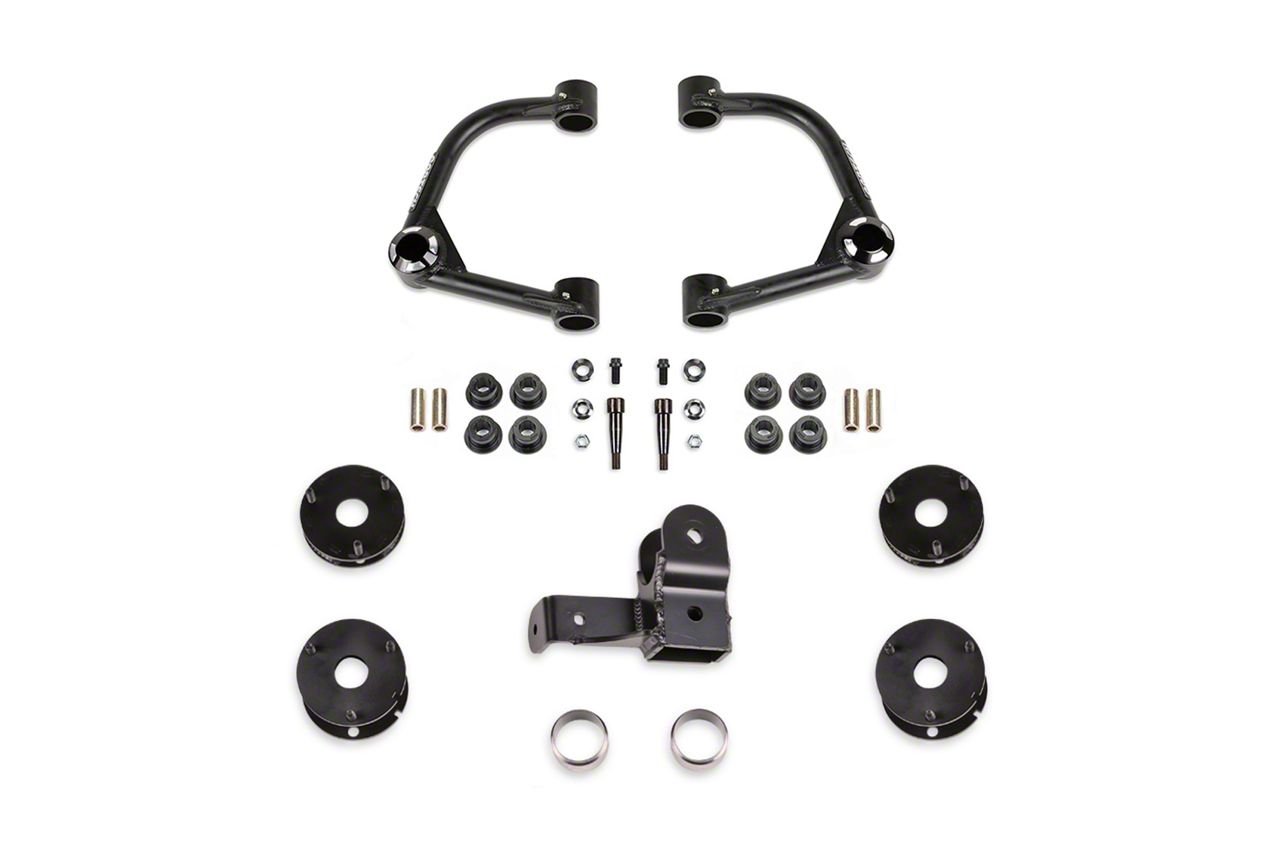

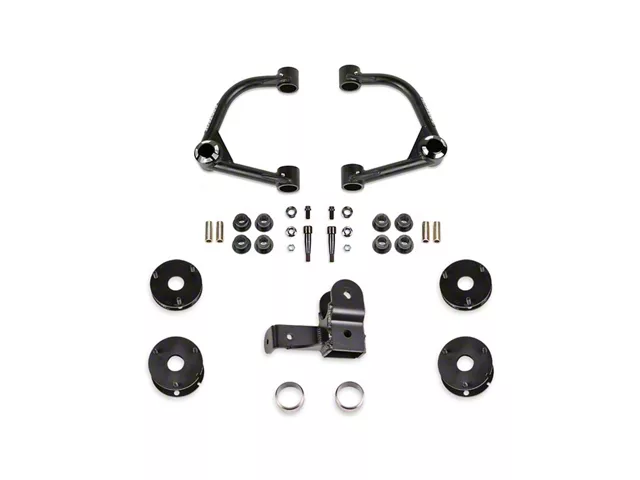

What's in the Box
- (1) Uniball Upper Control Arm Suspension Lift Kit
- Installation Hardware
3.8
Customer Reviews (11)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Bronco
- Badlands 2 Door - 21, 22, 23, 24, 25, 26
- Badlands 4 Door - 21, 22, 23, 24, 25, 26
- First Edition 2 Door - 21
- First Edition 4 Door - 21
- Wildtrak 2 Door - 21, 22, 23, 24
- Wildtrak 4 Door - 21, 22, 23, 24
