EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio (97-06 Jeep Wrangler TJ, Excluding Rubicon)Find parts that fit my vehicle

Item J183499
Our Price

$729.99 kit

Military, Medical & First Responders $36.50 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Dana 30 TJ, Dana 44 Standard Application Model
      • 10 Cover Bolt Quantity
      • Dana 30 TJ, Dana 44 Standard Differential Case Design Type
      • 4.10 Gear Ratio
      • 10 Front, 11 Rear Pinion Gear Tooth Quantity
      • 1.376 Inch Pinion Shaft Diameter
      • 26 Pinion Spline Count
      • Front and Rear Position
      • 10 Ring Gear Bolt Quantity
      • 8620 Steel Ring Gear Material
      • 7.125 Inch Front, 8.5 Inch Rear Ring Gear Outside Diameter
      • Standard Ring Gear Rotation
      • 41 Front, 45 Rear Ring Gear Tooth Quantity
      • LD Differential Taxonomy A
      • Ring and Pinion Gear Packages Taxonomy B
      • Front and Rear Taxonomy C
      • 4.10 Taxonomy D
      • Fits 97-06 Jeep Wrangler TJ, Excluding Rubicon

      Description

      Optimized Power and Torque Delivery. The EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio is designed to restore lost performance and off-road capability in 1997-2006 Jeep Wrangler TJ models that have been equipped with larger tires. By shifting the drivetrain back into its ideal power band, the EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio significantly reduces the strain on your engine and transmission, allowing for crisper acceleration and better crawling control. This gear ratio correction is essential for maintaining highway drivability and low-end grunt, ensuring your Jeep feels as nimble and powerful as it did when it rolled off the assembly line.

      High-Strength Heat-Treated Construction. Every component within the EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio is manufactured from premium 8620 steel to provide a level of durability that far exceeds standard replacement parts. The gears in the EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio undergo a rigorous computer-controlled heat-treatment process to achieve the perfect balance of surface hardness and core toughness. This robust construction ensures that the teeth can withstand the high-torque loads of off-road wheeling and heavy towing without chipping or excessive wear, providing long-term reliability for your Dana 30 and Dana 44 axles.

      Installation. Putting this EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio on your Ranger takes a day to install.

      Warranty. There is a 1-year or 50,000-mile manufacturer warranty on this product.

      Application. The EXCEL from Richmond Dana 30 Front and Dana 44 Rear Ring and Pinion Gear Kit; 4.10 Gear Ratio fits 1997-2006 Jeep Wrangler TJ models, excluding Rubicon.

      EXCEL from Richmond XLK-5012

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

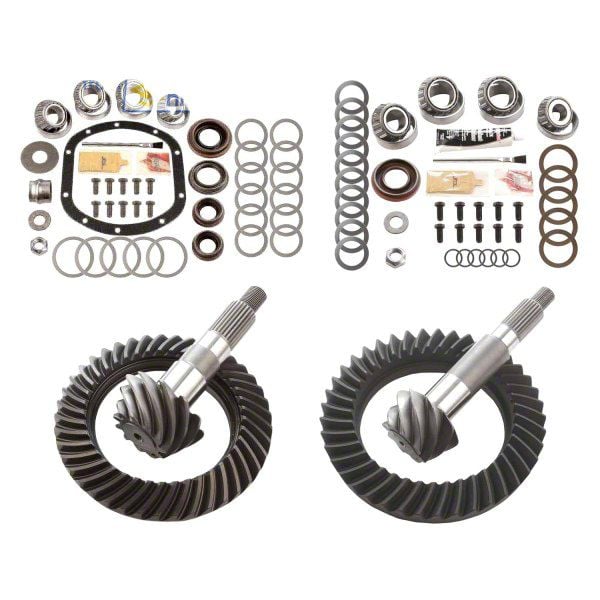

      What's in the Box

      • (1) Dana 30 Front Ring Gear
      • (1) Dana 30 Front Pinion Gear
      • (1) Dana 44 Rear Ring Gear
      • (1) Dana 44 Rear Pinion Gear
      • (2) Sets of Ring Gear Bolts
      • (2) Pinion Nuts
      • (2) Crush Sleeves (where applicable)
      • (2) Sets of Pinion and Carrier Shims
      • (2) Gear Marking Compound and Brush Kits
      • (2) Thread Locking Compound Tubes

      5.0

      Customer Reviews (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Wrangler

      • TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
      • TJ Wrangler Unlimited 2 Door - 04, 05, 06
