2021-2026
Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Audio & CB Equipment for your Bronco

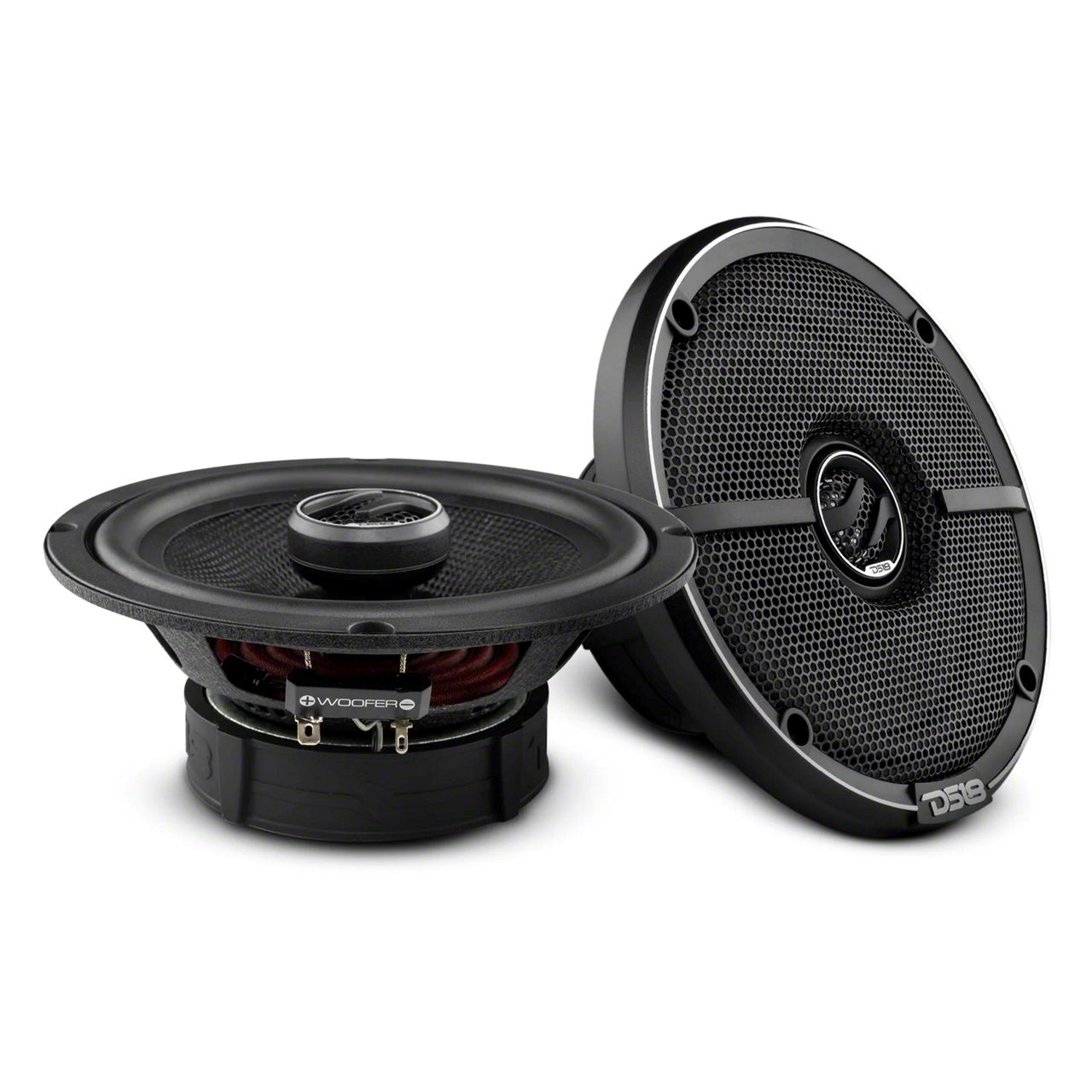

DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts (Universal; Some Adaptation May Be Required)
Item FB26153
Our Price
$94.95 pair
Military, Medical & First Responders
$4.75 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- _x000D_
- 6.5" 2-Way Coaxial Speaker _x000D_
- Max Power 240 Watts _x000D_
- RMS Power 80 Watts _x000D_
- Impedance 4 Ohm _x000D_
- Barium Ferrite and Neodymium Magnets _x000D_
- Pair Sensitivity Approximately 87dB _x000D_
- Frequency Response 40 Hz - 20 KHz _x000D_
- Recommended High Pass 60 Hz _x000D_
- Voice Coil Diameter 25.5 mm _x000D_
- Voice Coil Former Material KSV _x000D_
- Winding Material EISV _x000D_
- Cone Material Glass Fiber _x000D_
- Surround Material Rubber _x000D_
- Basket Material Steel _x000D_
- Magnet Material Barium Ferrite _x000D_
- Magnet Weight 14.46 oz / 410 g _x000D_
- Tweeter Nominal Diameter 25.4 mm _x000D_
- Tweeter Voice Coil Diameter 20.4 mm _x000D_
- Tweeter Voice Coil Former Material KSV _x000D_
- Tweeter Winding Material EISVM _x000D_
- Tweeter Diaphragm Material PEI _x000D_
- Tweeter Magnet Material Neodymium _x000D_
- Tweeter Magnet Weight 8.5 g / 0.3 oz _x000D_
- Vas 10.84 L _x000D_
- Xmax 2.7 mm _x000D_
- Fs 64 Hz _x000D_
- Qms 9.44 _x000D_
- Qes 0.79 _x000D_
- Qts 0.73 _x000D_
- Mms 13.72 g _x000D_
- Cms 444 mm/N _x000D_
- Bl 5.1 _x000D_
- Le 228 µH _x000D_
- Sd 131 cm² _x000D_
- Re 3.5 Ohm _x000D_
- Mmd 12 g _x000D_
- Overall Diameter 6.5 inch (165 mm) _x000D_
- Overall Depth 72 mm (2.83 inch) _x000D_
- Front Mount Baffle Cutout 141 mm (5.55 inch) _x000D_
- Mounting Depth 60 mm (2.36 inch) _x000D_
- Motor Diameter 94 mm (3.7 inch) _x000D_
- Product Weight 5.5 lbs _x000D_
- Product Dimensions 15.75 x 7.75 x 3.75 inches _x000D_
- Sold in Pair _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Powerful Coaxial Speakers. The DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone deliver an enhanced audio experience for automotive sound systems. Designed to provide clear, distortion-free sound across a wide frequency range, these speakers improve the clarity and impact of music playback in various vehicle environments.
_x000D__x000D_Construction and Appearance. These speakers feature durable glass fiber cones combined with rubber surrounds, ensuring precise bass response while minimizing unwanted vibrations. The use of barium ferrite and neodymium magnets enhances magnetic efficiency. Their steel baskets offer robust structural support, and materials like PEI for the tweeter diaphragm provide excellent high-frequency clarity.
_x000D__x000D_Installation. Installation is straightforward, compatible with standard 6.5-inch mounting locations. Some adaptation may be necessary depending on vehicle specifics, but no extensive modifications or drilling are typically required.
_x000D__x000D_Warranty. A two-year warranty covers these speakers, providing assurance of long-term performance and quality.
_x000D__x000D_Application. These speakers fit universally, with some adaptation potentially required to accommodate specific vehicle mounting configurations.
DS18 ZXI-654
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Coaxial Speakers
- Mounting Hardware
- Instruction Manual
