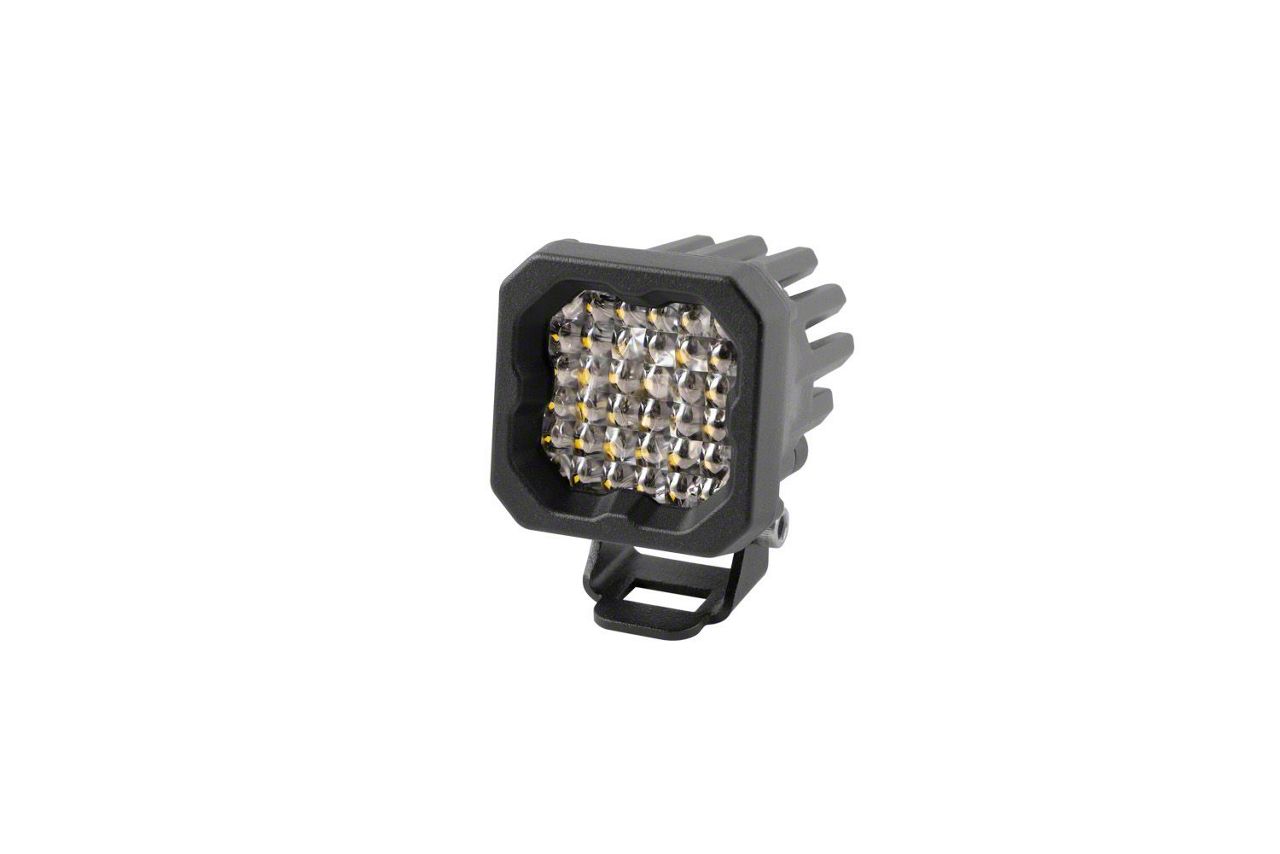

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)

Item J176616
Product Image
1 Reviews
Our Price

$159.95

Military, Medical & First Responders $8.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Ultra-Compact, Single-LED Form Factor
      • Triple Function: High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light
      • Pin-Fin Heatsink Design, For Superior Thermal Dissipation
      • Integrated Deutsch-Style Connector
      • Designed, Torture-Tested And Assembled In USA
      • Raw Lumens: 1450 Lm
      • Color Temp (CCT): 6000K
      • Beam Angle: Flood, 50°x50°
      • Power (Watts): 15
      • Operating Voltage: 9-16V
      • Polarity: Polarity Specific
      • Operating Temperature: -40C To 85C (-40F To 185F)
      • Connector(s): Deutsch DT Input
      • Driver Features: Constant Current
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
      • Cooling: Passive, Pin-Fin Heatsink
      • Compliance Ratings: SAE J575 Durability Test
      • Intrusion Ratings: IP69K Waterproof, High Pressure
      • Unit Weight (Lb): 0.175
      • Product Weight (Lb): 0.325
      • Shipped Weight (Lb): 0.4
      • Fits Universal; Some Adaptation May Be Required

      Description

      High-Performance LED Pod. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is designed to deliver efficient and versatile lighting functions with its triple-beam system. It provides high-power white and red main beams along with a low-power red accent light, ideal for use as backup lights, brake lights, or auxiliary running lights on various vehicles.

      Construction and Appearance. This LED pod is constructed with a durable polycarbonate lens, aluminum casting, and a rubber gasket for enhanced sealing. It features a pin-fin heatsink design for optimal thermal management and boasts an integrated Deutsch-style connector for reliable connection. The overall finish is robust and designed to withstand harsh environmental conditions.

      Installation. Installation requires basic hand tools and is generally straightforward with no specialized equipment necessary. It supports multiple mounting options, including standard and flush-mount configurations, and is adaptable to a wide range of mounting points.

      Warranty. This product comes with a limited lifetime warranty covering defects in materials and workmanship.

      Application. Designed as a universal fit LED pod, this product may require some adaptation for installation depending on the vehicle and mounting location.

      Diode Dynamics DD7423S
