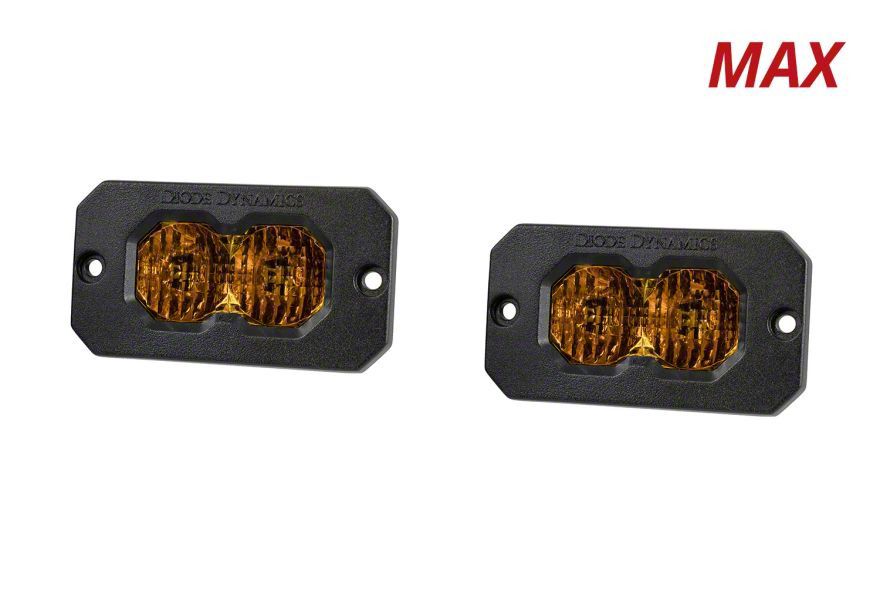

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item J256955
Our Price
$479.95
Military, Medical & First Responders
$24.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Backlight Feature Serves As Low-Power Accent Light And Fully Illuminates The TIR Optic _x000D_
- Swappable Optics And Colors Using Same High-Output Cool White LED Chips _x000D_
- Redesigned Copper-Core Circuit Board For Improved Thermal Efficiency _x000D_
- Powdercoated Aluminum Housing With Enhanced Heat Dissipation _x000D_
- Multiple Beam Patterns Fine-Tuned For Real-World Conditions _x000D_
- Combo/Driving Pattern Delivers 55x20 Degrees Rectangular Beam _x000D_
- Flood Pattern Provides Uniform 70x45 Degree Illumination _x000D_
- Operating Voltage 9-30V With 2.3A Current At 13.2V _x000D_
- Osram Boost HX LED Emitters _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver Features _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket Materials _x000D_
- Passive Pin-Fin Heatsink Cooling _x000D_
- SAE J575 Durability And IP69K Waterproof High-Pressure Intrusion Ratings _x000D_
- Product Dimensions: 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight 0.55 lb, Product Weight 1.4 lb _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
Powerful LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Lights with Amber Backlight and Yellow Combo/Driving beam deliver exceptional illumination with up to 95% more power than previous models. These compact pods are designed for versatile off-road and utility applications, providing focused, high-intensity lighting for improved visibility and safety.
_x000D__x000D_Construction and Appearance. Crafted from powder-coated aluminum with a polycarbonate lens and rubber gasket, these pods feature a copper-core circuit board bonded directly to Osram Boost HX LED emitters. The durable housing utilizes a passive pin-fin heatsink for effective cooling, ensuring reliable performance in harsh conditions.
_x000D__x000D_Installation. Installation typically requires 30 to 60 minutes with basic tools and no complex modifications. The included flush mount hardware allows for clean, low-profile mounting on any flat surface, with minimal drilling needed.
_x000D__x000D_Warranty. These LED pods come with a limited lifetime warranty, reflecting confidence in their long-term durability and performance.
_x000D__x000D_Application. Designed for universal fitment, these pods may require some adaptation depending on mounting location and vehicle configuration.
