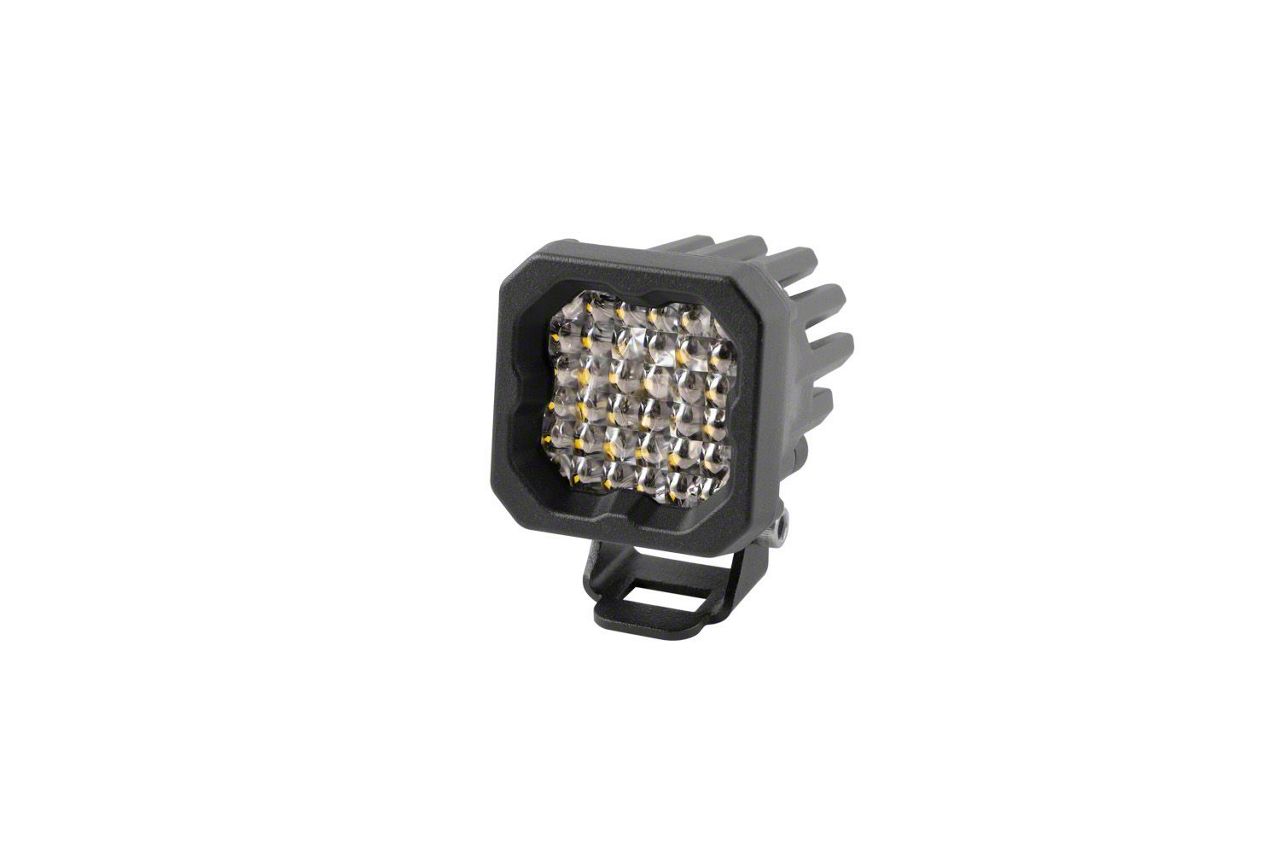

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)

Item FB20424
Our Price

$159.95 each

Military, Medical & First Responders $8.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact, Single-LED Form Factor
      • _x000D_
      • Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light
      • _x000D_
      • Pin-Fin Heatsink Design for Superior Thermal Dissipation
      • _x000D_
      • Integrated Deutsch-Style Connector
      • _x000D_
      • Designed, Torture-Tested, and Assembled in USA
      • _x000D_
      • Custom-Engineered TIR Optics for Efficient Light Output
      • _x000D_
      • Functional Flood Beam Pattern with 50x50 Degree Spread
      • _x000D_
      • Snap-On Covers Available for Protection and Style
      • _x000D_
      • Includes One Stage Series C1R LED Pod, Deutsch-Style Wire Pigtail, Mounting Bracket, and Hardware
      • _x000D_
      • Raw Lumens: 1450 lm
      • _x000D_
      • Color Temperature: 6000K
      • _x000D_
      • Power Consumption: 15 Watts
      • _x000D_
      • Operating Voltage: 9-16 Volts
      • _x000D_
      • Polarity Specific Design
      • _x000D_
      • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
      • _x000D_
      • Deutsch DT Input Connector
      • _x000D_
      • Constant Current Driver
      • _x000D_
      • Polycarbonate Lens with Aluminum Casting and Rubber Gasket
      • _x000D_
      • Passive Cooling with Pin-Fin Heatsink
      • _x000D_
      • Meets SAE J575 Durability Standards
      • _x000D_
      • IP69K Waterproof Rating, High Pressure Resistant
      • _x000D_
      • Unit Weight: 0.175 lbs, Product Weight: 0.325 lbs, Shipped Weight: 0.4 lbs
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Advanced LED Pod. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood offers a compact and versatile lighting solution ideal for automotive use. Designed to deliver high-intensity white and red light options with an efficient flood beam, it enhances visibility and safety for vehicles. This pod is suitable for applications including reverse lights, auxiliary brake lights, and secondary running lights.

      _x000D__x000D_

      Construction and Appearance. Crafted with a durable polycarbonate lens and an aluminum casting body, the pod features a pin-fin heatsink design for superior thermal management. The materials provide robustness and reliability under harsh conditions, complemented by a sleek, functional finish that resists moisture and corrosion.

      _x000D__x000D_

      Installation. Installation generally requires only a basic toolset and can be completed within 30-60 minutes. The pod’s compact size allows for flexible mounting options without the need for extensive drilling or modifications.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.

      _x000D__x000D_

      Application. The LED pod is universal and can be adapted to fit a variety of vehicle types and mounting locations, accommodating custom installations and various automotive lighting needs.

      Diode Dynamics DD7423S

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (2) Stage Series C1R Standard LED Pod Lights
      • (1) Wiring Harness with Deutsch DT connectors
      • (2) Mounting Brackets
      • (4) Stainless Steel Mounting Clamps
