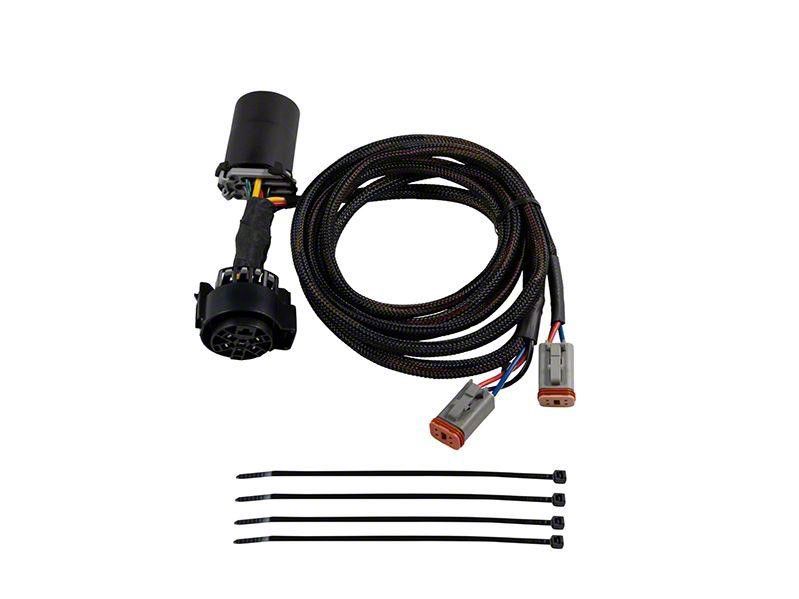

Diode Dynamics Stage Series 7-Pin Dual-Output Trailer Wiring Harness (Universal; Some Adaptation May Be Required)

Item FB19913
Our Price

$39.95 set

Military, Medical & First Responders $2.00 Available in XT Cash Rewards.
Confirm Eligibility
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Powers Diode Dynamics LED Pods with Backlight Functionality
      • Connects Directly to Trailer Hitch Wiring for Simple, Everyday Operation of LED Pods
      • High Capacity 10AWG Wiring
      • Dual Deutsch DT Output Connectors
      • Operating Voltage: 9-16V
      • Wire Size: 10AWG
      • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
      • Connector Type: Deutsch DT Input
      • Unit Weight: 0.58 lbs
      • Shipped Weight: 0.6 lbs
      • Fits Universal; Some Adaptation May Be Required

      Description

      Product Overview. The Diode Dynamics Stage Series 7-pin Dual-Output Trailer Wiring Harness provides a convenient solution for integrating Diode Dynamics LED pods with backlight functionality into your vehicle’s trailer wiring system. Designed to operate your LED pods in sync with your vehicle’s tail and backup lights, it offers daily usability by automatically switching between red accent lighting and high-power reverse lighting. This harness simplifies connecting auxiliary lights while maintaining reliable operation.

      Construction and Appearance. Crafted with high-capacity 10AWG wiring, this harness features durable dual Deutsch DT connectors engineered for secure, weather-resistant connections. The cable assembly is built to perform consistently across a wide temperature range (-40°C to 85°C), ensuring reliable function in harsh environments. The design prioritizes both durability and ease of use with robust materials and professional-grade connectors.

      Installation. Installation of this wiring harness is straightforward and can typically be completed in 10 to 20 minutes without the need for any special tools or vehicle modifications. Its plug-and-play design allows for quick integration with existing trailer hitch wiring systems, facilitating a hassle-free upgrade.

      Warranty. This product comes with a 3-year replacement limited warranty, offering peace of mind through coverage against defects and ensuring long-term satisfaction with your purchase.

      Application. The harness is designed as a universal fit and may require some adaptation depending on specific vehicle and lighting configurations. It is ideal for users looking to add or upgrade LED pod lighting with backlight capabilities through trailer wiring connections.

      Diode Dynamics DD4135

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 45 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Trailer Wiring Harness
      • Mounting Hardware
      • Instruction Manual
