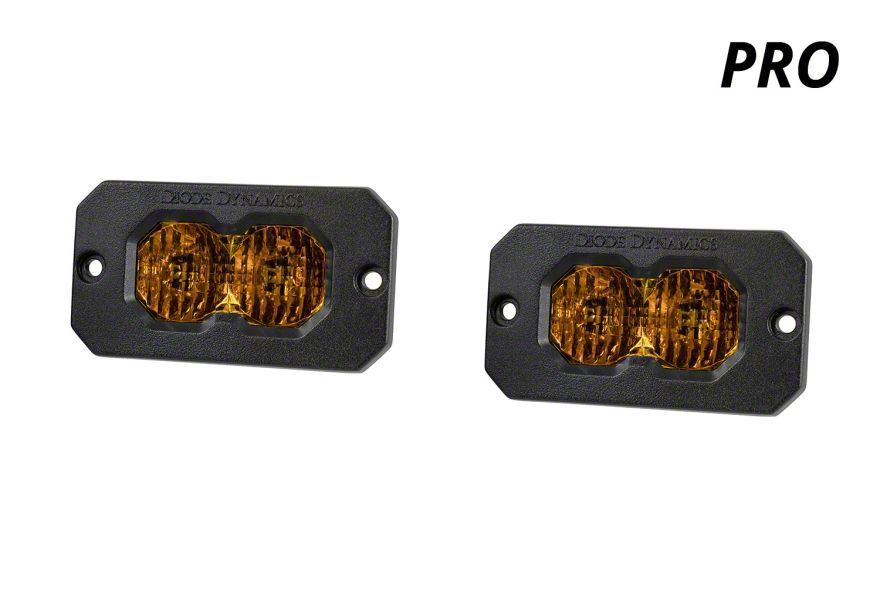

Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Lights with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item FB72075
Our Price
$339.95
Military, Medical & First Responders
$17.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Two Stage Series C2 2.0 LED Pods Included _x000D_
- Includes Deutsch-Style Wire Pigtails _x000D_
- Mounting Brackets And Hardware Provided _x000D_
- Amber Backlight Functionality With Low-Power Accent Light _x000D_
- Optically Designed Lenses Are Interchangeable _x000D_
- Operating Temperature Range From -40°F To 185°F _x000D_
- Raw Lumen Output Up To 3,960 Lumens _x000D_
- Operating Voltage Between 9 To 30 Volts _x000D_
- Power Consumption: 23 Watts Main Beam, 0.38 Watts Backlight _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- IP69K Waterproof And High Pressure Intrusion Rated _x000D_
- Complies With SAE J575 Durability Standards _x000D_
- Product Dimensions 2.5 X 4.5 X 2.4 Inches _x000D_
- Weight: 0.55 Pounds Per Pod, 1.4 Pounds Total _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features Constant Current _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
HIGH-PERFORMANCE LED PODS. The Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Lights with Amber Backlight; Yellow Combo/Driving deliver powerful and focused illumination for a variety of automotive lighting applications. Designed for use on bumpers, cargo areas, trailers, or roof racks, these compact pods enhance visibility and safety with precise light projection and a stylish amber backlight accent.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. These LED pods feature a durable powder-coated aluminum housing optimized for heat dissipation and long-lasting performance. They include a polycarbonate lens and a rubber gasket for moisture resistance. The design utilizes patented TIR optics to maximize light output and reduce glare, finished in a sleek black textured surface that complements any vehicle.
_x000D__x000D_INSTALLATION. Installation typically takes 30 to 60 minutes using basic tools, with no extensive modifications required. The included flush mount kit enables low-profile mounting on flat surfaces, providing a clean and secure fit without the need for drilling in most applications.
_x000D__x000D_WARRANTY. These LED pods come with a limited lifetime warranty covering defects and ensuring long-term reliability.
_x000D__x000D_APPLICATION. Designed for universal use, these LED pods may require some adaptation depending on mounting location and vehicle configuration.
Diode Dynamics DD8127P
