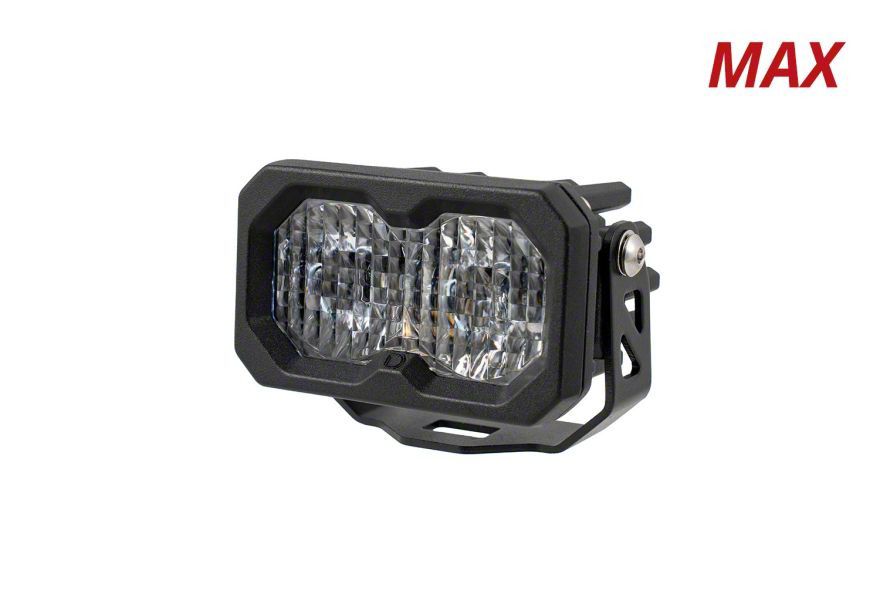

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item FB72054
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting To Dial In Your Setup
        • _x000D_
      • Link Multiple Pods With CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Lenses Are Interchangeable And Optically Designed
        • _x000D_
      • Backlight Functionality Included With Red Or Amber Options
        • _x000D_
      • High-Intensity Automotive-Grade LED Emitters
        • _x000D_
      • Copper-Core Circuit Board Bonded Directly To LEDs For Thermal Efficiency
        • _x000D_
      • Powdercoated Aluminum Housing With Enhanced Heatsink Design
        • _x000D_
      • Constant Current Driver
        • _x000D_
      • Operating Voltage Range: 9-30V
        • _x000D_
      • Durability Tested To SAE J575 Standards
        • _x000D_
      • Waterproof To IP69K Standards
        • _x000D_
      • Compact Dimensions: 2 x 3.3 x 2.4 Inches
        • _x000D_
      • Weight: 0.55 Pounds Per Unit
        • _x000D_
      • Connector: Deutsch DT Input
        • _x000D_
      • Raw Output: Up To 3,960 Lumens (Max Version)
        • _x000D_
      • Color Temperature: 6000K White
        • _x000D_
      • Current Draw: 2.3 Amps At 12.8V (Main Beam)
        • _x000D_
      • Operating Temperature Range: -40C To 85C (-40F To 185F)
        • _x000D_
      • Spot, Flood, Combo/Driving, SAE Driving, And SAE Fog/Wide Beam Patterns Available
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood delivers intense, focused illumination in a compact design. Perfect for tight mounting locations such as roof racks and roll bars, this pod enhances visibility for on-road and off-road use, improving safety and functionality.

      _x000D__x000D_

      Construction and Appearance. Featuring a powdercoated aluminum housing paired with a durable polycarbonate lens, this pod integrates a copper-core circuit board directly bonded to the LEDs for excellent thermal management. This design ensures lasting durability and effective heat dissipation for consistent performance. The sleek finish complements any vehicle setup, with the red backlight providing a distinctive accent.

      _x000D__x000D_

      Installation. Installation is straightforward and can typically be completed with basic tools within 30 to 60 minutes. The flexible mounting bracket includes multiple adjustment points for precise aiming, usually without requiring complex drilling.

      _x000D__x000D_

      Warranty. This LED pod is supported by a limited lifetime warranty, underscoring reliability and long-term support.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required.

      Diode Dynamics DD8116S
