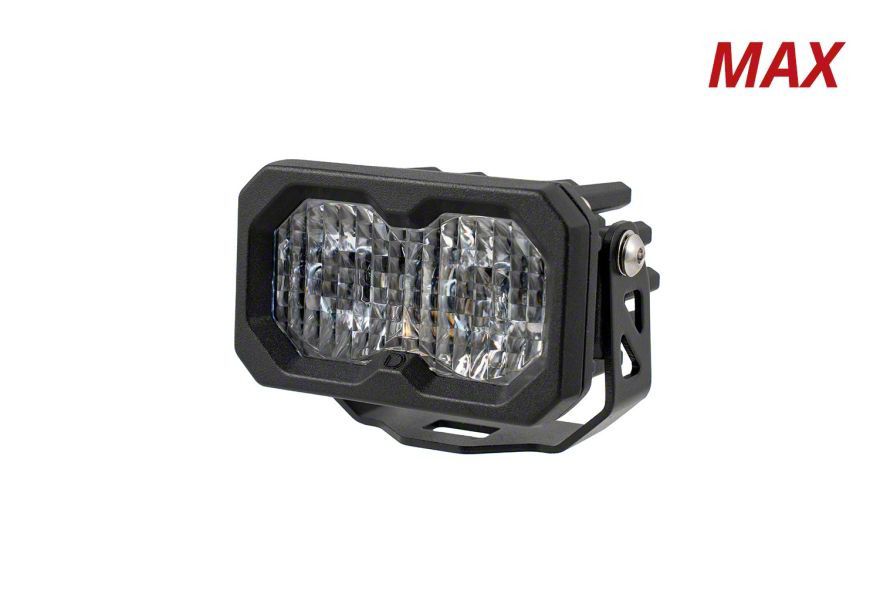

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)

Item FB72048
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output And Reduced Glare
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting To Dial In Your Setup
        • _x000D_
      • Link Multiple Pods With CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Raw Lumens: 3,960 Lm
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Power (Watts): Main Beam 30, Backlight 0.38
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03
        • _x000D_
      • Polarity: Polarity Specific
        • _x000D_
      • Operating Temperature: -40°C To 85°C (-40°F To 185°F)
        • _x000D_
      • LED Emitter: Osram Boost HX
        • _x000D_
      • Connector: Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure Resistant
        • _x000D_
      • Product Dimensions (Inches): 2 x 3.3 x 2.4
        • _x000D_
      • Unit Weight (Pounds): 0.55
        • _x000D_
      • Product Weight (Pounds): 1.4
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight and White Combo/Driving beam delivers exceptional illumination in a compact design. Engineered for tight mounting locations, it offers versatile use on roof racks, roll bars, bumpers, or A-pillars, providing reliable lighting performance for a wide range of automotive applications.

      Construction and Appearance. This LED pod features a rugged aluminum casting with a powder-coated finish enhancing heat dissipation and durability. The polycarbonate lens protects the high-intensity Osram Boost HX LEDs, while the rubber gasket ensures a watertight, IP69K-rated housing capable of withstanding harsh environments.

      Installation. Installation typically requires basic tools and takes 30 to 60 minutes. The mount includes multiple adjustment points, allowing precise angling without the need for drilling in many cases.

      Warranty. Backed by a limited lifetime warranty, this LED pod is built for long-lasting reliability and performance under demanding conditions.

      Application. Universal fitment with some adaptation may be necessary for optimal mounting and integration on different vehicles.

      Diode Dynamics DD8113S
