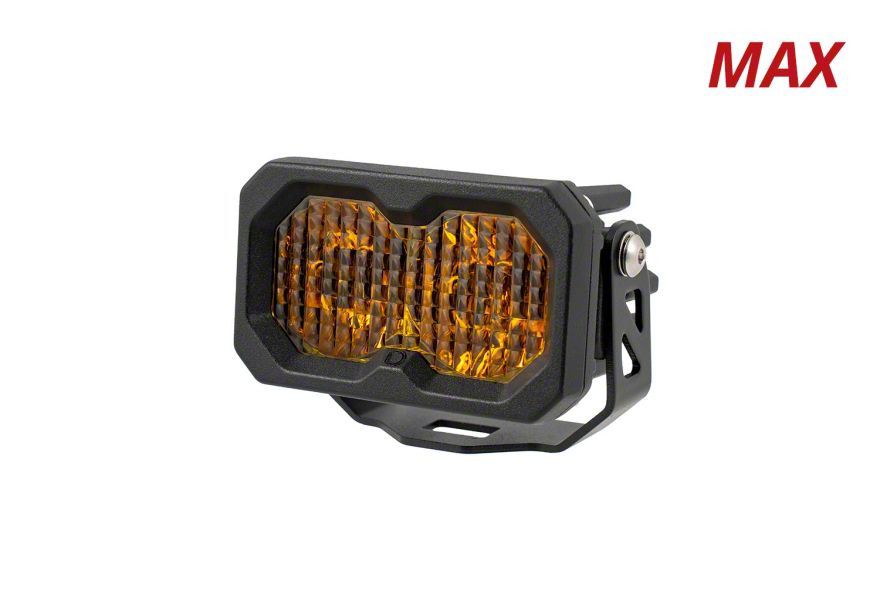

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)

Item FB72056
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And Max Power Levels (Up To 3900 Lumens)
        • _x000D_
      • Customizable Mounting To Dial In Your Setup
        • _x000D_
      • Link Multiple Pods With CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Raw Lumens: 3,960 Lm
        • _x000D_
      • Color Temp (CCT): 3000K
        • _x000D_
      • Power (Watts): Main Beam 30, Backlight 0.38
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature: -40C To 85C (-40F To 185F)
        • _x000D_
      • LED Emitter: Osram Boost HX
        • _x000D_
      • Connector(s): Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Product Dimensions (In): 2 X 3.3 X 2.4
        • _x000D_
      • Unit Weight (Lb): 0.55
        • _x000D_
      • Product Weight (Lb): 1.4
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE LED LIGHT. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Flood provides intense, focused illumination ideal for various automotive applications. Designed for tight mounting spots, it delivers bright, efficient lighting with up to 95% more power than the previous generation, making it essential for enhanced visibility and safety in off-road and on-road conditions.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. This LED pod features a durable aluminum casting with a powder-coated finish to improve heat dissipation and resist corrosion. It uses a polycarbonate lens for clarity and impact resistance and includes a robust rubber gasket to ensure waterproof and dustproof performance. The sleek, compact design blends functionality with rugged aesthetics.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward, requiring basic tools and no complex drilling in most cases. The pod includes a mounting bracket with adjustable height and angle to allow precise aiming and fitment.

      _x000D__x000D_

      WARRANTY. This product includes a limited lifetime warranty, reflecting its high-quality construction and reliability.

      _x000D__x000D_

      APPLICATION. Fits universal; some adaptation may be required to accommodate different vehicle configurations and mounting locations.

      Diode Dynamics DD8117S

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
