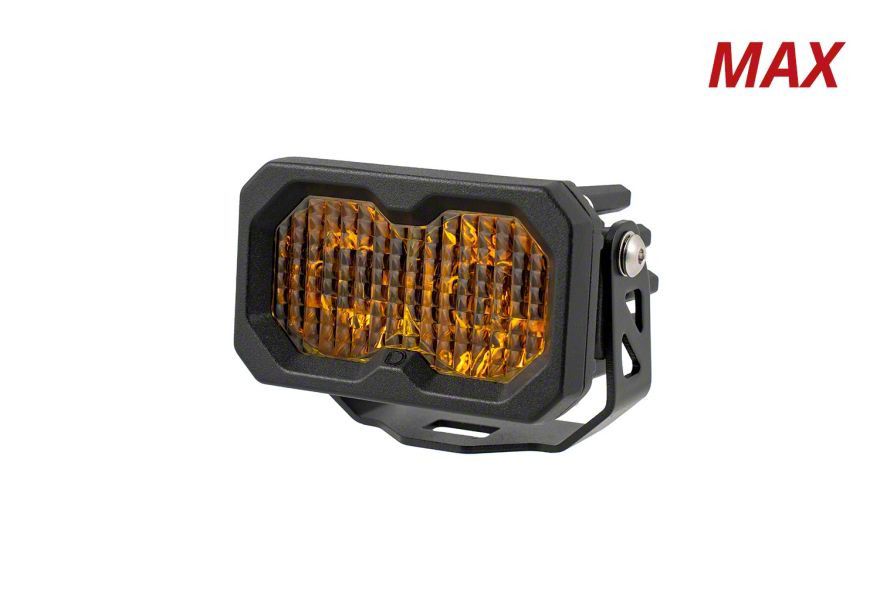

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item FB72092
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens Output of 3,960 _x000D_
- Color Temperature of 3000K _x000D_
- Power Consumption Main Beam: 30 Watts, Backlight: 0.38 Watts _x000D_
- Operating Voltage Between 9 and 30 Volts _x000D_
- Current Draw at 12.8V: Main Beam 2.3 Amps, Backlight 0.03 Amps _x000D_
- Polarity Specific Connections _x000D_
- Operating Temperature Range From -40°C to 85°C (-40°F to 185°F) _x000D_
- Utilizes Osram Boost HX LED Emitter _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Constructed from Polycarbonate Lens, Aluminum Casting, and Rubber Gasket _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- Meets SAE J575 Durability Standards _x000D_
- IP69K Waterproof Rating with High-Pressure Resistance _x000D_
- Product Dimensions: 2" x 3.3" x 2.4" _x000D_
- Unit Weight 0.55 lbs; Product Weight 1.4 lbs _x000D_
- Includes One LED Pod, One Deutsch-Style Wire Pigtail, Mounting Bracket and Hardware _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Driving delivers exceptional illumination in a compact form factor. Designed for tight mounting spots, it provides powerful 3900-lumen output and precise beam control, making it ideal for both off-road and on-road applications where enhanced visibility is crucial.
_x000D__x000D_Construction and Appearance. This LED pod features a durable polycarbonate lens combined with a robust aluminum casting finished in a powdercoat to optimize heat dissipation and withstand harsh environments. The design incorporates an amber backlight accent that fully illuminates the TIR optic, offering a distinct and modern look while maintaining rugged resilience.
_x000D__x000D_Installation. Installation is straightforward and can typically be completed within 30 to 60 minutes using basic tools. The mounting bracket allows customizable positioning without the need for extensive drilling, facilitating a precise and secure fit in various vehicle locations.
_x000D__x000D_Warranty. Includes a limited lifetime warranty, providing long-term assurance of quality and performance.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required to accommodate specific mounting configurations or vehicle setups.
